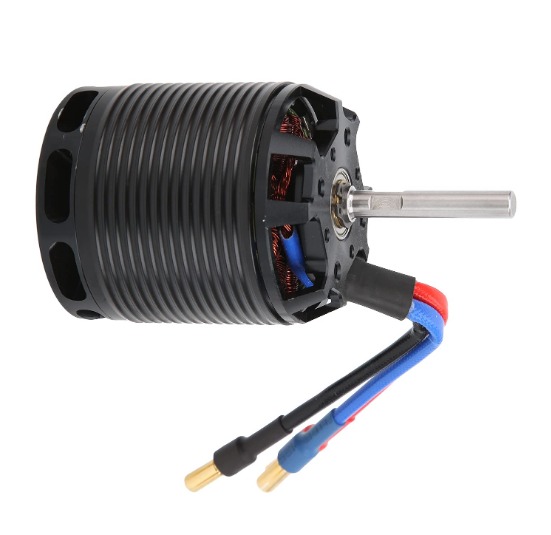

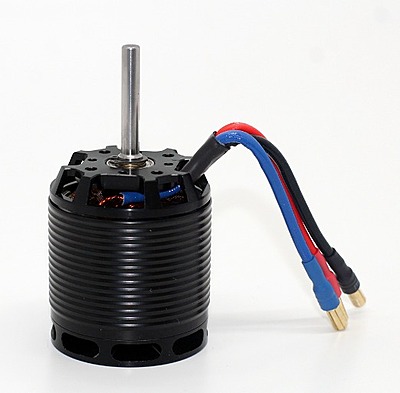

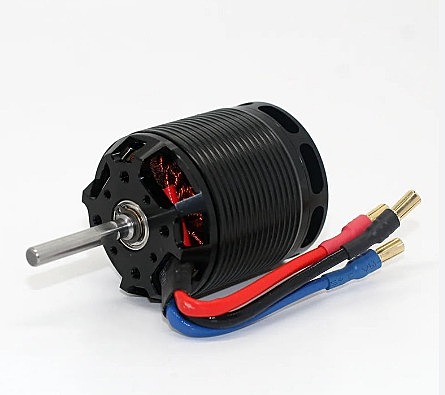

5065 270KV 1550W BLDC Electric Skateboard Motor

The 5065 270KV 1550W BLDC Electric Skateboard Motor features an Internal PCB with 120 Degree Hall Effect Sensors, ensuring precise control and responsiveness.

Additionally, with the flexibility to be used with or without a sensor, sensorless operation is the most common choice for riders. Moreover, to optimize performance with VESC, VESC Sensor wires are required.

Furthermore, crafted from high-quality Lamination Japan steel, the stator ensures durability and efficiency. Equipped with 16awg high strand silicone wire and 4.0mm gold bullet connectors, this motor guarantees reliable power delivery.

Additionally, both sensor and sensorless modes are supported, offering versatility to accommodate various riding preferences.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.



Specs:

Max Power: 1550 Watts

Max Current: 80 Amps

No-load Current: 1A 10V

Max Volts: 41.5V

Lipo: 3S-8S (11.1V-29.6V)

Max Torque: 4Nm

Motor Resistance: 64mΩ

Weight: 0.99 lb / 0.45 kg

Motor length: 65mm

Motor diameter: 50mm

Shaft: Diameter 8mm, 20mm

Length: 3x3x15mm keyway slot.

Motor Wire: 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male.

Number of poles: 14

 Wire configuration:

Blue（Heat shrinkable film） = A

Black （Heat shrinkable film）= B

Yellow （Heat shrinkable film）= C



Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch



Internal PCB with 120 Degree Hall Effect Sensors.

Motor can be used with or without a sensor. Sensorless operation is most common.

VESC Sensor wires required to use with VESC.

 Wire configuration:

Red = 5v

Blue = A

Yellow = C

Green = B

Black = GND

White =Temp



What's Our Product Features:

Stator: Lamination Japan steel

16awg high strand silicone wire with 4.0mm gold bullet connectors.

Both support sensor and sensorless mode!
