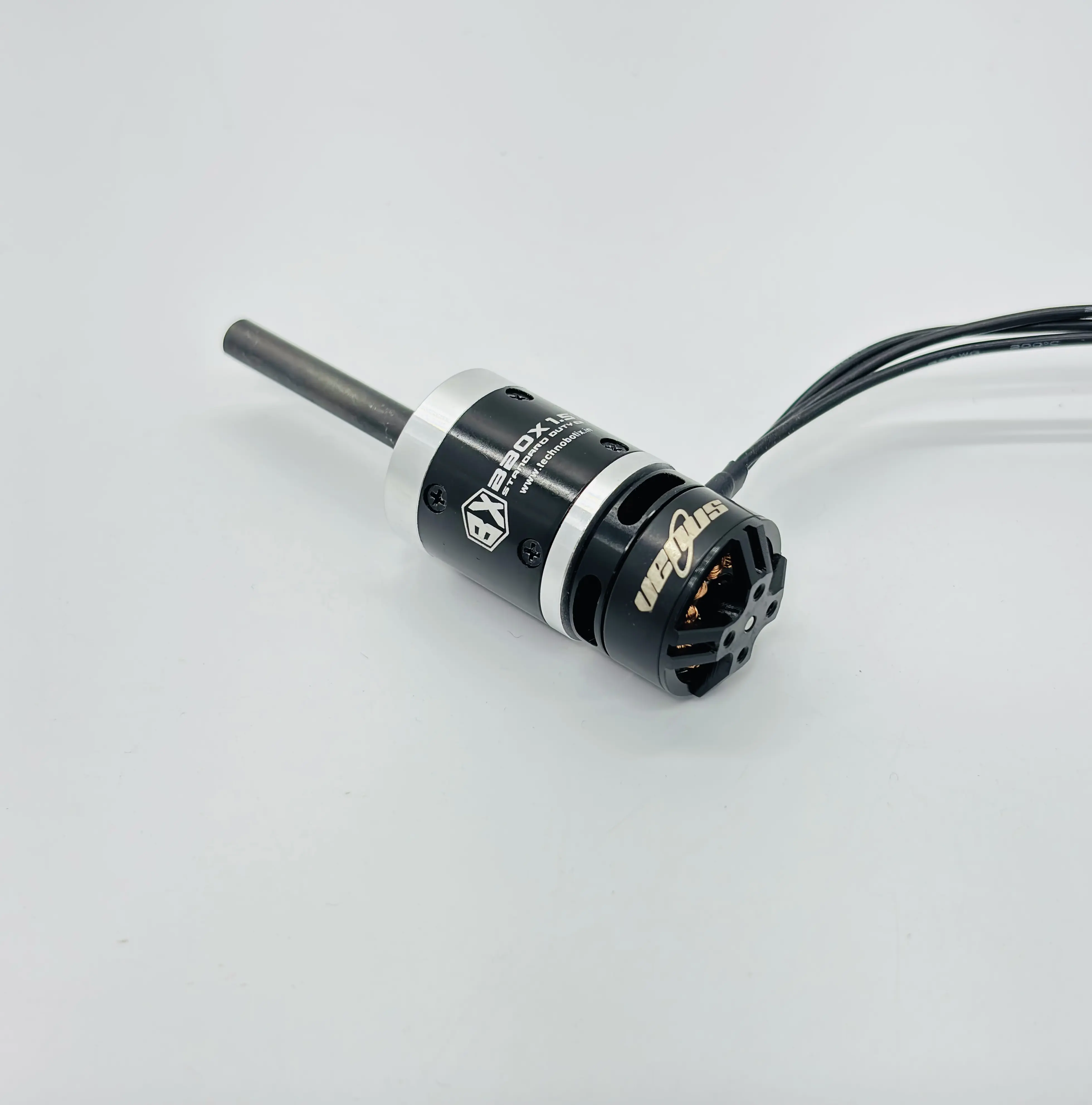

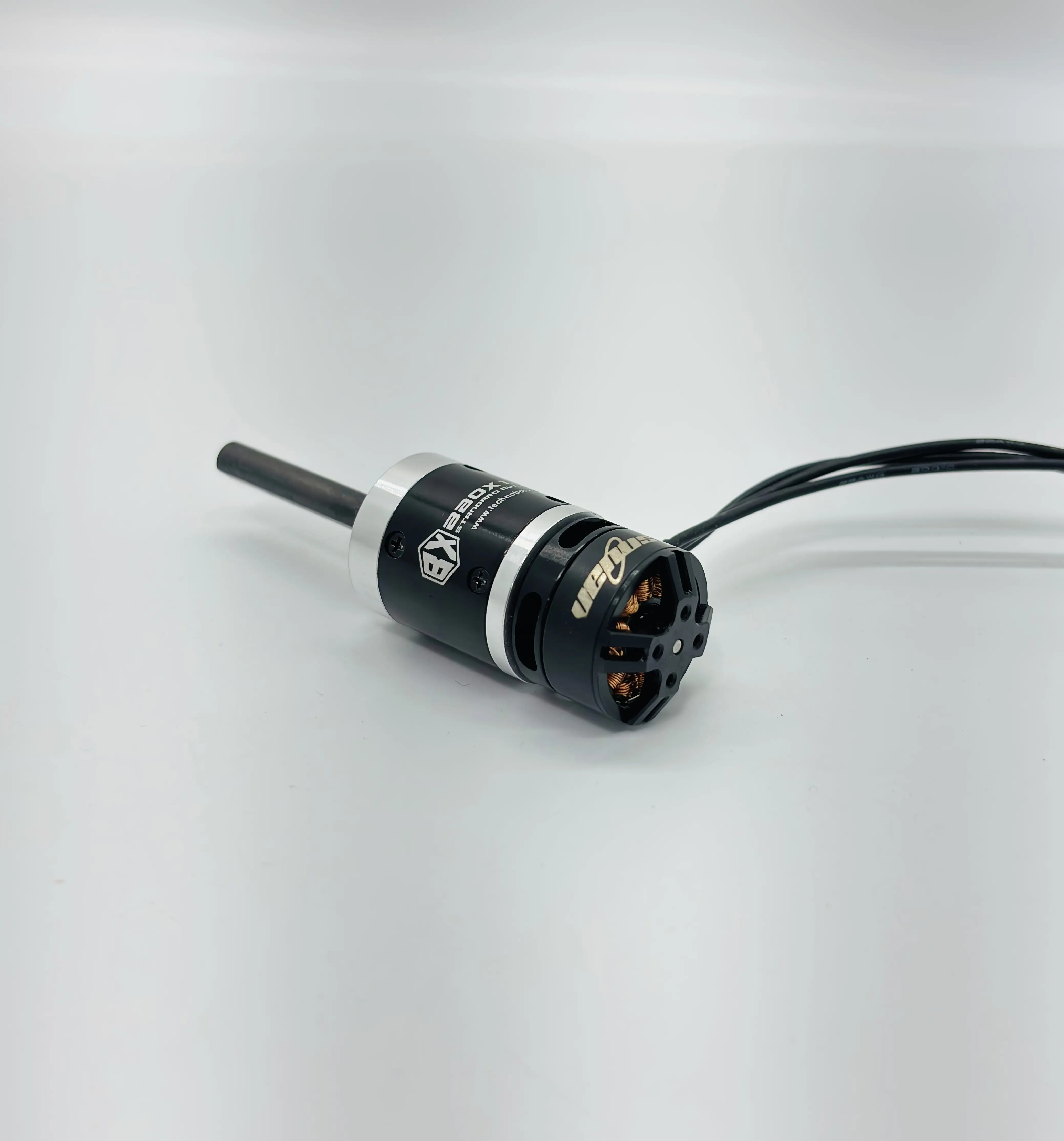

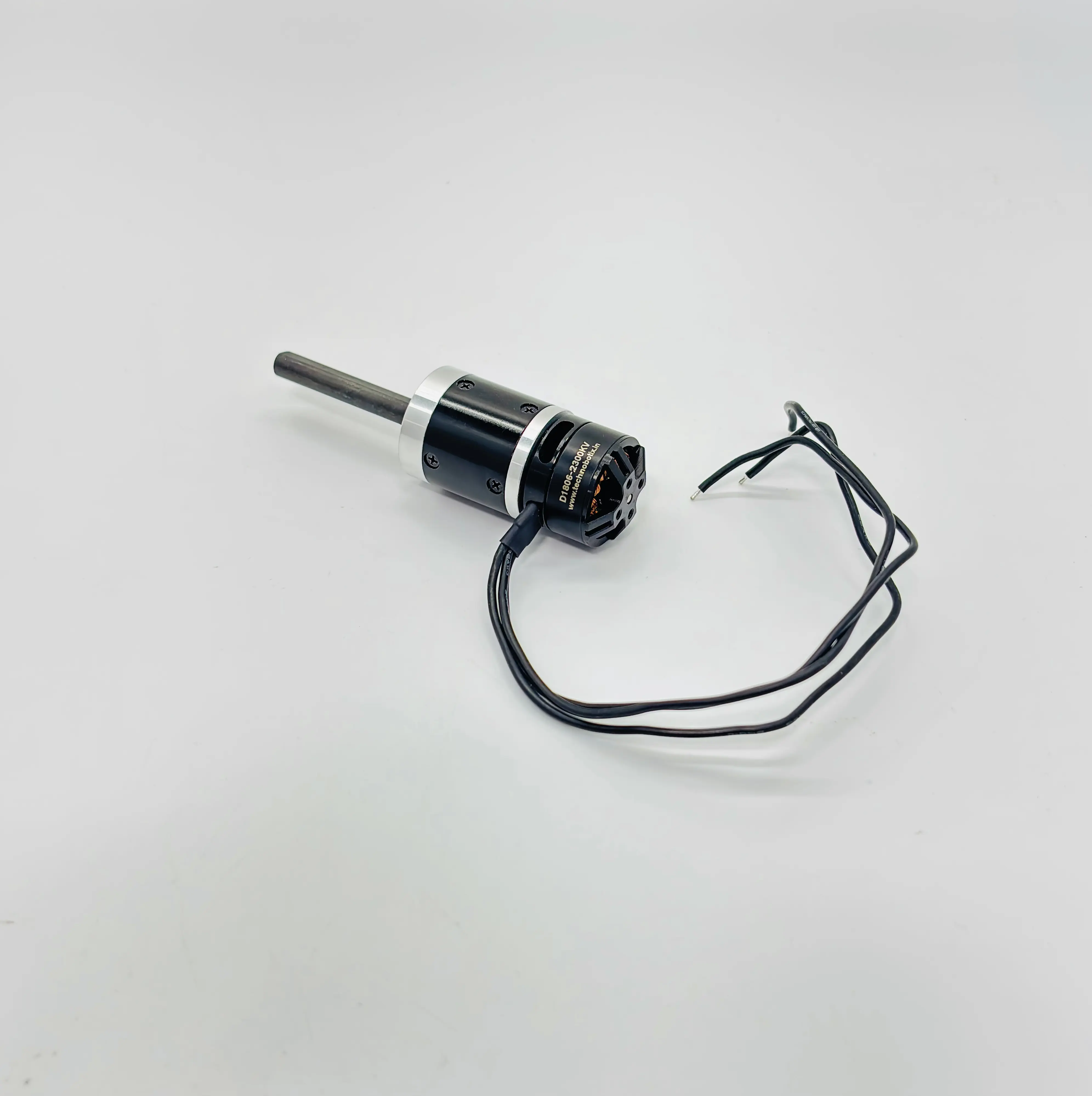

BBOX 1.5 Standrad Duty With venus 1806 BLDC Motor
Features:
27:1 alloy steel planetary gearbox for high torque and durability
10.24 kgf·cm torque, perfect for weapon or drive systems in 1.5kg bots
Compact size: 23×84.5mm, weight: 38g
Speed: 1057 RPM @12V, KV: 2300 for quick response
6mm steel shaft for solid and secure mounting
Efficient: 1.9A no-load current for controlled power draw
Combat-optimized for reliable performance under pressure
The BBOX 1.5 with Venus 1806 Geared Motoris a compact and reliable drive solution for 1.5kg combat bots. It features a 27:1 alloy steel planetary gearbox, delivering 10.24 kgf·cm torque in a lightweight 23×84.5mm body.
With 1057 RPM @12V and a KV of 2300, it offers quick acceleration and control. A 6mm shaft ensures firm mounting, while the 1.9A no-load current keeps it efficient during intense matches. Designed for performance and endurance in battle.
Specs:
Type: Planetary
Reduction: 27:1
Stages: 2

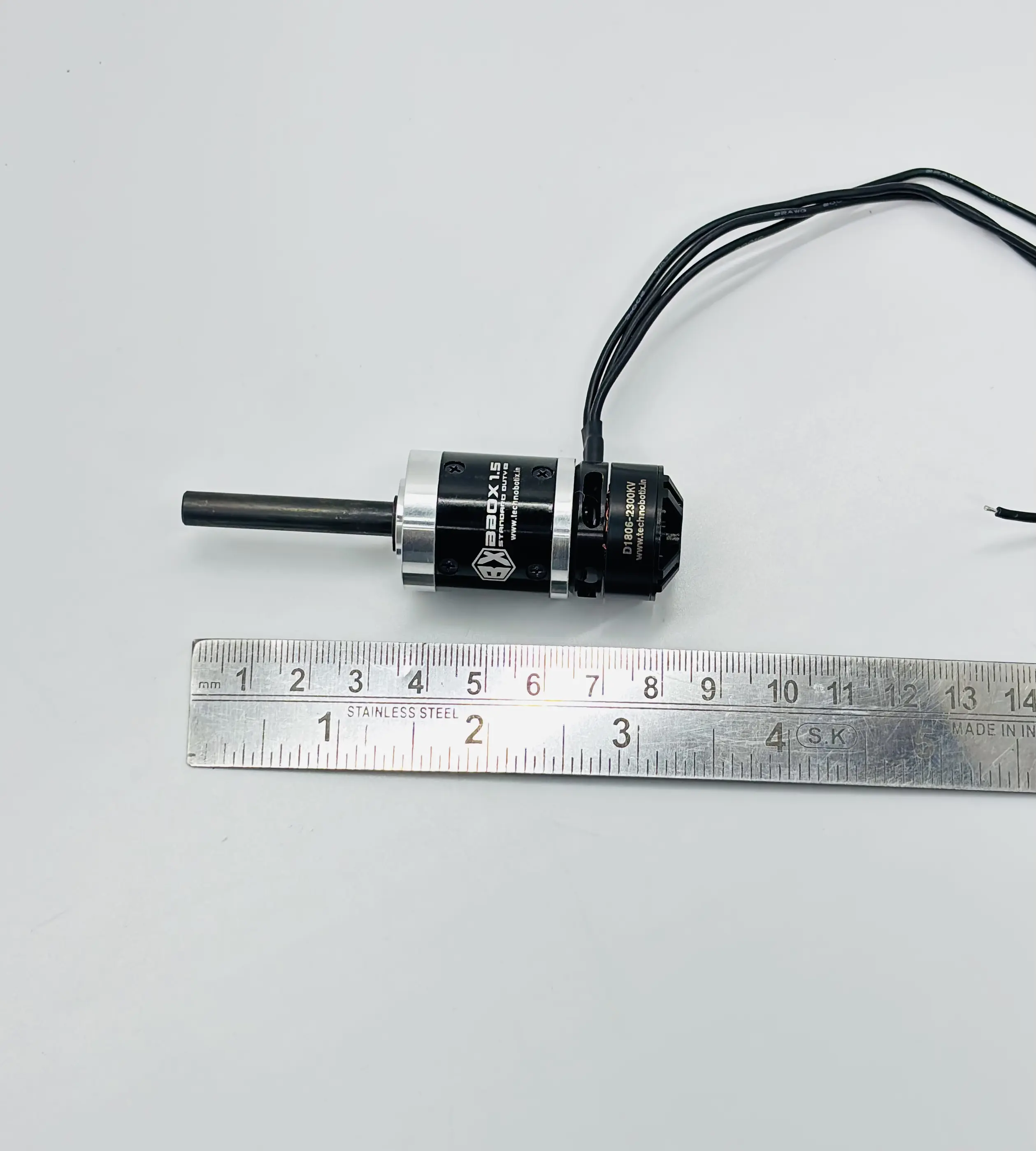

Size (mm): 23 x 84.5
Weight (g): 38
Torque: 10.24 kgf.cm
Planet/Sun Gear Material: Alloy Steel
Shaft (mm): 6
Voltage (v): 12
No load current (A): 1.9
No load RPM: 1057
Motor KV: 2300
Package Includes:
1 x BBOX 1.5 Standrad Duty With Venus 1806 BLDC Motor
