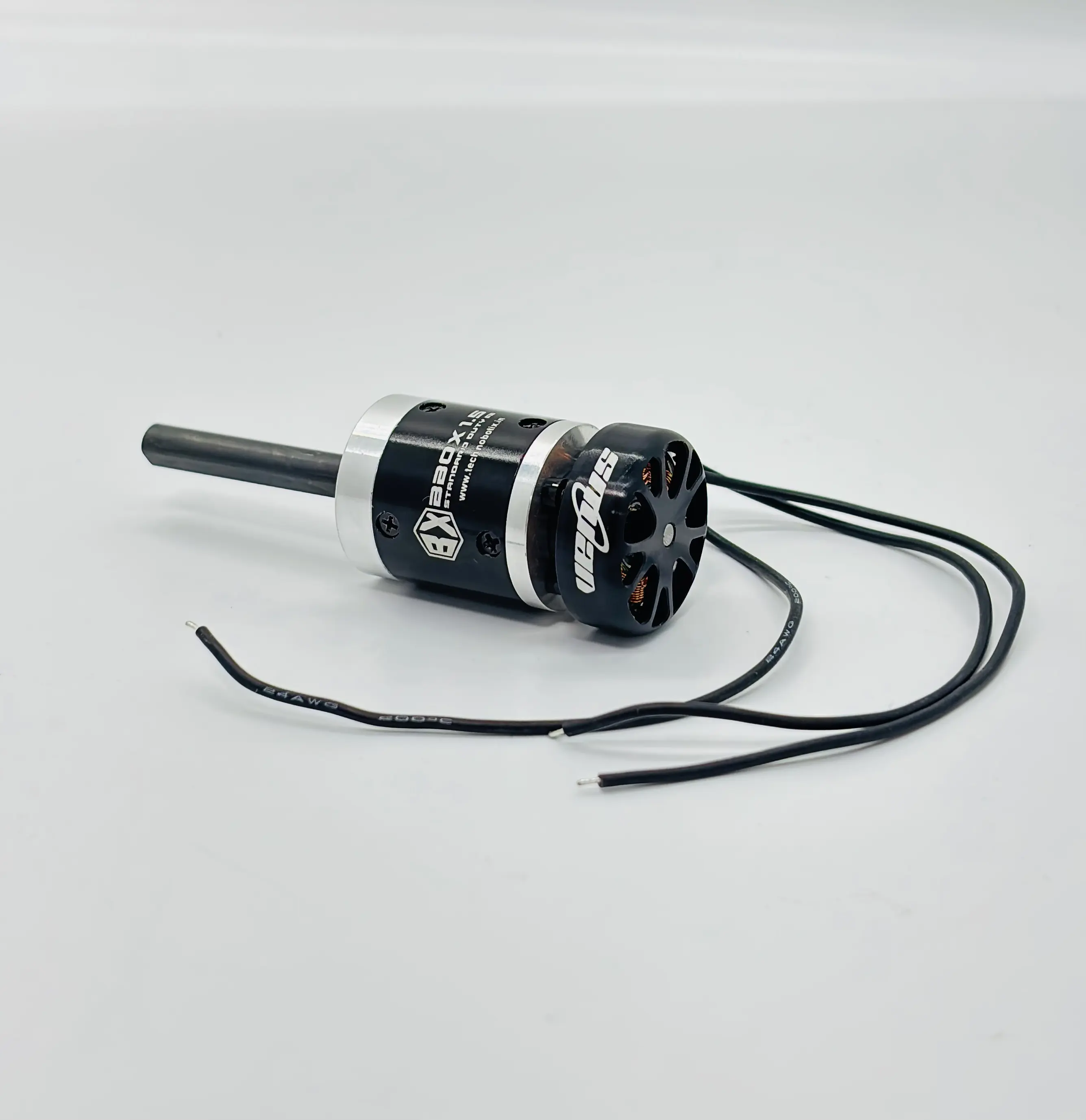

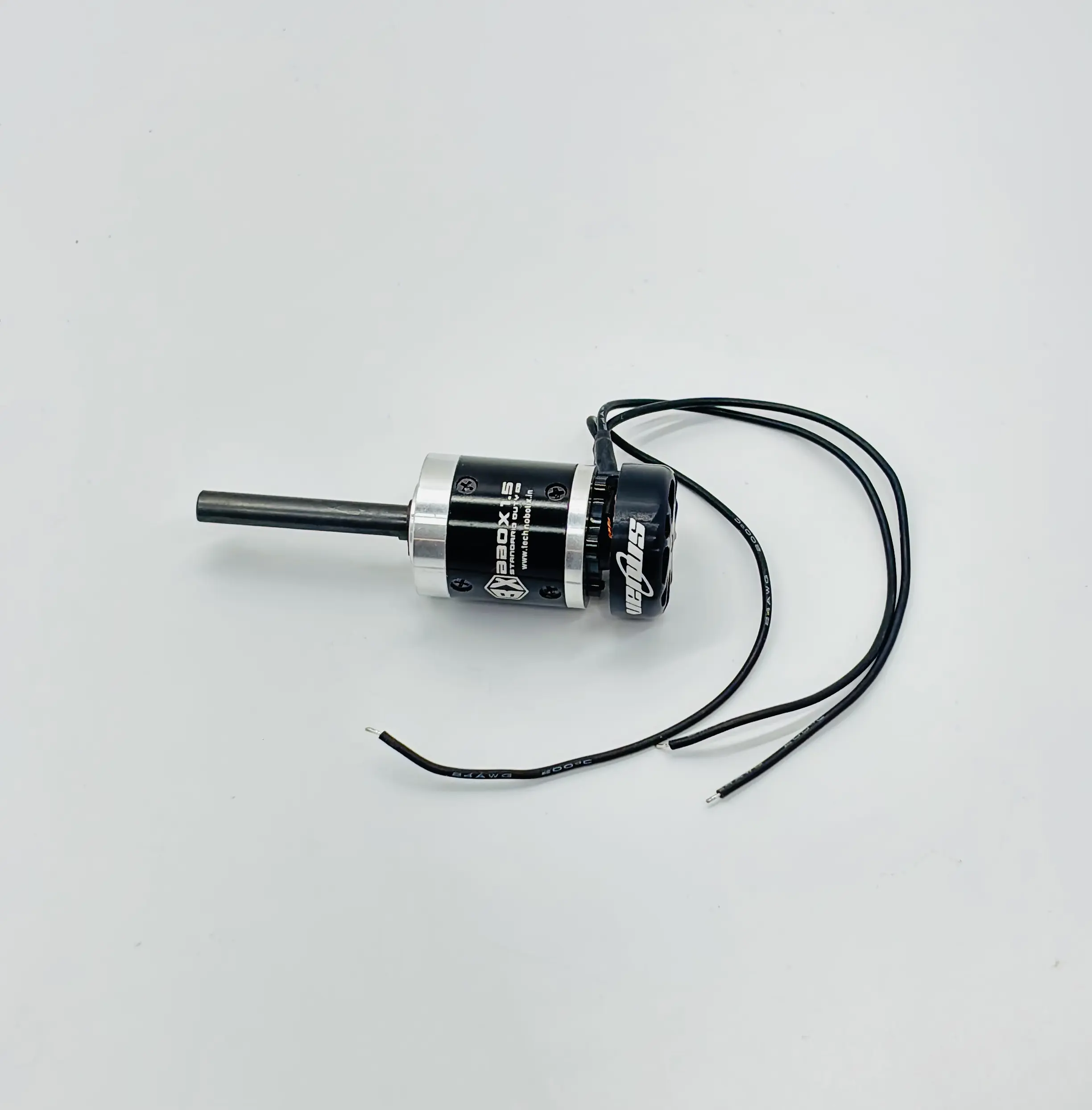

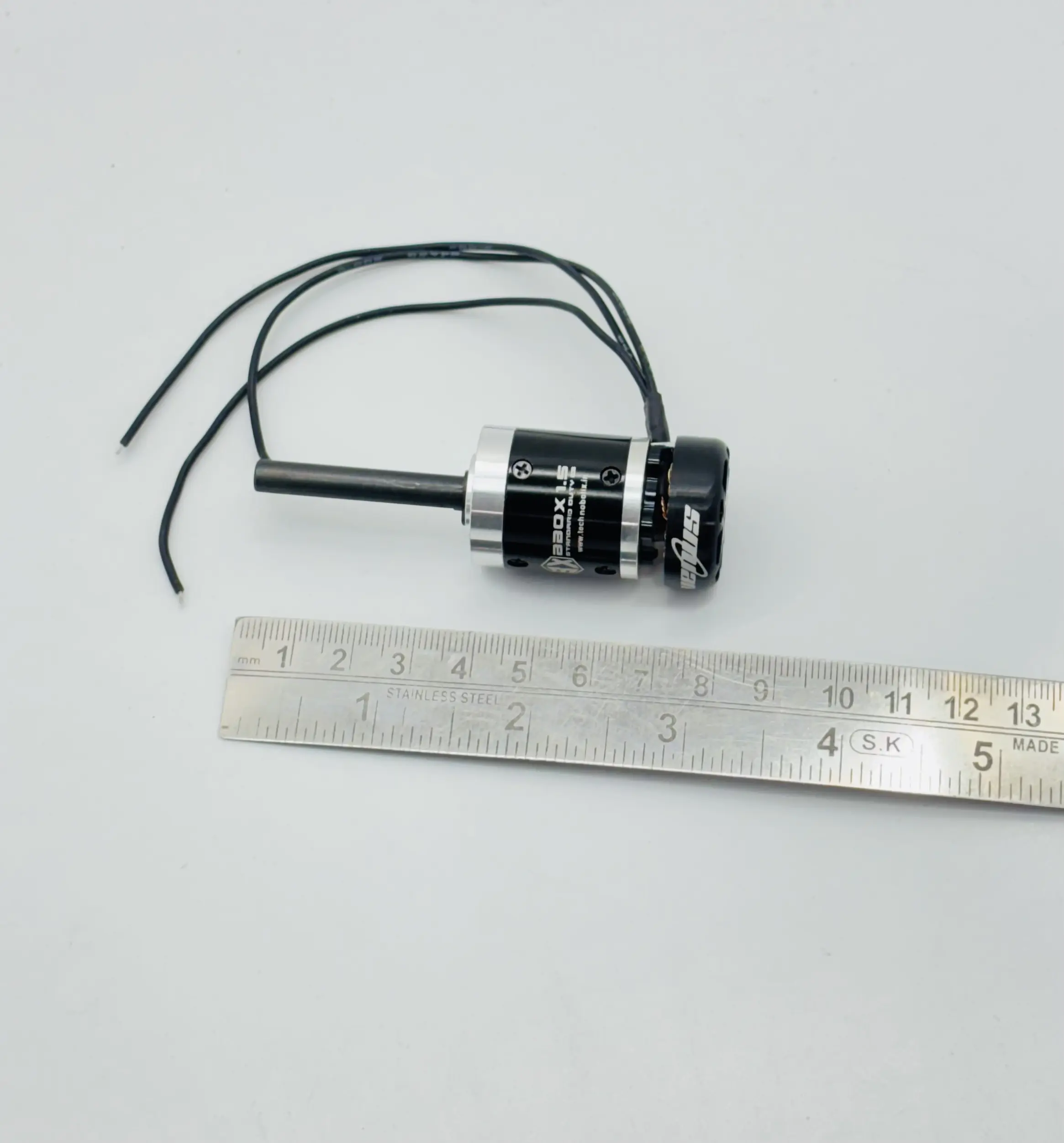

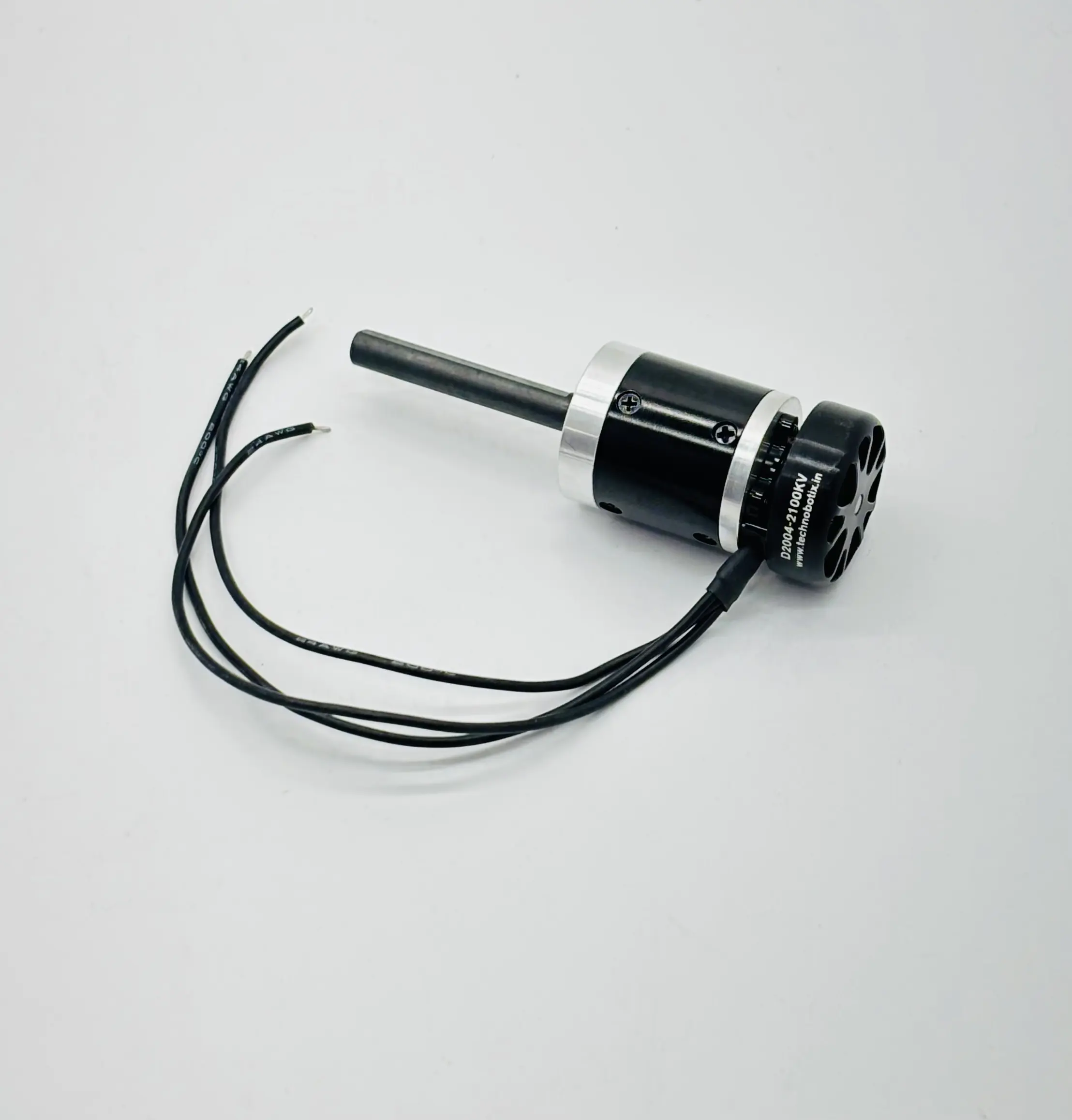

BBOX 1.5 Standrad Duty With venus 2004 BLDC Motor
₹10.00
Out of stock
Features:
19:1 alloy steel planetary gearbox for durability
- 11.3 kgf·cm torque, ideal for 1.5kg combat bots
- Compact: 25×95.7mm, lightweight: 37g
- Fast: 1268 RPM @12V, KV: 2100
- 6mm shaft for strong mounting
- Low 1.9A no-load current for efficiency
Combat-ready performance and reliability
Price Info
Price including GST Product Details
The BBOX 1.5 Standard Duty with Venus 2004 BLDC Motor is built for 1.5kg combat robots, combining power and precision. It features a robust 19:1 alloy steel planetary gearbox, delivering 11.3 kgf·cm torque in a compact 25×95.7mm body weighing just 37g. With a high-speed output of 1268 RPM at 12V and a KV rating of 2100, it ensures fast and aggressive movement. The 6mm shaft provides reliable wheel mounting, while the 1.9A no-load current keeps it efficient. A perfect match for competitive bot builders seeking durability and performance.
Specs:
Type: Planetary
Reduction: 19:1
Stages: 2
Size (mm): 25 x 95.7
Weight (g): 37
Torque: 11.3 kgf.cm
Planet/Sun Gear Material: Alloy Steel
Shaft (mm): 6
Voltage (v): 12
No load current (A): 1.9
No load RPM: 1268
Motor KV: 2100
Package Includes:
1 x BBOX 1.5 Standrad Duty with Venus 2004 BLDC Motor
