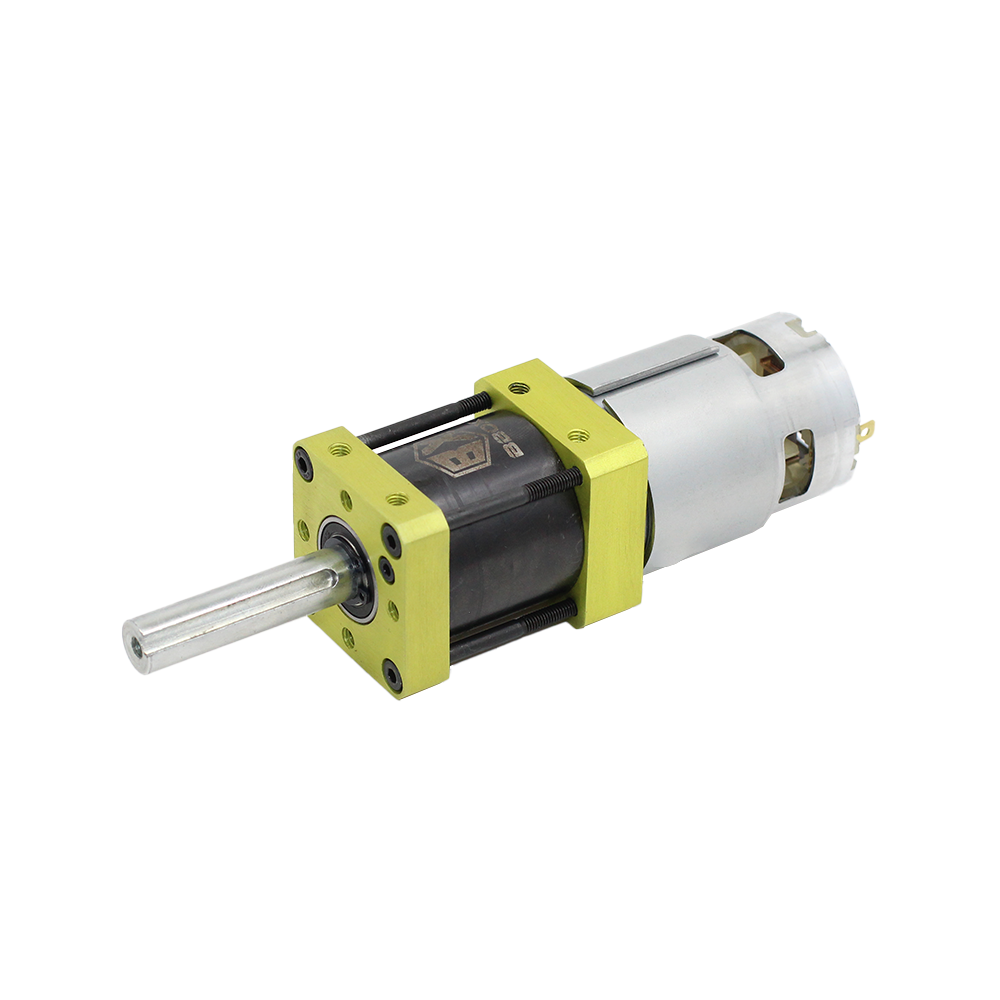

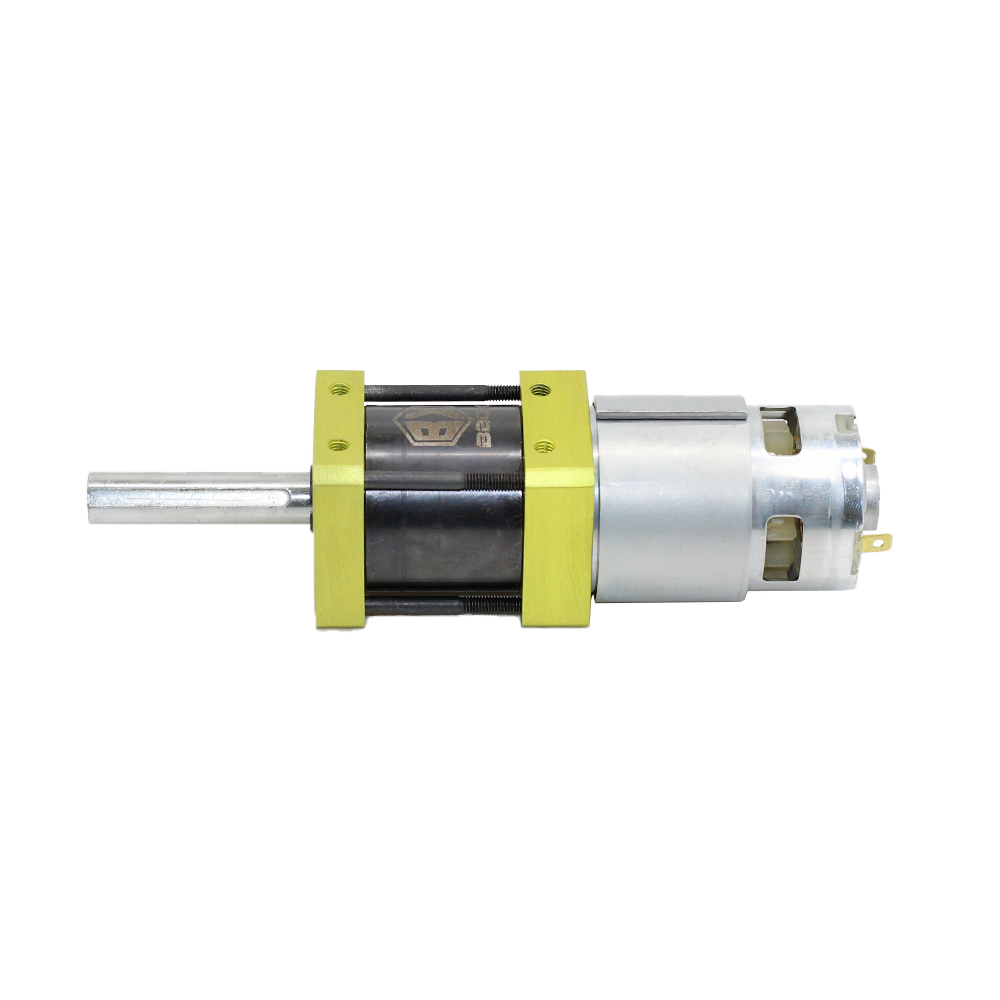

BBOX 15 Gearbox With Mabuchi 775 DC Brushed Geared Motor- Pro
₹5,999.00
Features:
High Speed
High Power
Large Torque
Voltage Range
Reliable Brand
Price Info
Price including GST Choose Quantity
Product Details
The BBOX 15 V2 WITH MABUCHI 775 DC BRUSHED MOTOR, features a reduction ratio of 16:1 and is constructed from cold rolled steel, ensuring durability and reliability.
Moreover, it operates with a no-load speed of 1125 RPM and is designed for a nominal voltage of 18 V DC, with a maximum voltage capacity of 20 V DC.
The motor delivers a stall torque of 1.21 Nm and a stall current of 130 A, making it suitable for applications requiring high torque. Furthermore, it weighs 833 grams and has compact dimensions of 44x44 mm, with a total length of 140 mm.
Lastly, the motor includes a shaft with a diameter of 12 mm, available in lengths of 35 mm or 50 mm, and features a keyway of 4x2 mm. The shaft end is tapped with M4x10 mm threads, and the unit is designed with 4-M5x10 mm mounting holes for secure installation.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Type: Planetary
- Reduction ratio: 16:1
- Gear material: Cold rolled steel
- No Load Speed: 1125 RPM
- Nominal Voltage: 18 V DC
- Maximum Voltage: 20 V DC
- Stall Torque: 1.21 Nm
- Stall current: 130 A

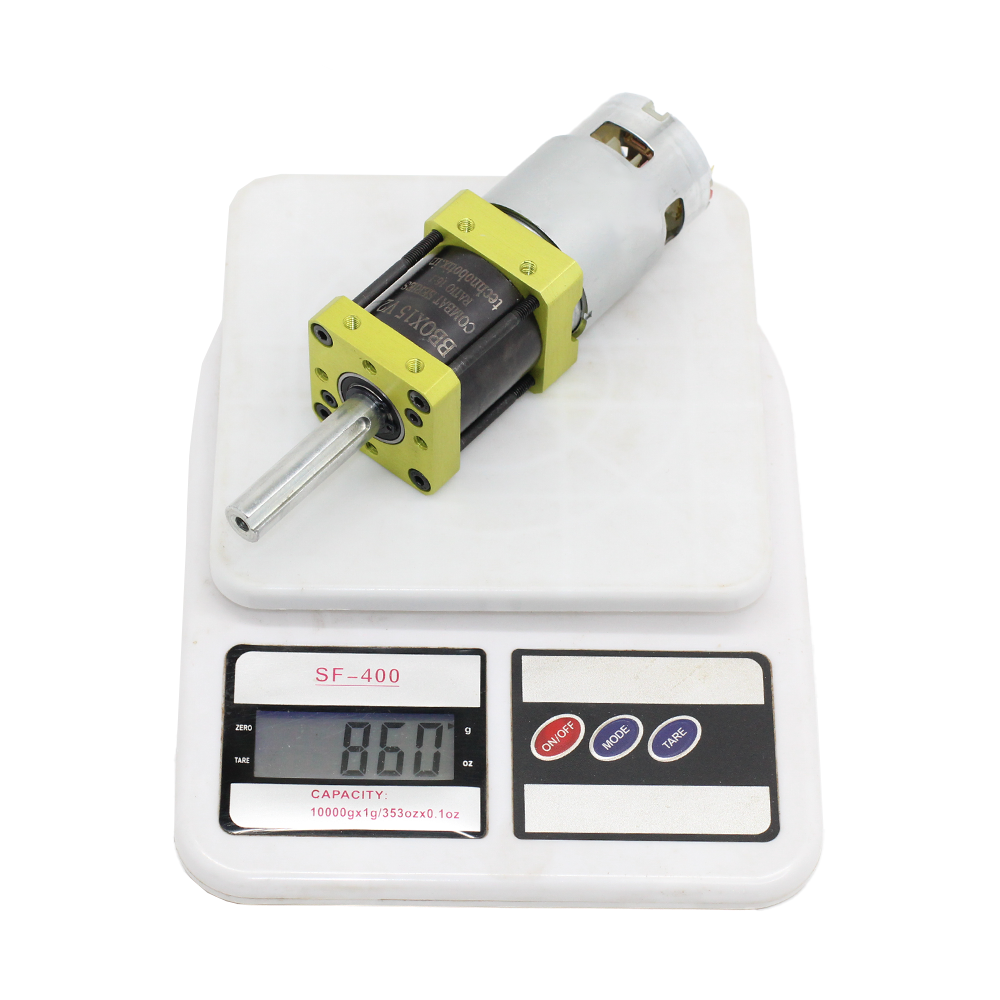

- Weight: 833 g
- Size: 44x44 mm
- Total Length: 140 mm
- Shaft Diameter: 12 mm
- Shaft Length: 35/50 mm
- Shaft Keyway: 4x2 mm
- Shaft End Tap: M4x10 mm
- Mounting Hole (x4): M5x10 mm
Drawings:

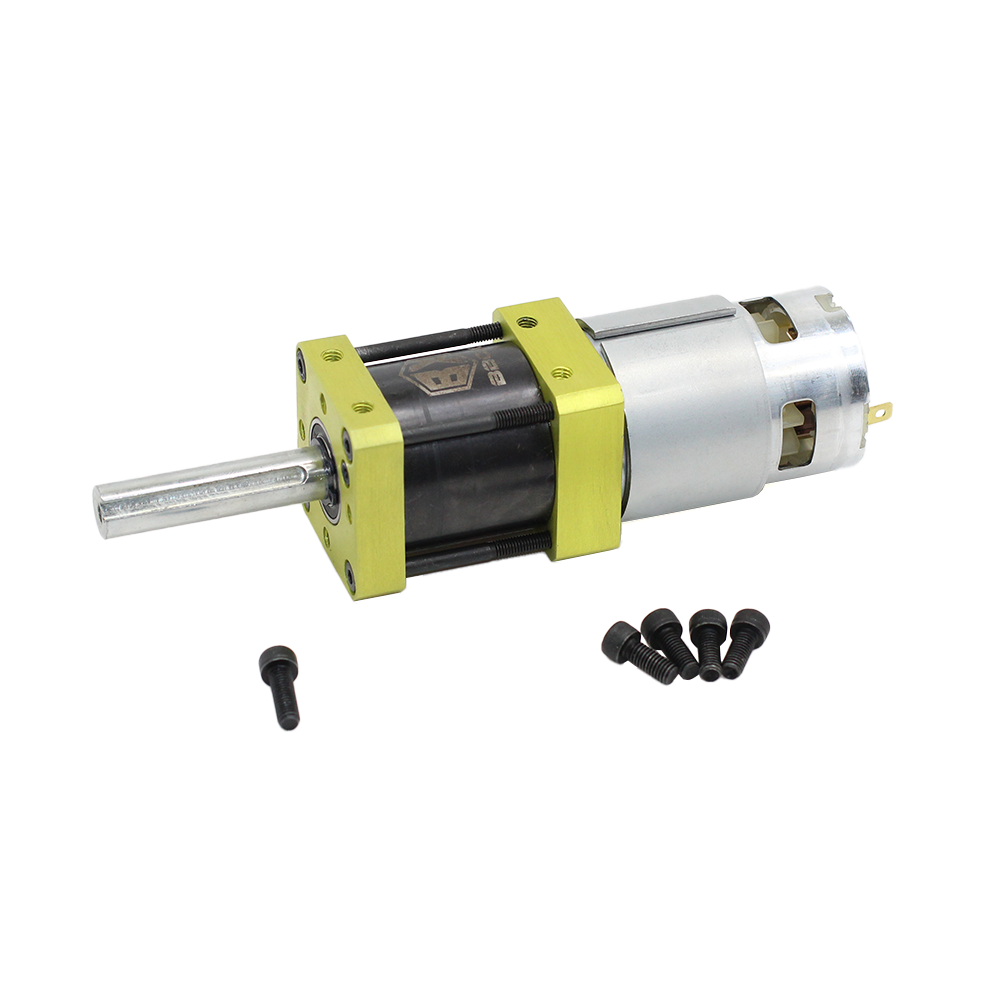

Package Includes:
1 x Bbox 15 V2 Combat Series Gearbox Only
1 x MABUCHI DC Motor 775 Powerful High Speed 24V Motor
5 x M5 Bolts
1 x M4 Machine Key
