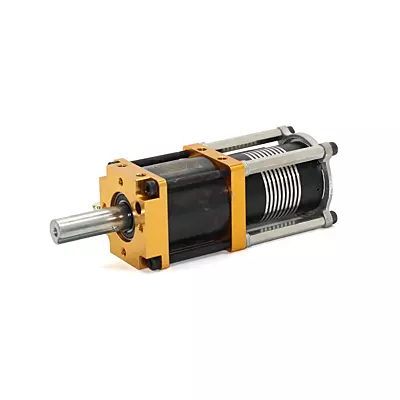

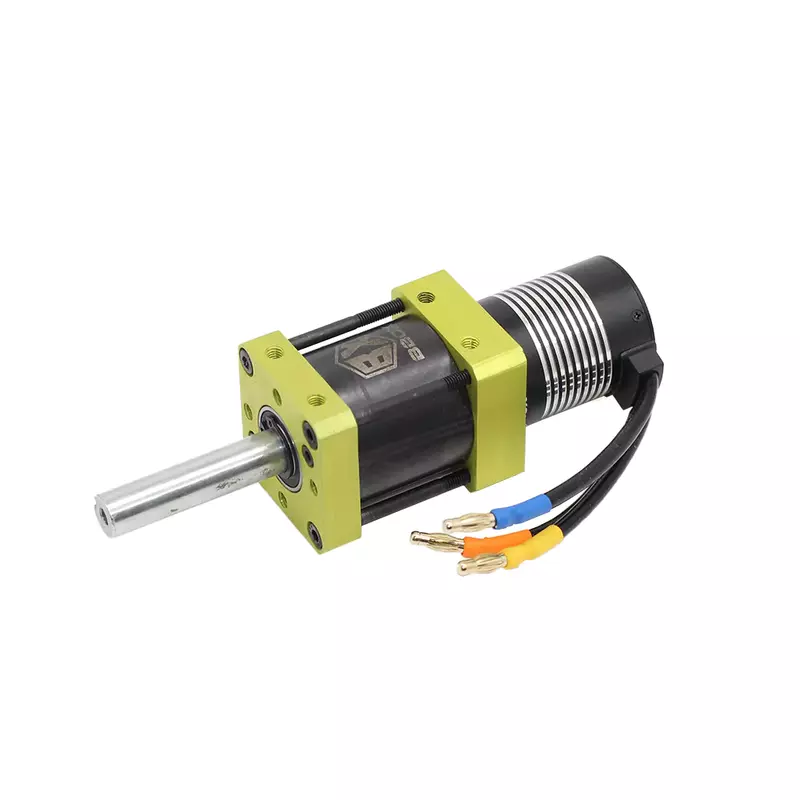

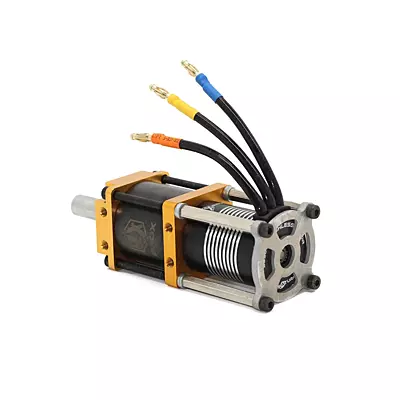

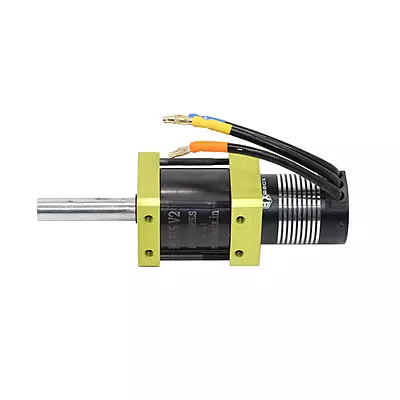

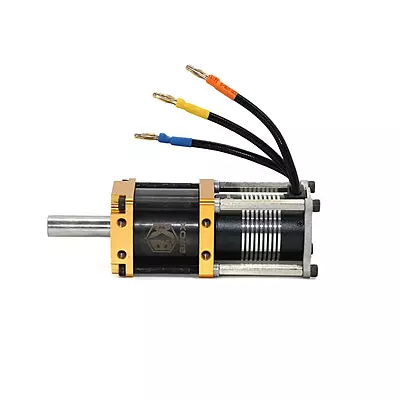

Bbox 15 with Bbox Saturn 3650 Brushless Sensorless In-Runner Geared Motor
Features:
- Brushless Design
- Planetary Gear Box
- Steel Gears
- Multiple Planet Gears
- Cold-rolled steel Gear Material
The BBOX 15 V2 with BBOX Saturn 3650 Inrunner BLDC Motor is a powerful and precise system designed for high-performance applications.
The planetary gear system, constructed with cold-rolled steel, provides exceptional durability and a reduction ratio of 16:1, offering the torque needed for demanding tasks.
With a motor KV of 1200 and a nominal voltage of 22V (operating within a range of up to 40V), the motor is engineered to handle up to 22A of current, delivering a maximum wattage of 484W.
The rotor features 4 poles for smooth operation, and the motor's no-load speed reaches 1650 RPM, ensuring efficient performance across various conditions.

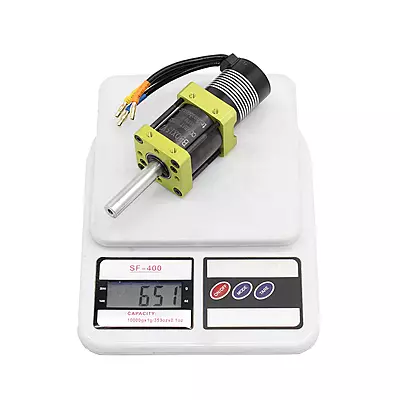

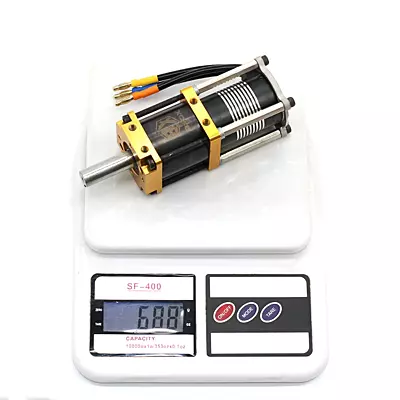

Weighing 634g and compact with a square dimension of 44x44 mm, the motor is designed for space-constrained environments while maintaining a sturdy build.
The shaft, with a diameter of 12 mm and available lengths of 35 mm or 50 mm, includes a keyway (4x2 mm) and an M5*10 mm end tap, ensuring easy integration with different assemblies.
With its low resistance of 0.034Ω and a no-load current of 1.2A, this motor system guarantees efficiency, reliability, and precision, making it an ideal choice for robotics, automation, and other high-performance engineering applications.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
Drawing:

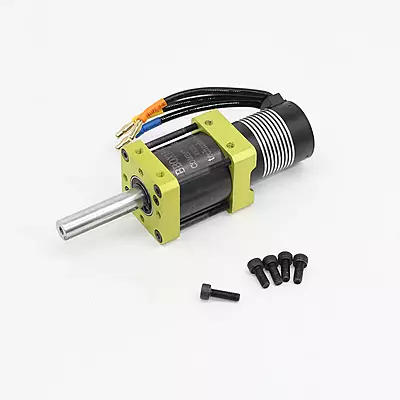

Package Includes:
1 x Bbox 15 V2 with Bbox Saturn 3650 Brushless Sensorless In-Runner Geared Motor
5 x M5 Bolts
1 x M4 Machine Key
1 x Tail Support
