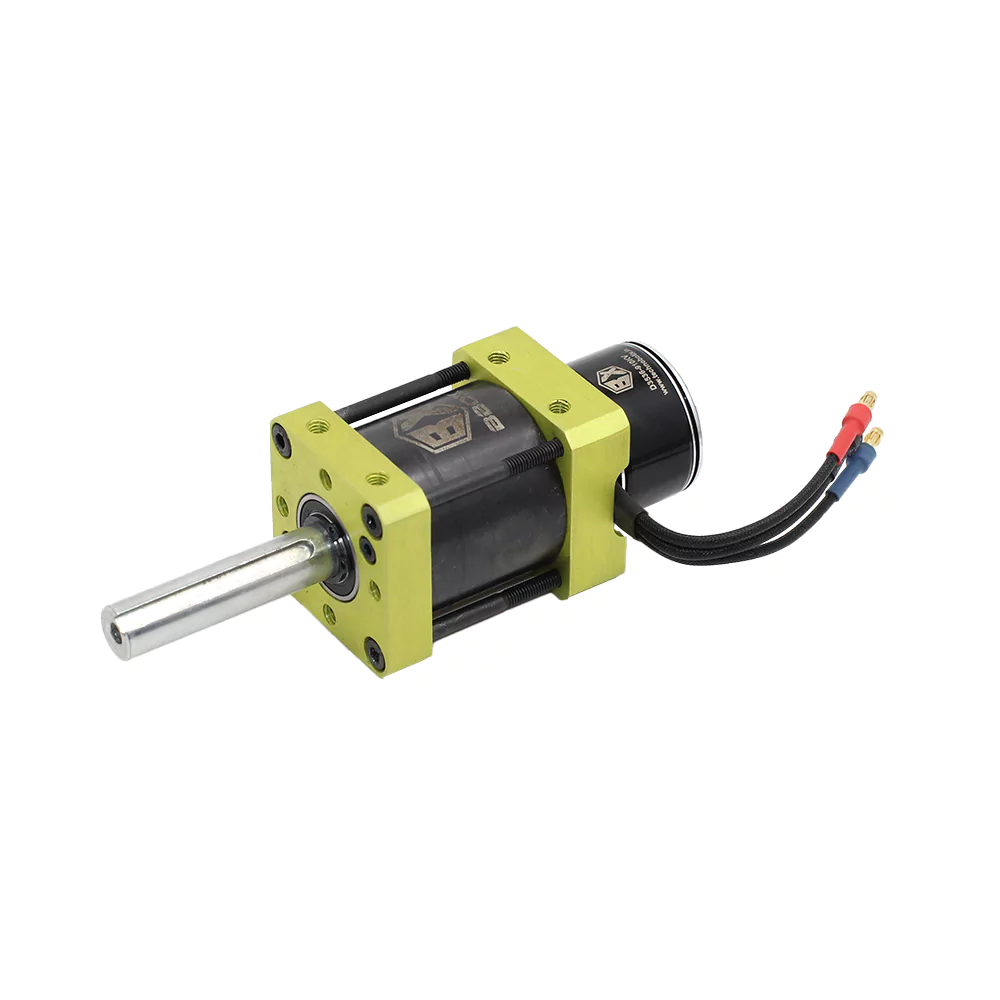

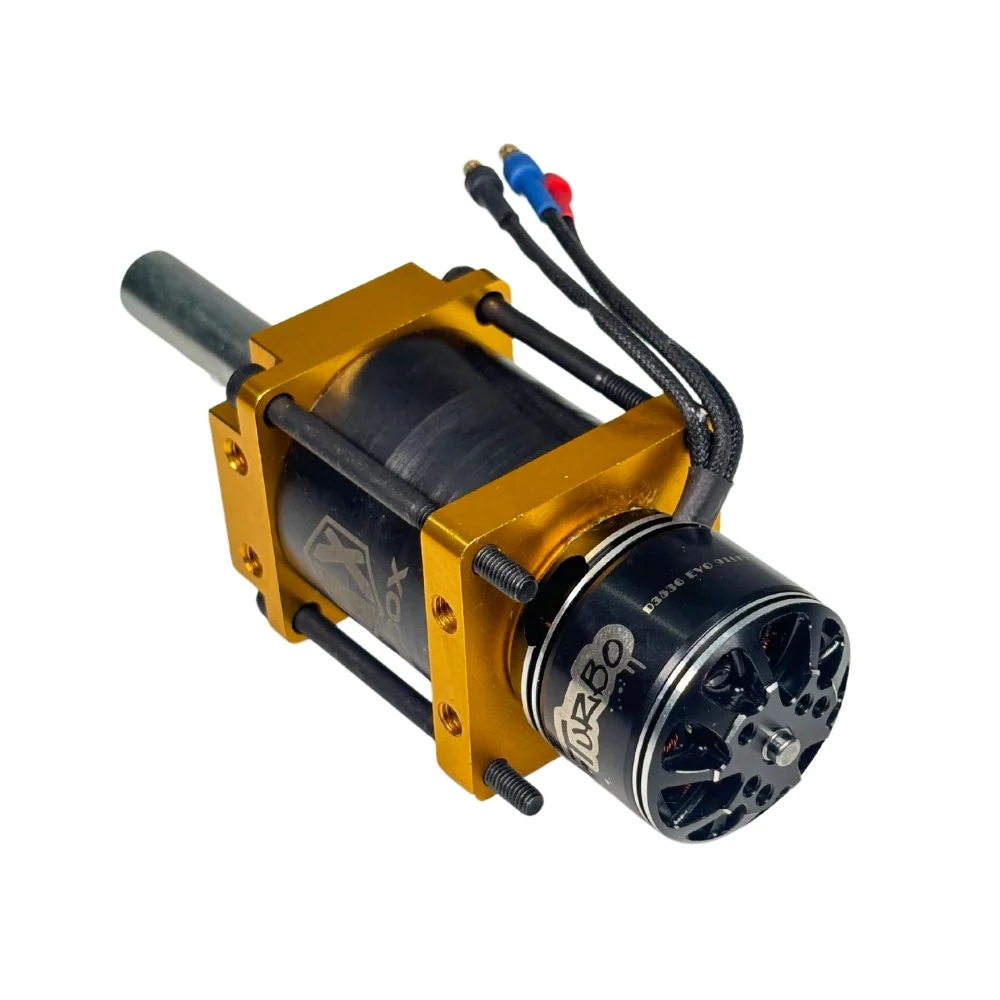

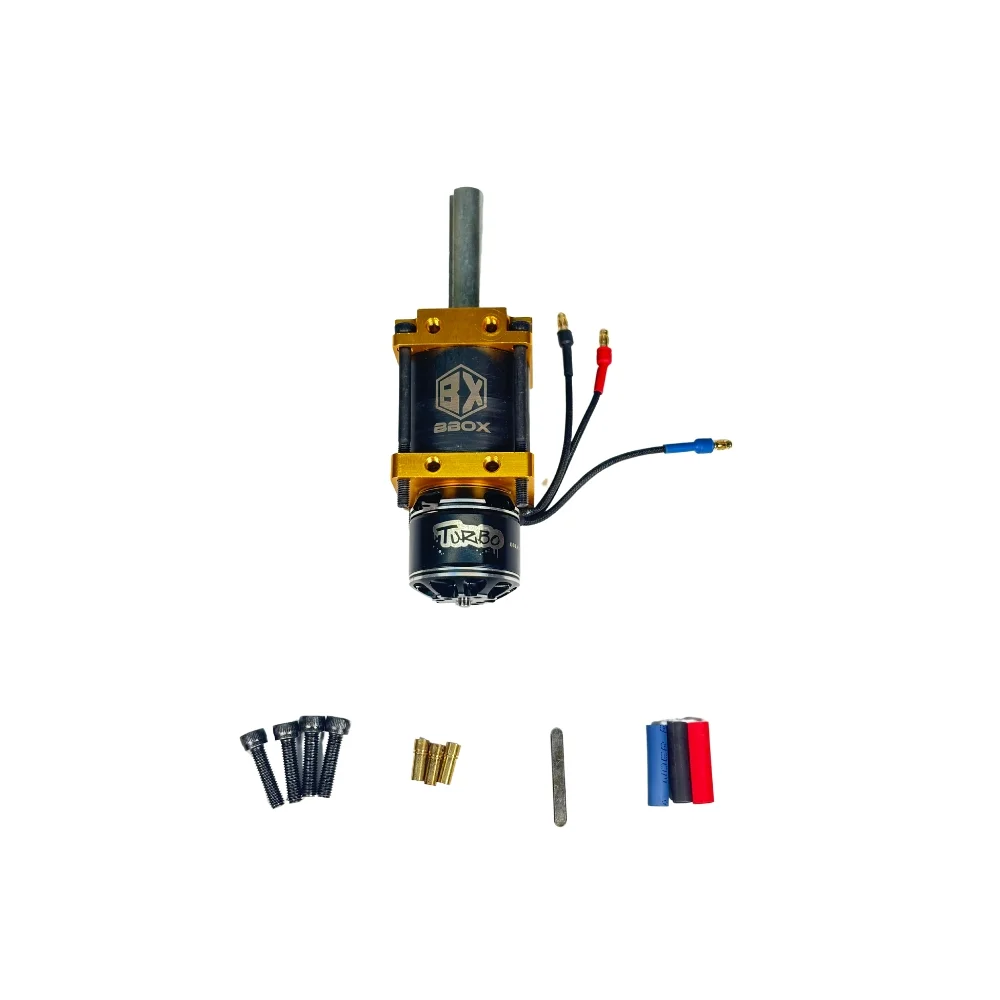

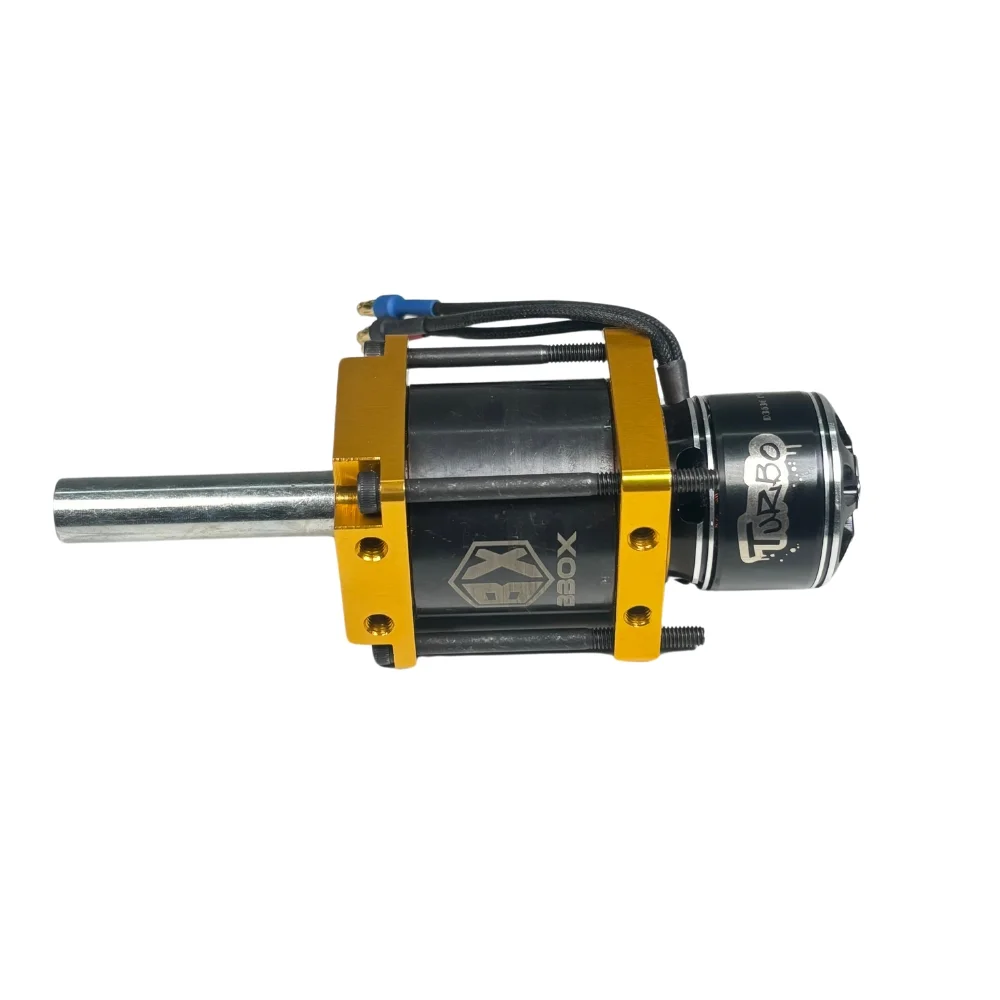

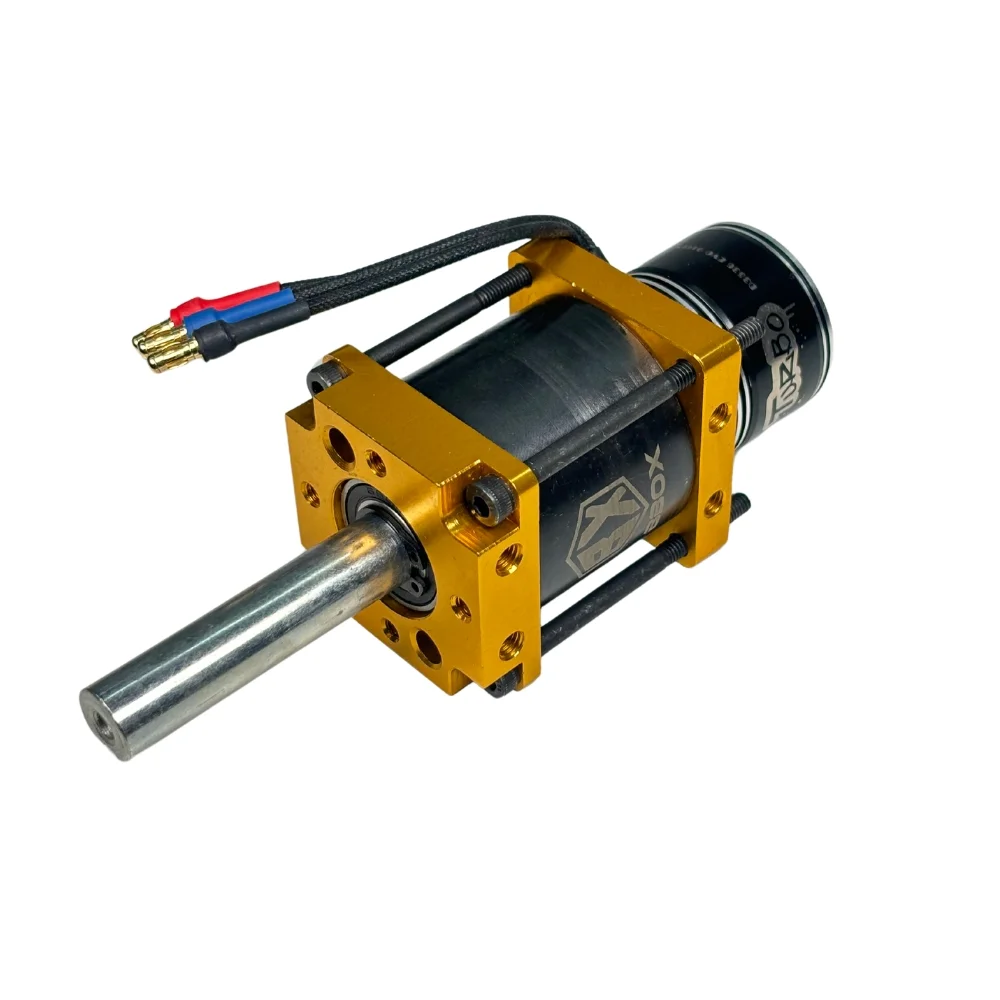

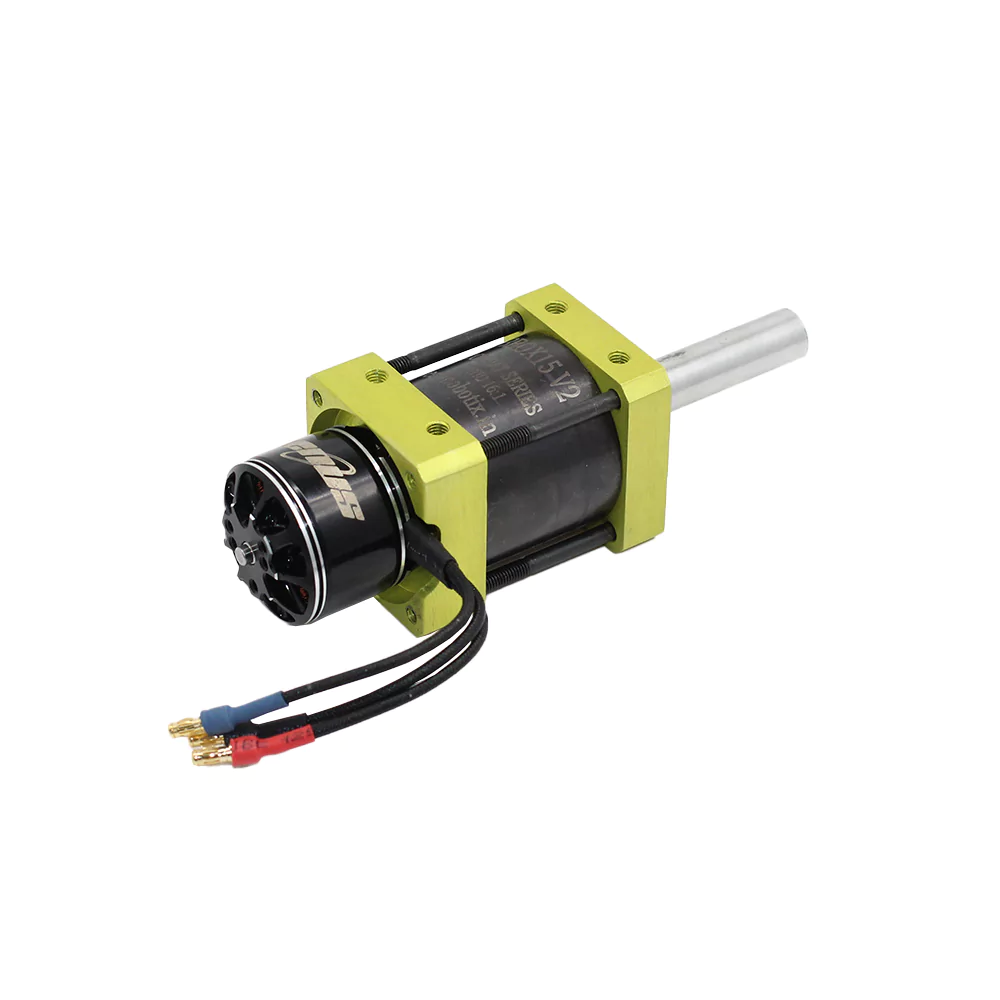

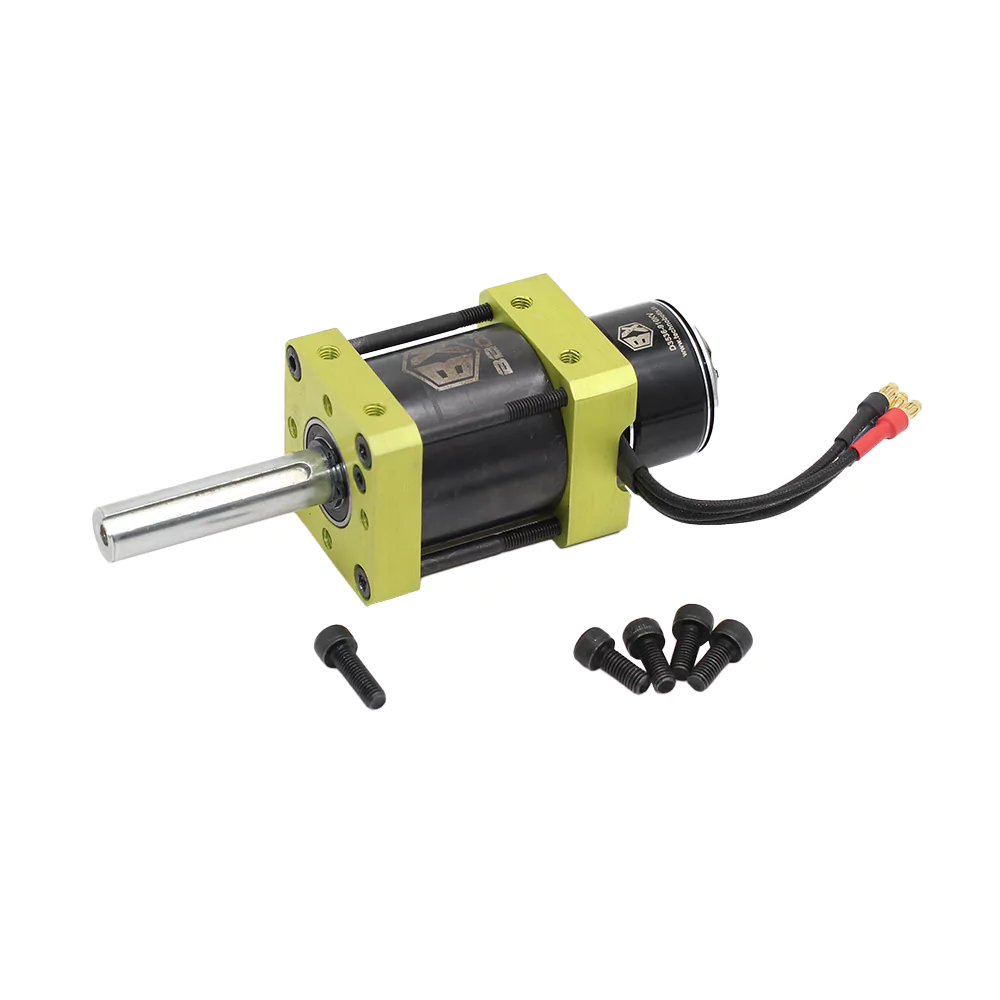

Bbox 15 With Bbox Venus D3536 910KV BLDC Motor

This planetary gear motor features a 16:1 reduction ratio with cold-rolled steel gears for enhanced durability. Rated at 910KV with a nominal voltage of 22V, it achieves a no-load speed of 1250 RPM and a maximum wattage of 347.7 W.

With an internal resistance of 66.7 mΩ and a weight of 578 grams, this motor is suited for applications that demand efficiency and robust power output.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.

Specs:

• Type: Planetary

• Gear Material: Cold Rolled Steel

• Reduction Ratio: 16:1

• Motor Kv: 910KV

• Nominal Voltage: 22V

• No Load Speed: 1250 RPM

• Maximum Wattage: 347.7 W

• Motor Ri: 66.7 mΩ

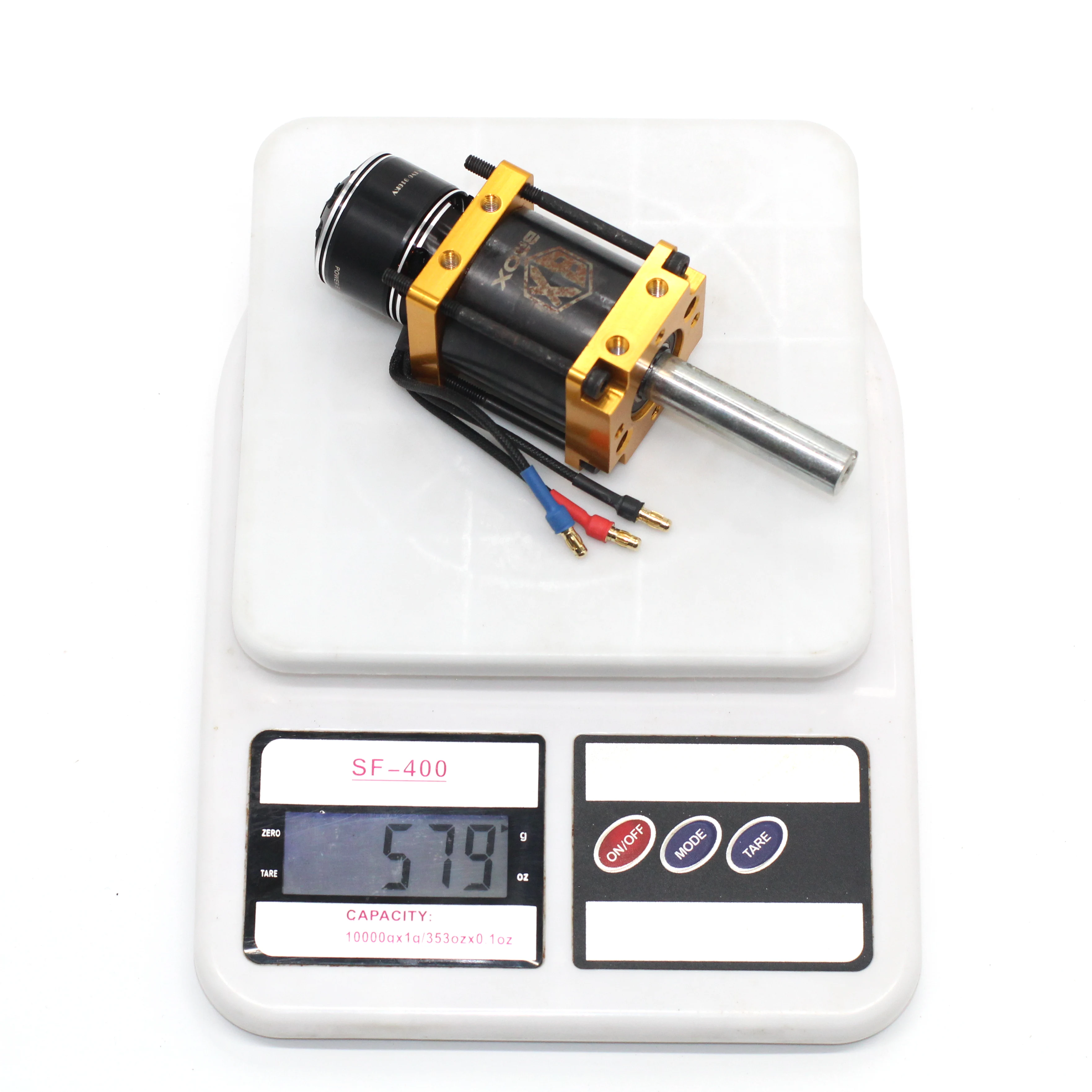

• Weight: 578 grams

• Height/Width (Square): 44 x 44 mm

• Total Length: 91 mm

• Shaft Diameter: 12 mm

• Shaft Length: 35 / 50 mm

• Shaft Keyway: 4 x 2 mm

• Shaft End Tap: M5*10 mm

• Mounting Hole (x4): M5*10 mm
