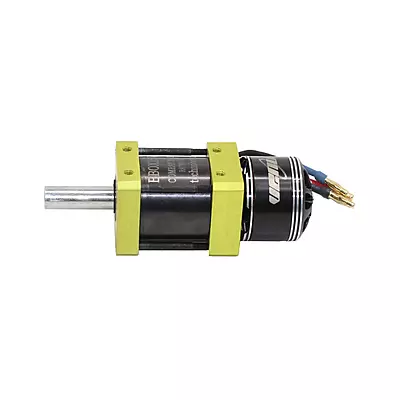

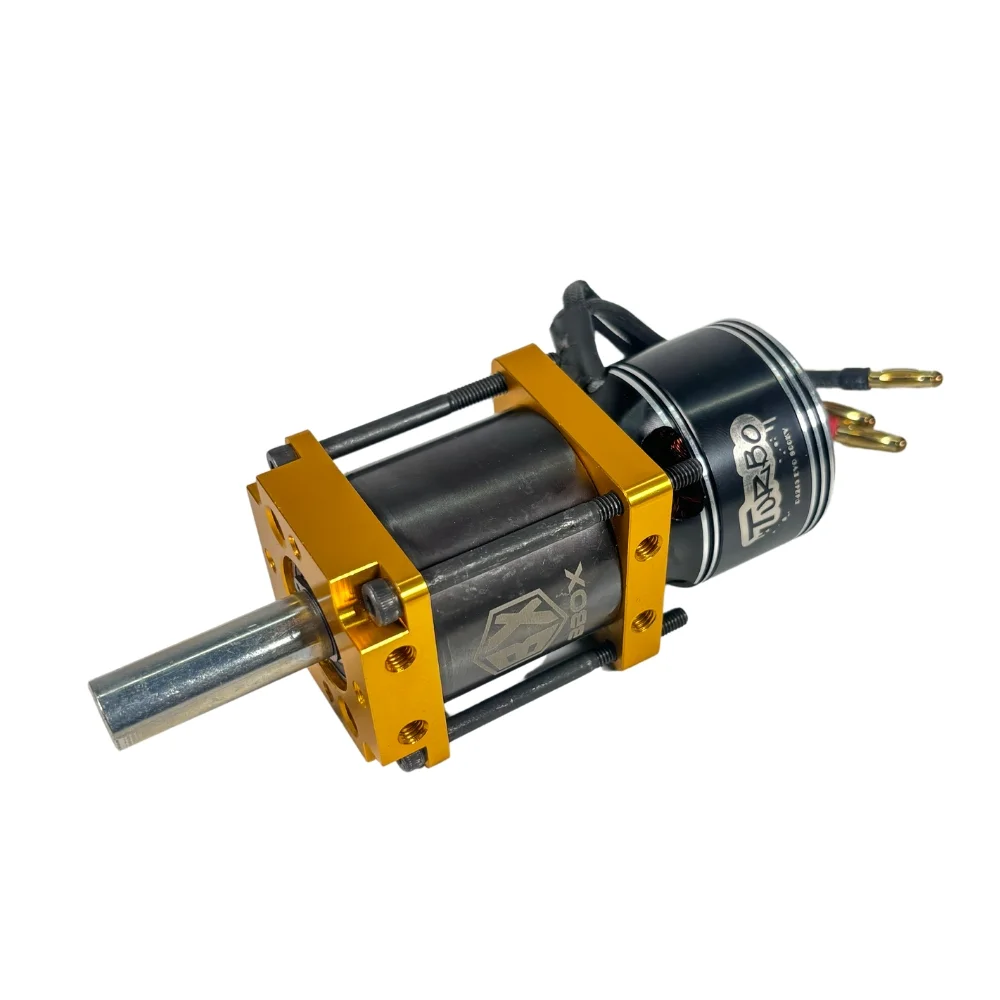

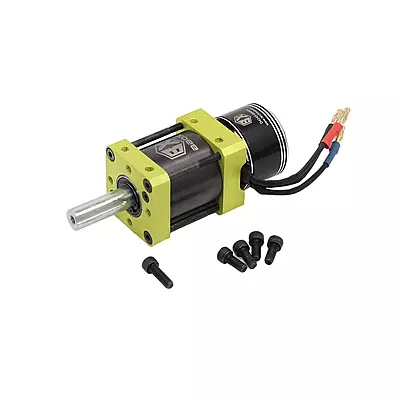

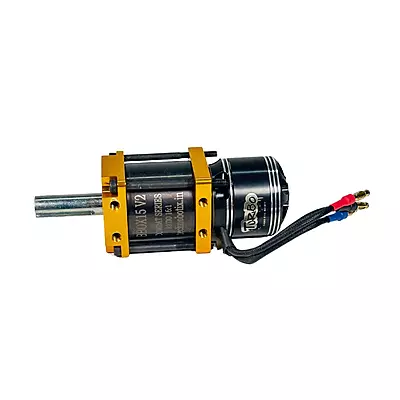

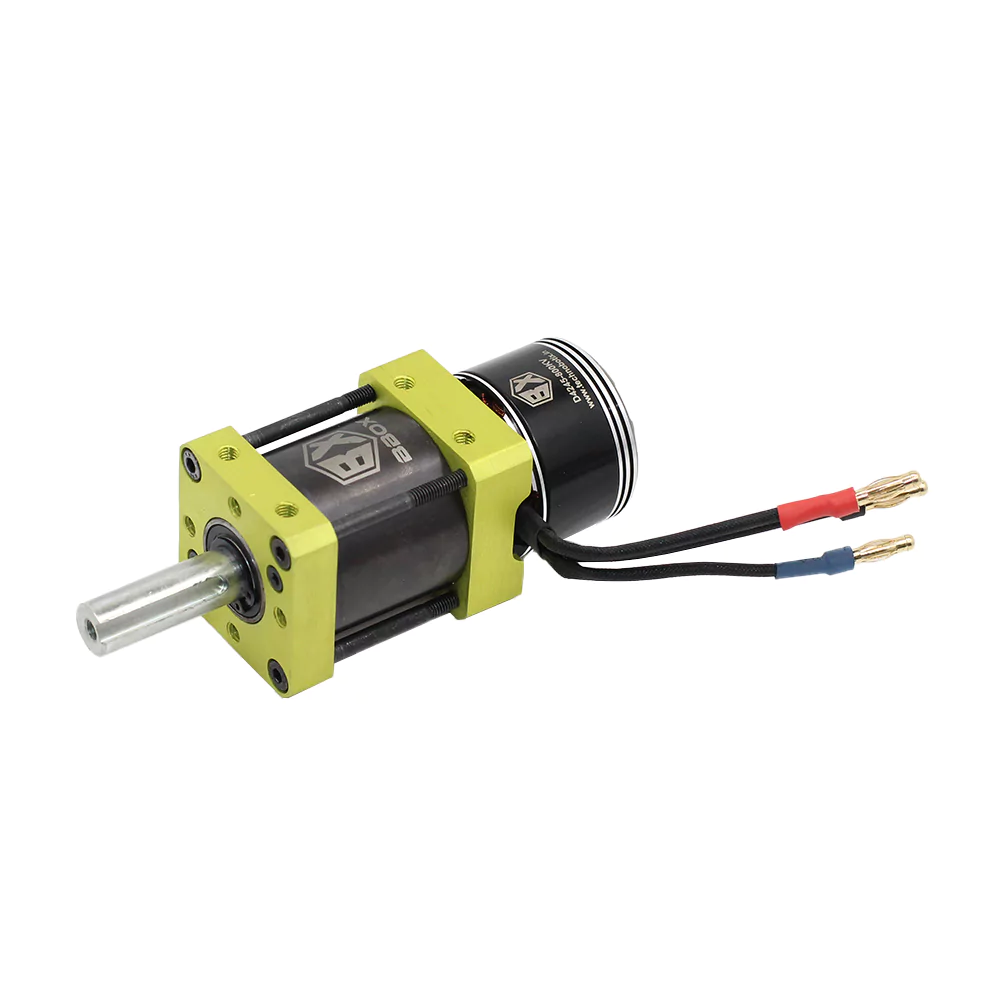

Bbox 15 With Bbox Venus D4245 800KV BLDC Motor

The Bbox 15 with Bbox Venus D4245 BLDC Motor is a high-performance combination designed for demanding applications. This planetary gear motor features a robust cold-rolled steel gear system with a reduction ratio of 16:1, ensuring exceptional durability and efficiency. With a compact square design measuring 44 x 44 mm and weighing 635g (including wires), it is both space-efficient and powerful.

The Venus D4245 BLDC Motor is configured with 12N14P and operates at 800KV, delivering a maximum power of 1210.7W and a peak current of 58.6A. It is optimized for 5-6S LiPo batteries, making it ideal for high-powered robotics and RC projects. The motor's no-load current is 1.70A at 10V, with a resistance of 30.4mΩ, ensuring smooth and efficient operation. Its motor mount, with dimensions of 25x25mm (M3*4), provides versatile installation options for various setups.

This combination is engineered to provide unmatched performance, reliability, and adaptability, catering to enthusiasts and professionals alike.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.

Specs:

• Type: Planetary

• Gear Material: Cold Rolled Steel

• Reduction Ratio: 16:1

• Height/Width (Square): 44 x 44 mm

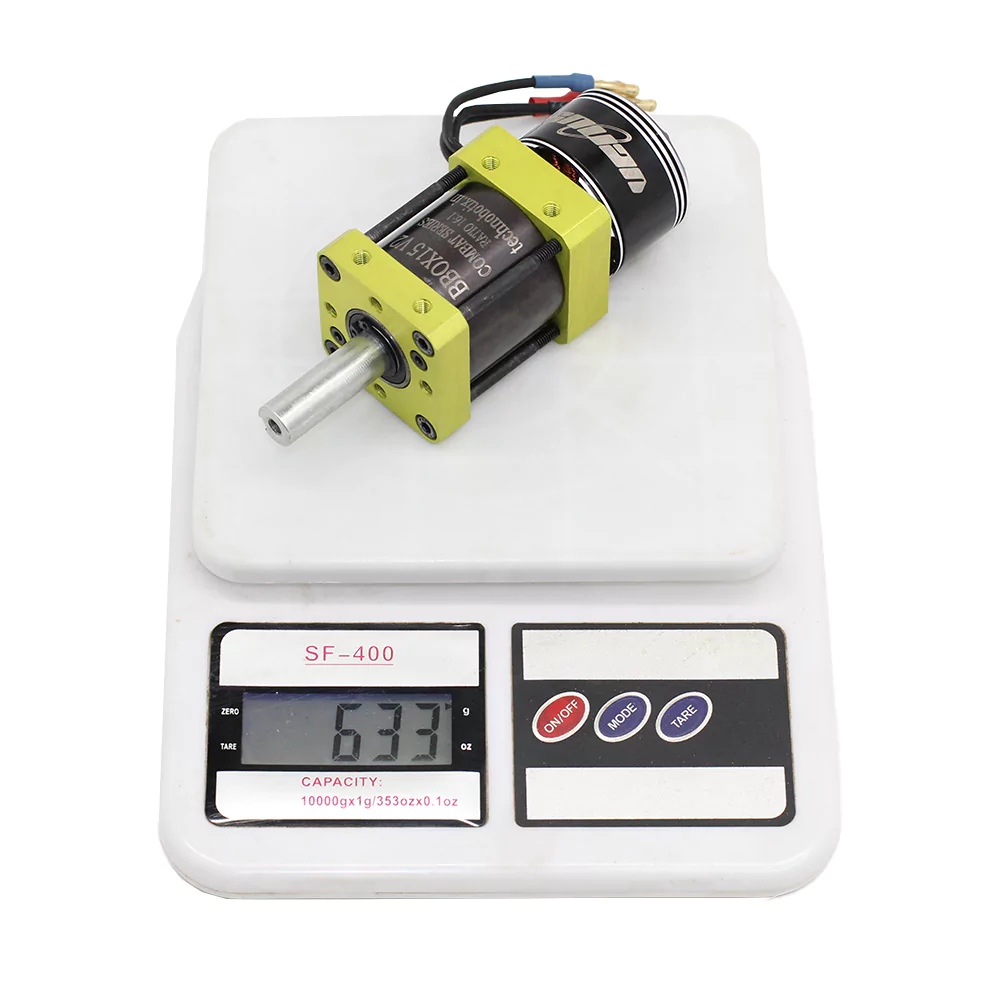

• Weight: 635g (Including wires)

• Motor Mount: 25*25mm(M3*4)

• Configuration: 12N14P

• KV: 800KV

• Max watts: 1210.7W

• Max Current: 58.6A

• Nomial Current (Approx): 38A

• No Load current: 1.70A/10V

• Resistance: 30.4mΩ

• Nominal Torque (Approx): 5.5Nm

• Max Torque (Approx): 10.5Nm

• Battery: 5-6S Lipo

• Shaft Diameter: 12 mm

• Shaft Length: 35 / 50 mm

• Shaft Keyway: 4 x 2 mm

• Shaft End Tap: M5*10 mm

• Mounting Hole (x4): M5*10 mm

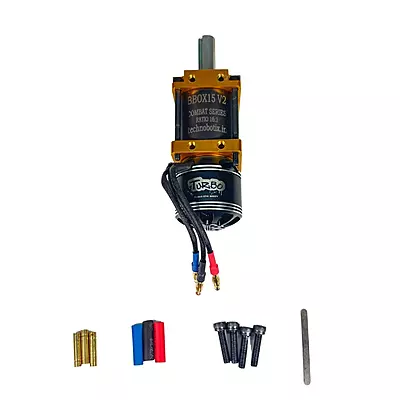

Package Includes:

1 x Bbox 15 With Bbox Venus D4245 800KV BLDC Motor

5 x M5 Bolts

1 x M4 Machine Key

1 x Packet of Bolts, Bullet Connectors & Other Accessories

1 x Cross Mount

1 x Propeller Mount

1 x Tail Support
