Bbox 15 With Flash Hobby D4260 800KV BLDC Motor
₹7,499.00 - ₹9,399.00
Features:
- Brushless Design
- Planetary Gear Box
- High Efficiency
- Cold Rolled Steel Gear material
Gearbox Version
Tail Support
Product Details

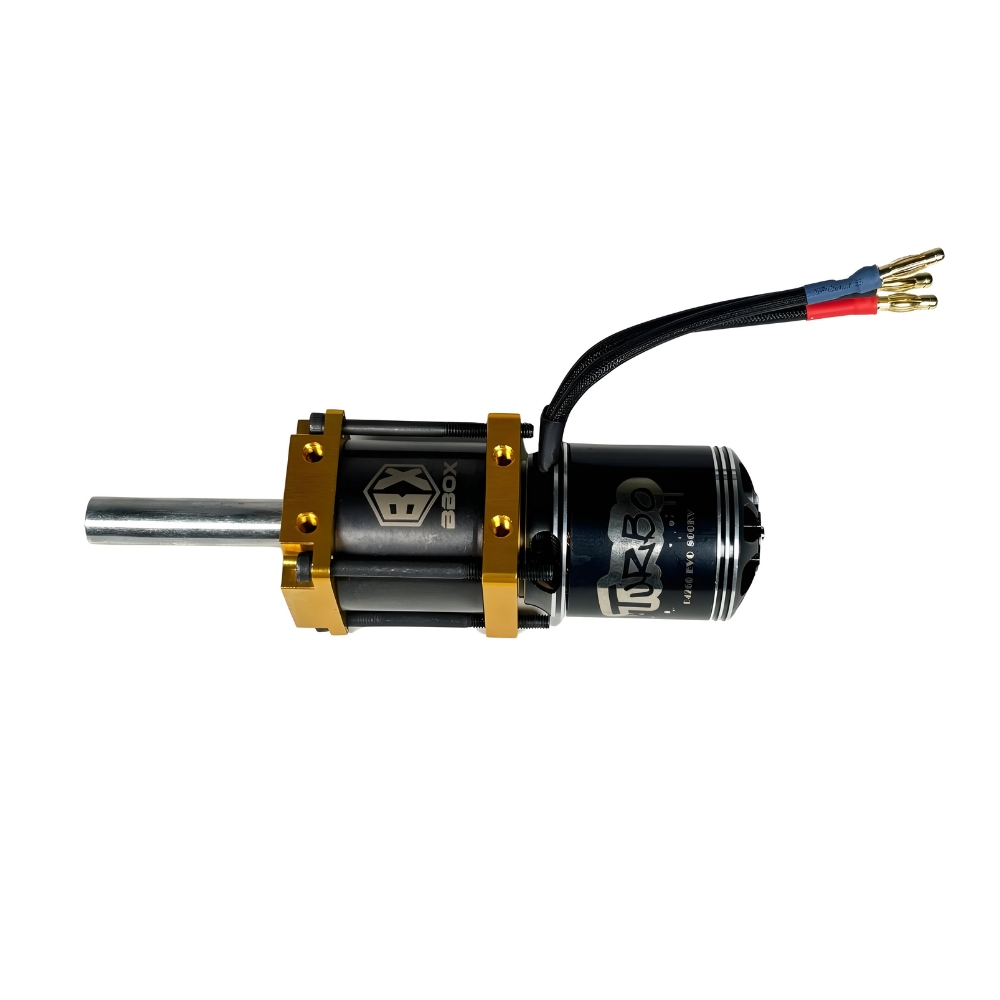

This brushless planetary gear motor, Bbox 15 V2 With D4260features a 16:1 reduction ratio and is constructed with cold-rolled steel gears for enhanced durability.
With a motor rating of 800KV and a nominal voltage of 22V, it delivers a no-load speed of 1100 RPM and supports a maximum wattage of 1354 W.
The motor’s internal resistance is 21.2 mΩ, and it weighs 756 grams, making it well-suited for high-performance applications requiring reliable power and efficiency.
Specs:
- Type: Planetary
- Gear Material: Cold Rolled Steel
- Reduction Ratio: 16:1
- Motor Kv: 800KV
- Nominal Voltage: 22V
- No Load Speed: 1100 RPM
- Maximum Wattage: 1354 W
- Motor Ri: 21.2 mΩ
- Weight: 756 grams
- Height/Width (Square): 44 x 44 mm
- Total Length: 115 mm
- Shaft Diameter: 12 mm
- Shaft Length: 35 / 50 mm
- Shaft Keyway: 4 x 2 mm
- Shaft End Tap: M5*10 mm
- Mounting Hole (x4): M5*10 mm
Package Includes:
1 x Bbox 15 V2 With D4260 Brushless Geared DC Motor
5 x M5 Bolts
1 x M4 Machine Key
1 x Packet of Bolts, Bullet Connectors & Other Accessories
1 x Cross Mount
1 x Propeller Mount
1 x Tail Support
