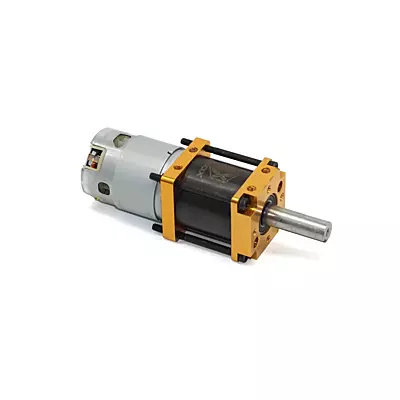

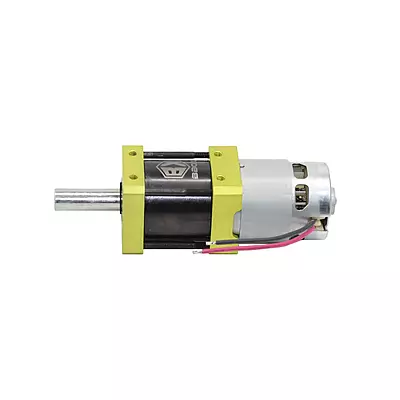

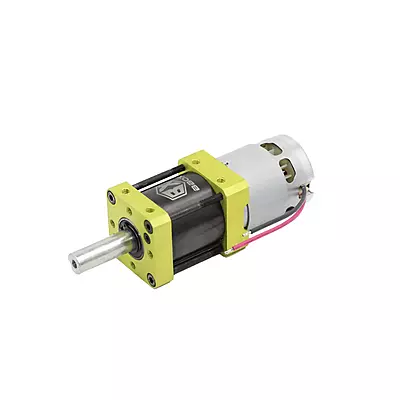

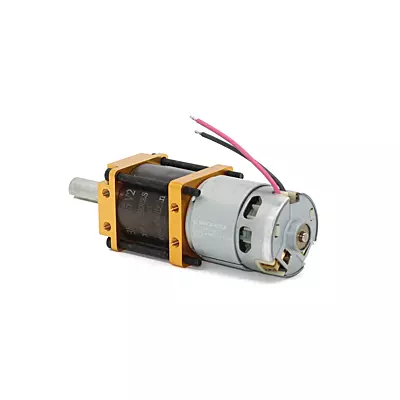

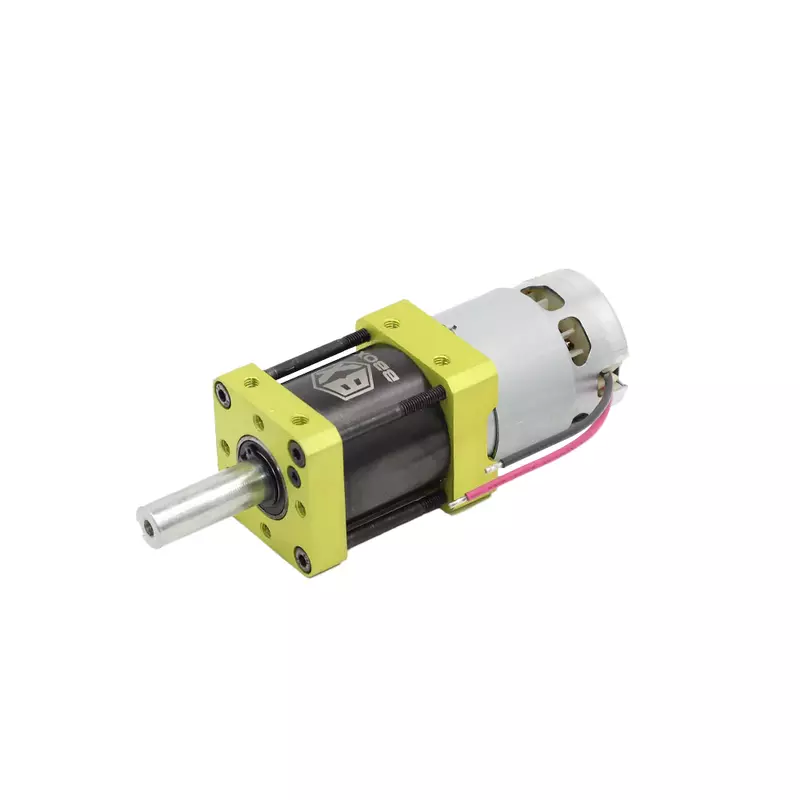

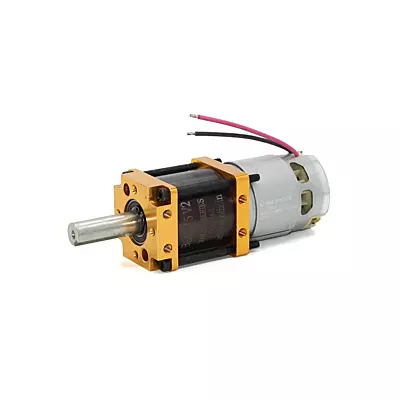

Bbox 15 With Mabuchi 735 DC Brushed Geared Motor
₹4,249.00 - ₹5,349.00
Features:
High Speed
High Power
Large Torque
Voltage Range
Reliable Brand
Gearbox Version
Product Details
Specs:
Operating Range Voltage (V): 6-20
Nominal Voltage (V): 18
Speed At Maximum Efficiency (r/m): 1124
Current At Maximum Efficiency (A): 20.9
Torque (N.m): 2.384
Output (W): 281
Current (A): 156
Height/Width (Square): 44 x 44 mm
Geared Motor Length (mm): 119.4

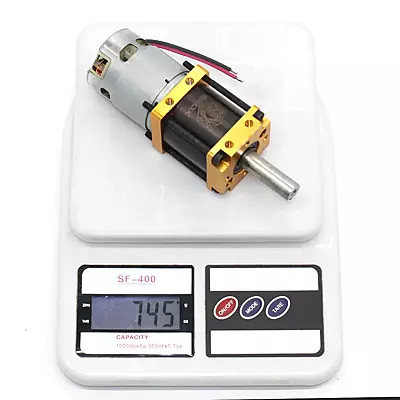

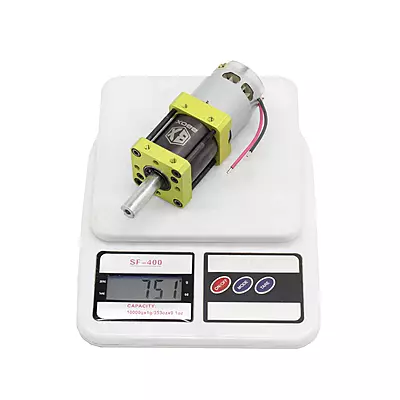

Weight (g): 746
Shaft Diameter: 12 mm
Shaft Length: 35/50 mm
Shaft Keyway: 4x2 mm
Shaft End Tap: M4x10 mm
Mounting Hole (x4): M5x10 mm
If you're planning to build a combat robot, be sure to check out our recommended setup blog.

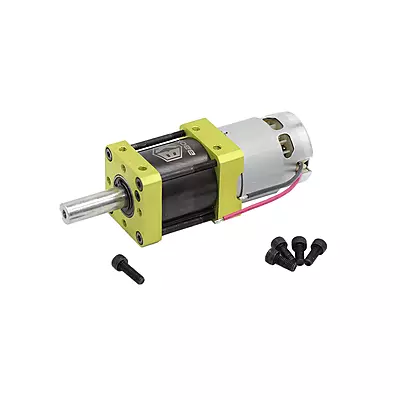

Package Includes:
1 x Bbox 15 V2 With Mabuchi 735 DC Brushed Geared Motor
4 x M6 Bolts
1 x M3 Bolt
1 x M4 Machine Key
