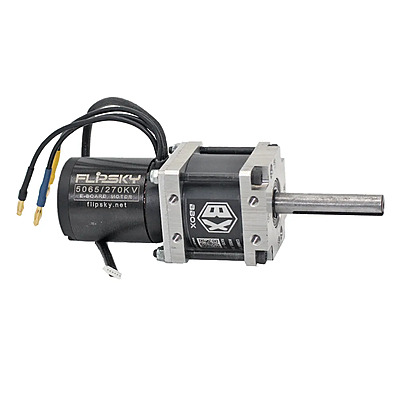

BBOX 30 Pro Gearbox With Flipsky 5065 270KV Outrunner BLDC Motor
- Brushless Design
- Planetary Gear Box
- Multiple planet gears
- Low maintenance
- CW/ CCW Direction
- Cold rolled steel Gear material
- Aluminium-steel Housing material
This planetary gear motor offers a reliable 18:1 reduction ratio with durable steel gears for enhanced strength and longevity.
Designed for precision, it has a compact 55 x 55 mm size and a sturdy 12 mm diameter shaft that extends 60 mm in length, featuring a 4 x 2 mm key for secure fit.
The shaft end tap is 4 mm, and M6 mounting holes ensure straightforward, stable installation. Ideal for applications requiring high torque and efficient power transmission.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
Type: Planetary
Reduction ratio: 18:01
Gear material: Steel
No Load Speed (on 30V): 450 rpm
Nominal Voltage: 30V
Size: 55*55 mm Length
Shaft Diameter: 12 mm
Shaft Length: 60 mm
Shaft Key: 4*2 mm
Shaft End Tap: 4 mm
Mounting Hole: M6
Package Includes:
1 x Bbox 30 V1 With Flipsky 5065 270KV BLDC Motor
4 x M6 Bolts
1 x M3 Bolt
1 x M4 Machine Key
3 x Bullet Connectors
1 x Machine Key
1 x Tail Support
