Bbox 30 With 997 DC Brushed Motor

Discover the features of this Bbox 15 V2 with 997 DC brushed motor: permanent magnet design, planetary gearbox, low maintenance, and durable construction with cold rolled steel gears and aluminum-steel housing. Perfect for robotics applications.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.

Specs:

• Type: Planetary

• Reduction ratio: 18:01

• Gear material: Steel No

• Load Speed: 666 RPM

• Nominal Voltage: 24 V DC

• Maximum Voltage: 36 V DC AMPS @ Nom: 361.07 oz-in Stall

• Current: 90 Amp

• Voltage constant (kv): 500

• Torque constant (Kt): 4.01 oz-in/A Efficiency : 52%

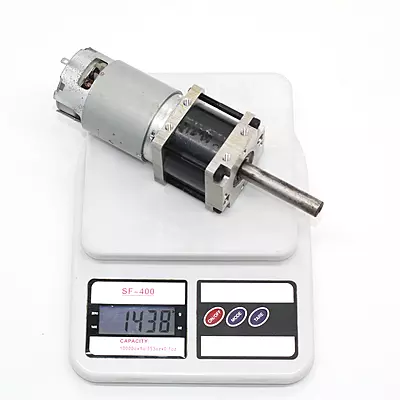

• Weight: 1400 gm

• Size: 55*55 mm

• Length: 201 mm

• Shaft Diameter: 12 mm

• Shaft Length: 60 mm

• Shaft Key: 4*2 mm

• Shaft End Tap: 4 mm

• Mounting Hole: M6
