Bbox 60 V1 Combat Series Gearbox Only
Features:
Available Ratio: 7.27:1
Lightweight Design
Rigid Performance
High-Quality Materials
Hardened Material
Inspired by Son Of Wyachi Platform
Introducing the BBOX 60 V1 COMBAT SERIES GEARBOX, engineered to dominate the arena with unparalleled performance and resilience.
Tailor your machine's capabilities with the available 7.27:1 Ratio, ensuring optimal performance tailored to your specific needs.
Crafted with a lightweight design, this gearbox enhances maneuverability in combat, allowing for swift and agile movements on the battlefield.
Its rigid construction withstands intense pressure, ensuring unwavering performance even in the most demanding scenarios.
Constructed from high-quality materials and hardened for superior strength and resilience, the BBOX 60 V1 is built to endure the toughest battles.
Drawing inspiration from the legendary Son Of Wyachi platform, this gearbox is engineered for exceptional combat prowess, setting the standard for domination in the arena. Gear up with the BBOX 60 V1 and unleash the ultimate fighting machine.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
Shaft Length(mm): 50
Shaft Diameter(mm): 19
Keyway(mm): 6 x 3
Dimensions(mm): 165 x 63 x 80
Make: Technobotix
Model No.: Bbox 60 V1
Shaft Material: EN 24 Alloy Steel
Gear Material: EN 24 Alloy Steel

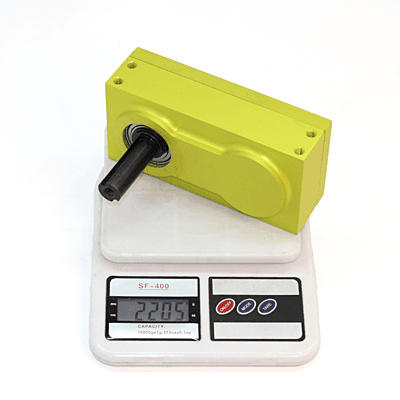

Weight(g): 2300
Compatability: Suitable for both brushed and brushless motors
Brushed Motor: Ampflow A28 400/150
Brushless Motor: Flipsky 7070 (110Kv | 140Kv | 170Kv)

Package Includes:
1 x Bbox 60 V1 Combat Series Gearbox Only
4 x M5 Keys
1 x M5 Machine key
