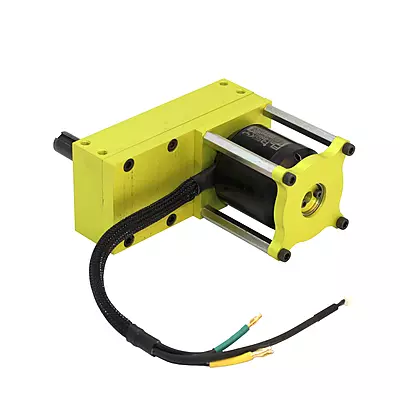

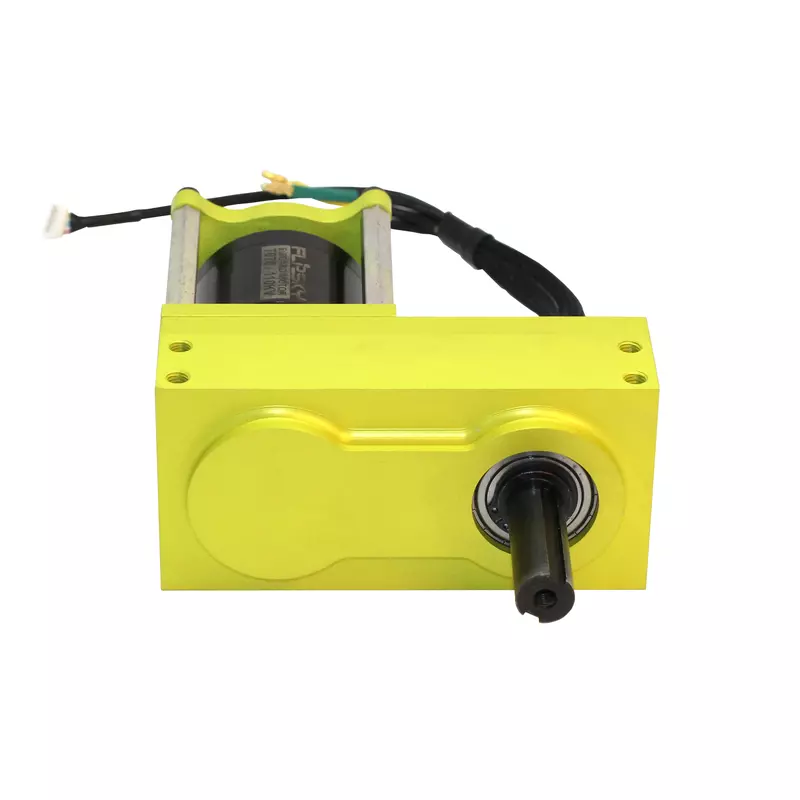

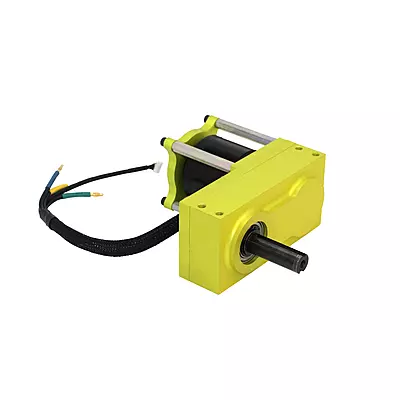

BBOX 60 V1 With Flipsky 7070 Brushless Geared Motor

The BBOX 60 V1 With Flipsky 7070 Brushless Geared Motor - high-performance geared motor is designed for power-demanding applications, delivering a maximum output of 4200W. With three KV options—110KV, 140KV, and 170KV—it offers flexibility to suit various use cases. The motor operates at a peak current of 100A and supports a wide voltage range of 6-18S, ensuring exceptional efficiency and adaptability. Its internal resistance of 0.055 ohms ensures smooth performance, while the 12N/14P structure provides precise operation and reliability.

Equipped with a built-in sensor for enhanced control, the motor features a robust EN 24 alloy steel shaft with a length of 50mm, a diameter of 19mm, and a keyway of 6x3mm for secure power transmission. The gear material is also crafted from EN 24 alloy steel, ensuring superior durability and longevity. Weighing 3.3kg, this motor is engineered for heavy-duty performance, making it a perfect choice for robotics, electric vehicles, and other high-torque applications.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.

Specs:

• Motor Max power: 4200W

• Motor KV: 110KV I 140KV I 170KV

• Voltage: 6-18S

• Internal resistance: 0.055ohm

• Motor structure: 12N/14P

• Sensor: Yes

• Shaft Length(mm): 50

• Shaft Diameter(mm): 19

• Keyway(mm): 6 x 3

• Shaft Material: EN 24 Alloy Steel

• Gear Material: EN 24 Alloy Steel

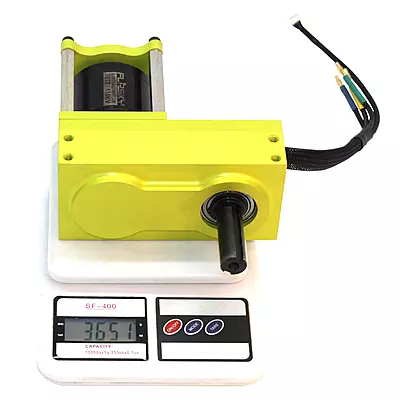

• Weight: 3.3kg

Package Includes:

1 x BBOX 60 V1 With Flipsky 7070 Brushless Geared Motor

4 x M5 Keys

8 x M5 Bolts

2 x M3 Bolts

1 x Pulley

2 x Grubs

1 x Packet of Bullet Connectors & Machine Key
