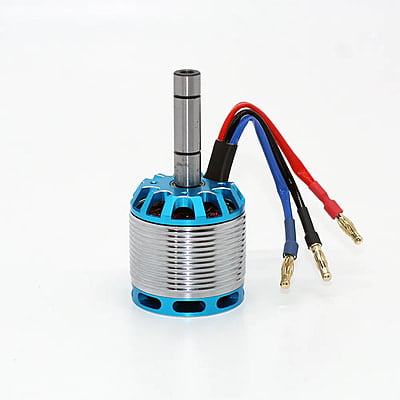

BBOX PLUTO H500 Helicopter BLDC Motor
₹5,249.00 - ₹6,999.00
Features:
High 550KV Rating: Delivers impressive speed.
Efficient: Low idle current of 0.9A.
Wide Compatibility: Works with 3S to 12S Lipo cells.
Robust: Handles up to 26A continuous current.
Motor Accessories
Choose Quantity
Product Details
The BBOX PLUTO H500 is a high-performance BLDC motor engineered for optimal efficiency and power delivery in various applications.
Additionally, with a motor KV of 550RPM/V, this motor offers exceptional speed and torque, making it suitable for a wide range of projects.
Moreover, designed for versatility, the BBOX H500 operates seamlessly with Lipo cells ranging from 3S to 12S, providing flexibility in battery configurations.
Furthermore, its low idle current of 0.9A ensures minimal power consumption during standby, optimizing overall energy efficiency.
In addition, built to handle demanding tasks, this motor boasts a robust construction with a maximum continuous current of 26A and a maximum continuous power output of 1250W, ensuring sustained performance under challenging conditions.
Additionally, in short bursts, it can reach a peak current of 35A for up to 2 seconds, delivering an impressive peak power of 1700W, ideal for quick accelerations and rapid maneuvers.
Moreover, the motor's 9N/6P configuration enhances its stability and reliability, while its low resistance of 0.13Ω minimizes energy loss and heat generation, ensuring consistent performance over extended operation periods.
Lastly, whether you're designing drones, electric vehicles, or other high-speed applications, the BBOX H500 sets a new standard for efficiency, power, and durability, making it the ideal choice for demanding projects where performance matters most.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Product Name: BBOX PLUTO H500
- Motor KV: 550RPM/V
- Idle Current (Io/10V): 0.9A
- Lipo Cell: 3-12S
- Weight: 230g
- KV: 3524KV
- Max Continuous Current: 26A
- Max Continuous Power: 1250W
- Max Peak Current: 35A(2seconds)
- Max Peak Power: 1700W(2seconds)
- Configuration: 9N/6P
- Motor Resistance (RM): 0.13Ω
- Stator Diameter: 35mm
- Stator Thickness: 24mm
- Motor Diameter: 43.5mm
- Shaft Diameter: 5MM

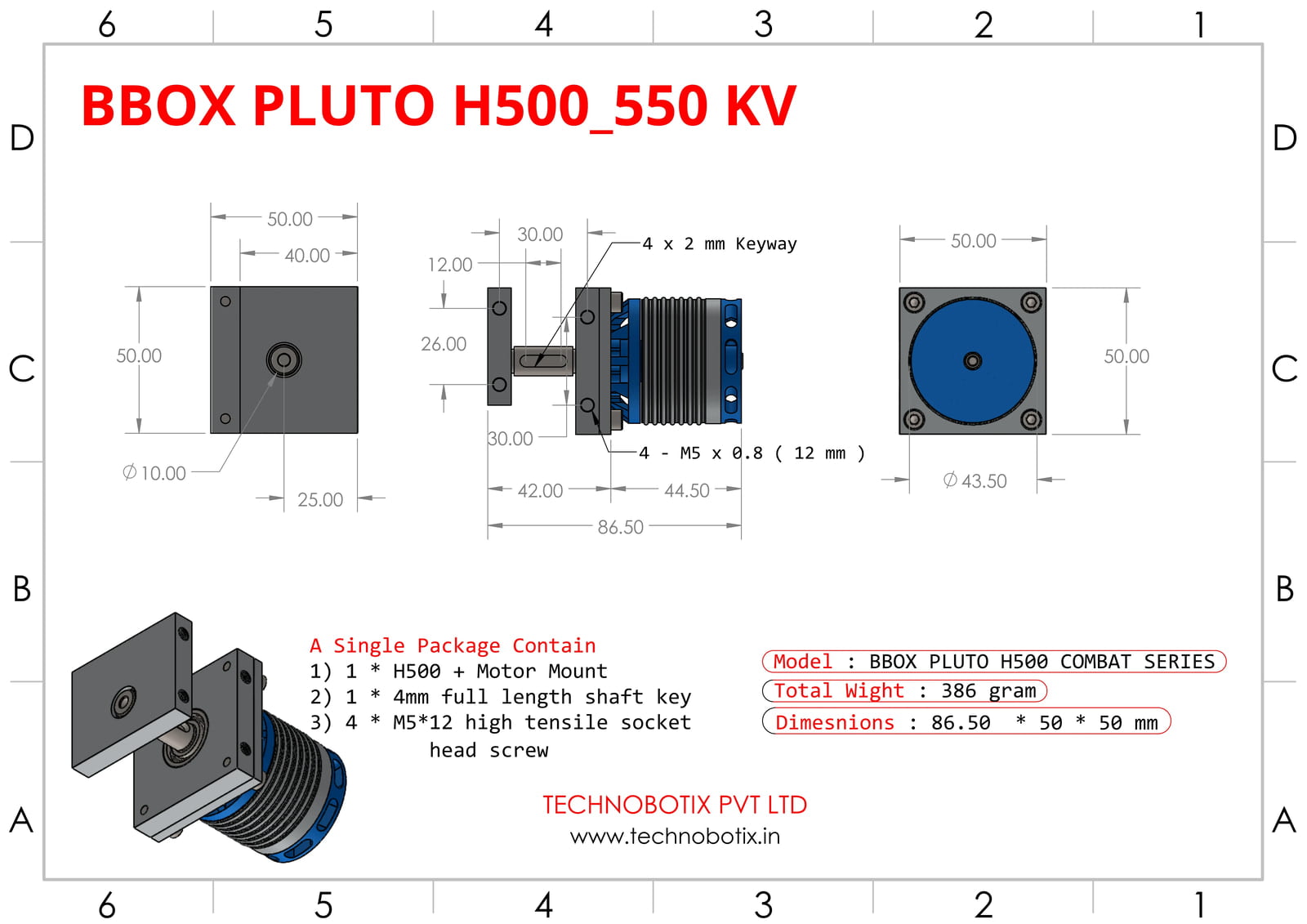

Drawing:

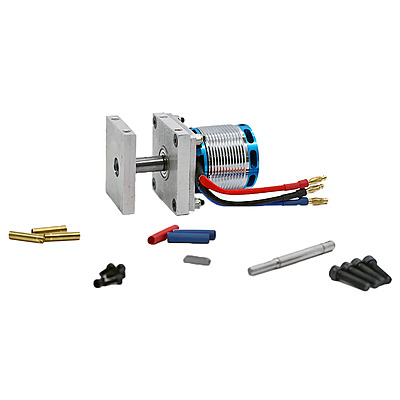

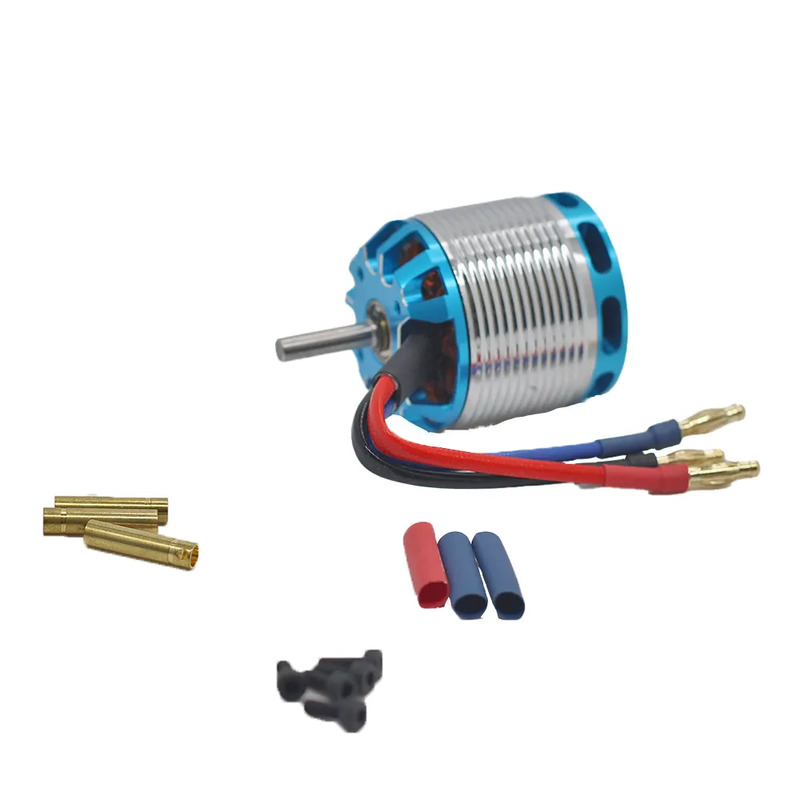

Package Includes:
1 x Bbox Pluto H500 Motor
1 x Packet of Allen Bolts, Bullet Connectors with Sleeves
4 x M6 Bolts
1 x M4 Machine Key
1 x Motor Mounting Bracket
