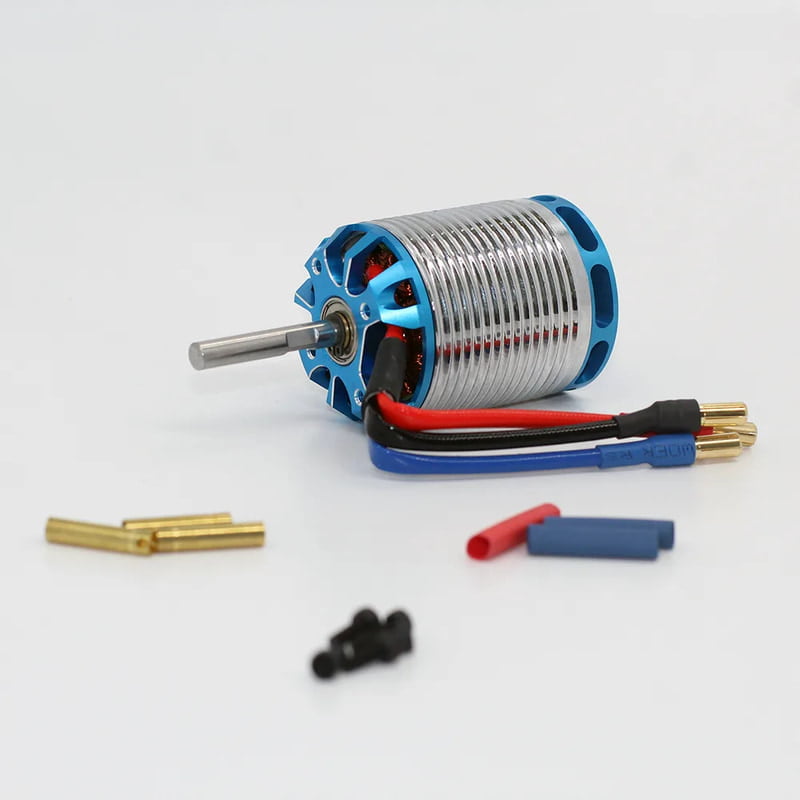

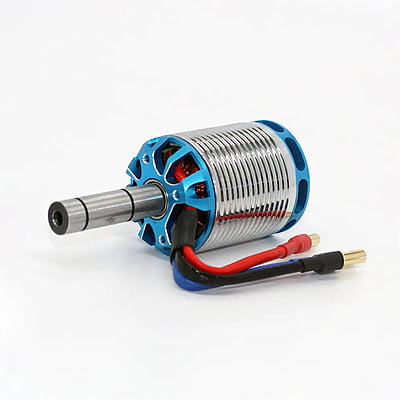

BBOX PLUTO H600 550KV BLDC MOTOR
₹6,249.00 - ₹8,349.00
Features:
High-quality BLDC motor
FLASH HOBBY H600 model
550KV rating
Durable construction
Features:
High-quality BLDC motor
FLASH HOBBY H600 model
550KV rating
Durable construction
Motor Accessories
Choose Quantity
Product Details
The FLASH HOBBY H600 550KV BLDC Motor, engineered for uncompromising performance in a variety of applications, ensures efficient power delivery and responsiveness with a motor KV of 550RPM/V.
Additionally, the idle current of 2.05A at 10V minimizes power consumption during idle periods. Furthermore, compatible with 3-12S Lipo cells, this motor offers versatility in power options.
Moreover, it can handle a maximum continuous current of 60A, delivering consistent performance, while the maximum continuous power output of 3000W ensures sustained operation under demanding conditions.
In moments requiring extra power, the motor can peak at 80A for 2 seconds, reaching a maximum peak power of 4000W. Additionally, the 12N/10P configuration optimizes performance, while the motor resistance of 0.0241Ω ensures efficient power transfer.
Moreover, set at 5 degrees, the motor timing provides precision operation, complemented by a drive frequency of 8KHz for smooth performance.
Finally, equipped with a 5mm male connector, installation is straightforward, making the FLASH HOBBY H600 550KV BLDC Motor an ideal choice for enthusiasts seeking high-performance and reliability.
- Motor KV: 550RPM/V
- Idle Current (Io/10V): 2.05A
- Lipo Cell: 3-12S
- Weight: 378g
- Max Continuous Current: 60A
- Max Continuous Power: 3000W
- Max Peak Current: 80A(2seconds)
- Max Peak Power: 4000W(2seconds)
- Configuration: 12N/10P
- Motor Resistance (RM): 0.0241Ω
- Stator Diameter: 35mm
- Stator Height: 38mm
- Motor Diameter: 44.6mm
- Shaft Diameter: 6mm
- Motor Length: 59.5mm
- Overall Shaft Length: 95mm
- Bolt holes spacing: 30/25mm
- Bolt thread: M3
- Connector: 5mm
- Motor Timing: 5deg
- Drive Frequency: 8KHz
- Lipo: 3-12S
- Connector: 5mm male connector
Drawing:

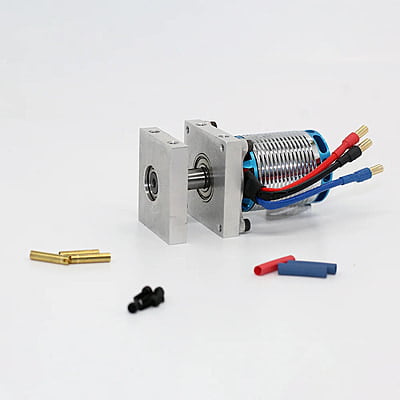

Package Includes:
1 x Bbox Pluto H600 Motor
1 x Packet of Allen Bolts, Bullet Connectors with Sleeves
4 x M6 Bolts
1 x M4 Machine Key
1 x Motor Mounting Bracket
