BBOX PLUTO H700 530KV BLDC Motor
₹7,249.00 - ₹9,449.00
Features:
High KV Rating: 530RPM/V
Wide Voltage Range: Compatible with 3-12S Lipo cells
High Power Output: Max continuous current 100A
Peak Performance: Peaks at 150A for 2s, 7000W
Motor Accessories
Choose Quantity
Product Details
The BBOX Pluto H700 530KV BLDC Motor, designed to redefine performance standards in electric propulsion. With a robust configuration of 12N/10P and a powerful 530RPM/V rating, it delivers unmatched power and efficiency.
Motor KV (RPM/V): 530 RPM/V Idle Current (Io at 10V): 1.98A Lipo Cell Support: 3-12S Weight: 492g Max Continuous Current: 100A Max Continuous Power: 4500W Max Peak Current (2 seconds): 150A Max Peak Power (2 seconds): 7000W Configuration: 12N/10P Motor Resistance (RM): 0.0155Ω Stator Diameter: 41mm Stator Thickness: 35mm Motor Diameter: 53.2mm Shaft Diameter: 6mm Motor Body Length: 61mm Overall Shaft Length: 99mm Bolt Holes Spacing: 30mm / 25mm Bolt Thread Size: M4 / M3 Connection: 5mm Motor Timing: 5 degrees Drive Frequency: 8KHz

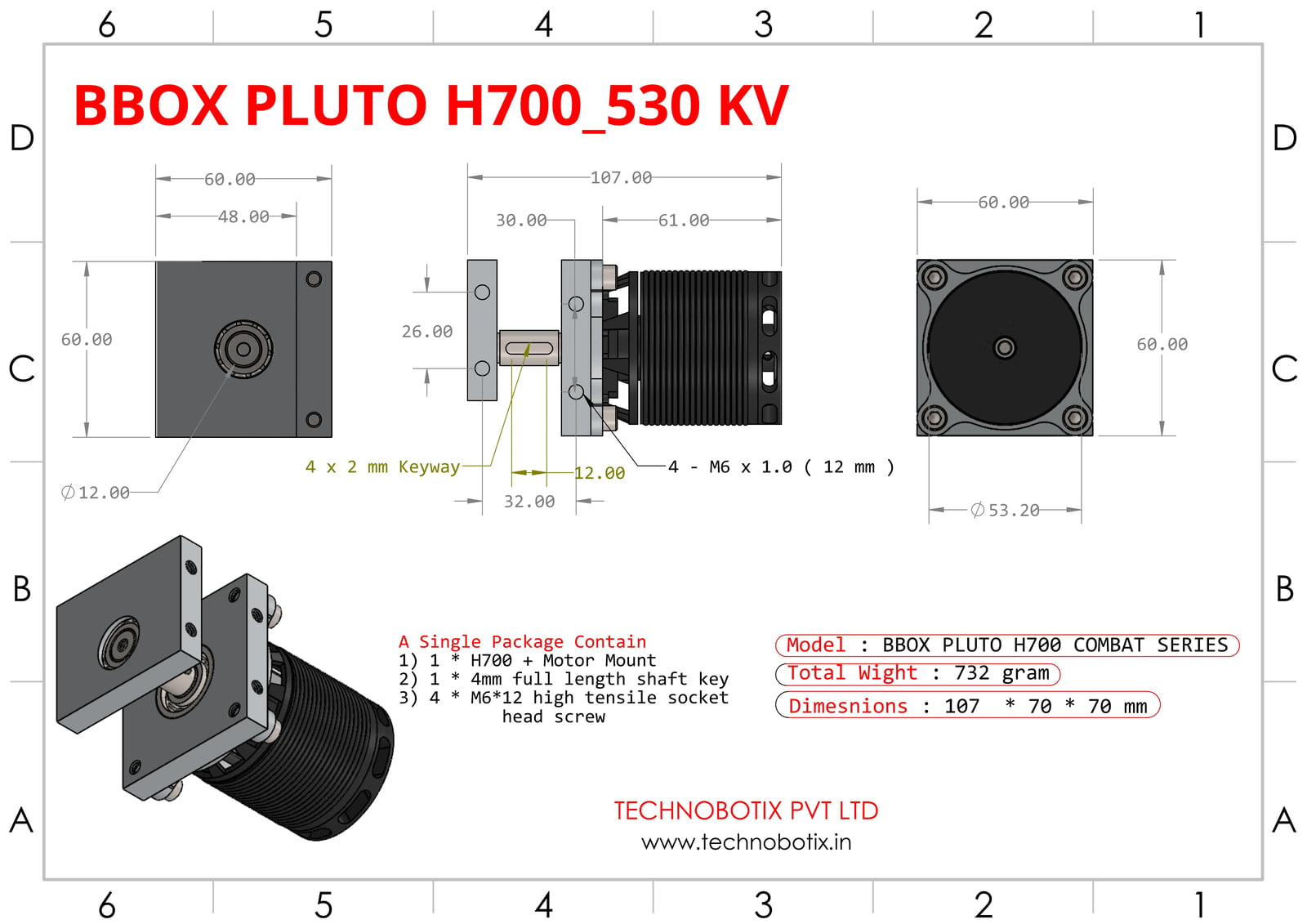

Drawing:
From 3S to 12S Lipo cells, this motor adapts seamlessly to various setups. With a maximum continuous current of 100A and a peak current of 150A for 2 seconds, it offers exceptional performance for demanding applications.
Featuring a low motor resistance of 0.0155Ω and precision timing at 5 degrees, the Pluto H700 ensures optimal efficiency and smooth operation.
Compatible with M4/M3 bolt threads and 5mm connections, installationis hassle-free. Elevate your projects with the BBOX Pluto H700, where power meets precision.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
Drawing:

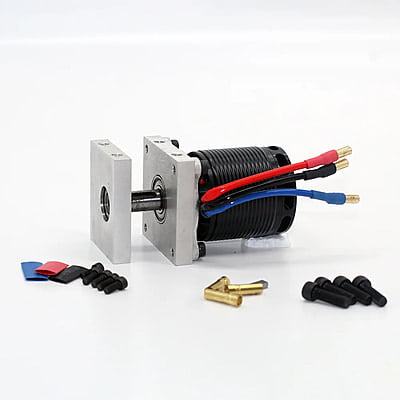

Package Includes:
1 x Bbox Pluto H700 Motor
1 x Packet of Allen Bolts, Bullet Connectors with Sleeves
4 x M6 Bolts
1 x M4 Machine Key
1 x Motor Mounting Bracket
