BBOX PLUTO H850 HELICOPTER BLDC MOTOR
₹7,999.00 - ₹11,249.00
Features:
- High KV Rating: 510KV
- Wide Voltage Range: 3-12S Lipo
- Robust Configuration: 12N/10P
- High Power Output: 130A Continuous
- Peak Performance: 180A for 2 Seconds
- Smooth Control: 8KHz Drive Frequency
Motor accesories
Choose Quantity
Product Details

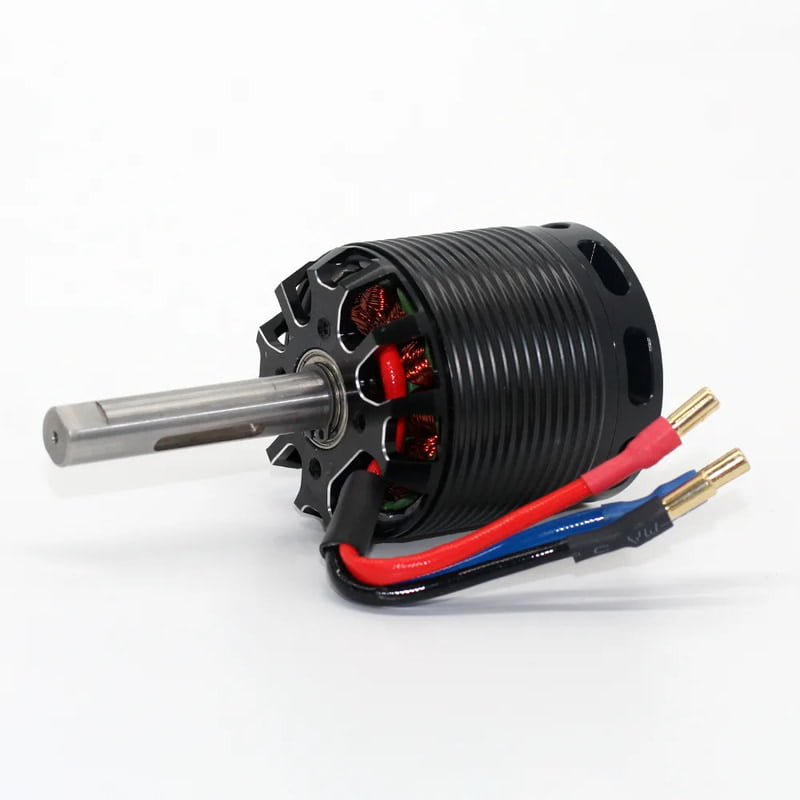

The BBOX Pluto H850, a high-performance BLDC motor engineered for unrivaled power and precision. With a KV rating of 510KV and compatibility with 3-12S Lipo cells, this motor delivers exceptional speed and versatility.
Motor KV (RPM/V): 510 KV Idle Current (Io at 10V): 5.56A Lipo Cell Support: 3-12S Weight: 723.5g Max Continuous Current: 130A Max Continuous Power: 6000W Max Peak Current (2 seconds): 180A Max Peak Power (2 seconds): 8100W Configuration: 12N/10P Motor Resistance (RM): 0.0126Ω Stator Diameter: 50mm Stator Thickness: 35mm Motor Diameter: 55.8mm Shaft Diameter: 8mm Motor Body Length: 64.5mm Overall Shaft Length: 114.5mm Bolt Holes Spacing: 30mm / 30mm Bolt Thread Size: 4 x M4 Connection: 5.0mm Motor Timing: 5 degrees Drive Frequency: 8KHz

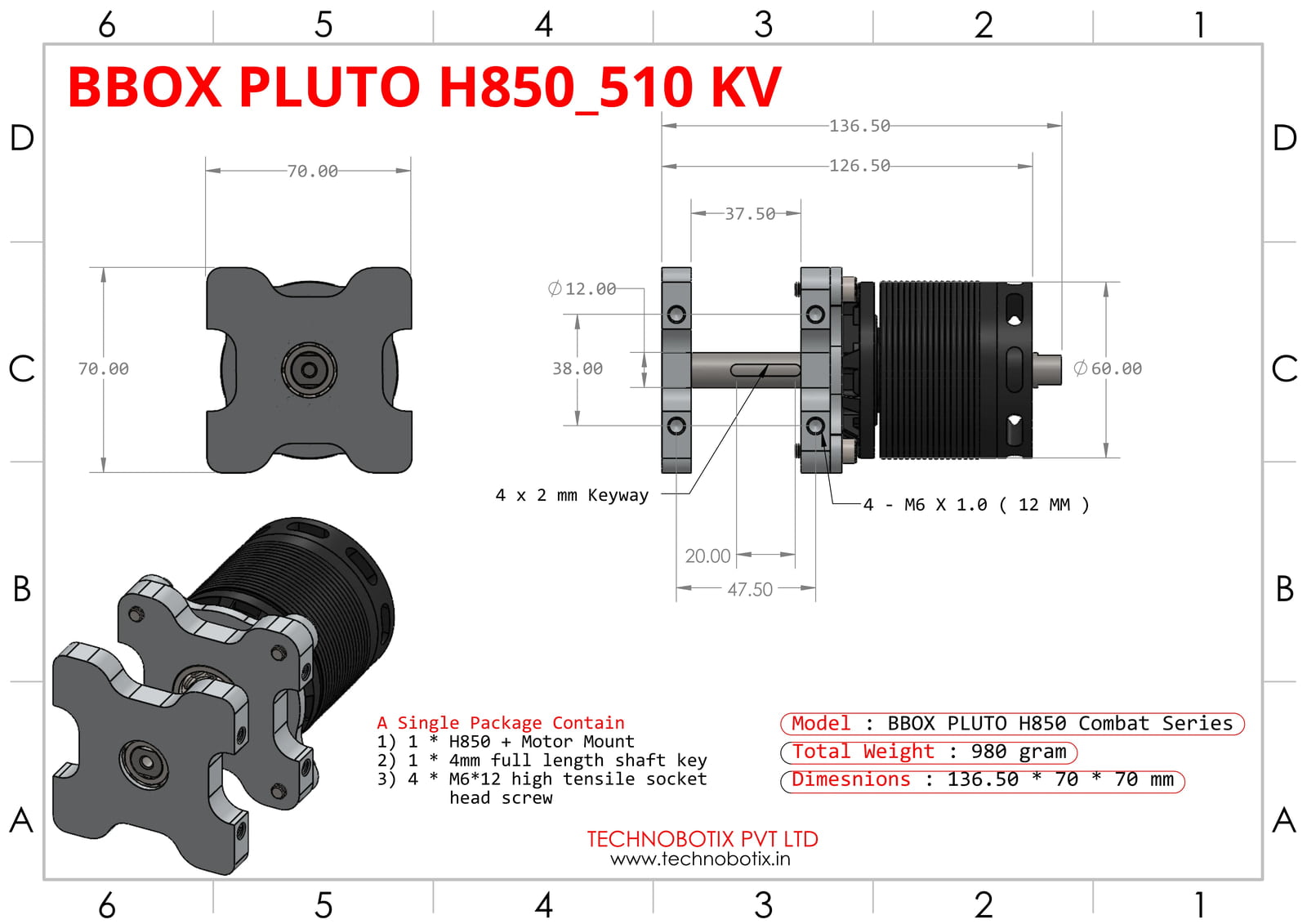

Drawing:

Capable of handling a maximum continuous current of 130A and peaking at 180A for 2 seconds, the Pluto H850 delivers a staggering 6000W of continuous power and 8100W at peak performance.
With precise motor timing set at 5 degrees and a drive frequency of 8KHz, expect smooth and responsive control. Installation is a breeze with 4-M4 bolt threads and 5.0mm connections.
Its robust 12N/10P configuration and low motor resistance of 0.0126Ω ensure durability and efficiency. Elevate your projects with the BBOX Pluto H850, where power meets precision.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
Drawing:

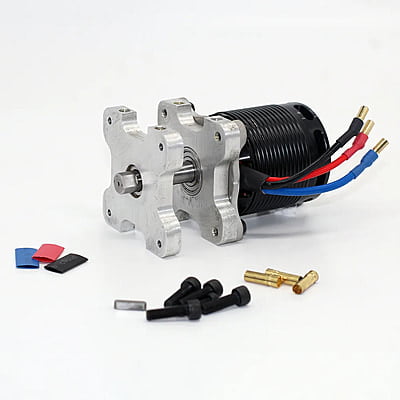

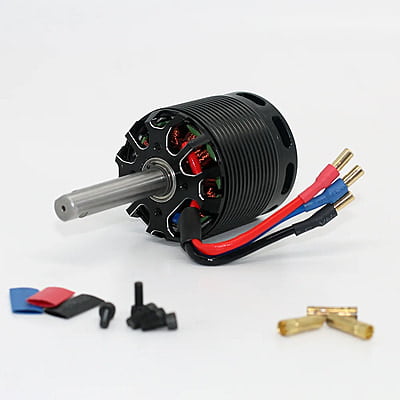

Package Includes:
1 x Bbox Pluto H850 Motor
1 x Packet of Allen Bolts, Bullet Connectors with Sleeves
4 x M6 Bolts
1 x M4 Machine Key
1 x Motor Mounting Bracket
