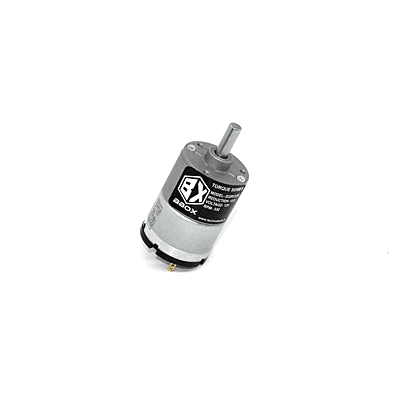

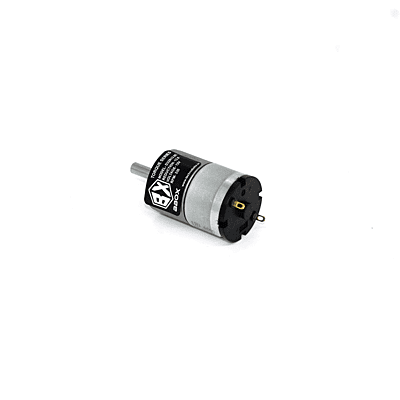

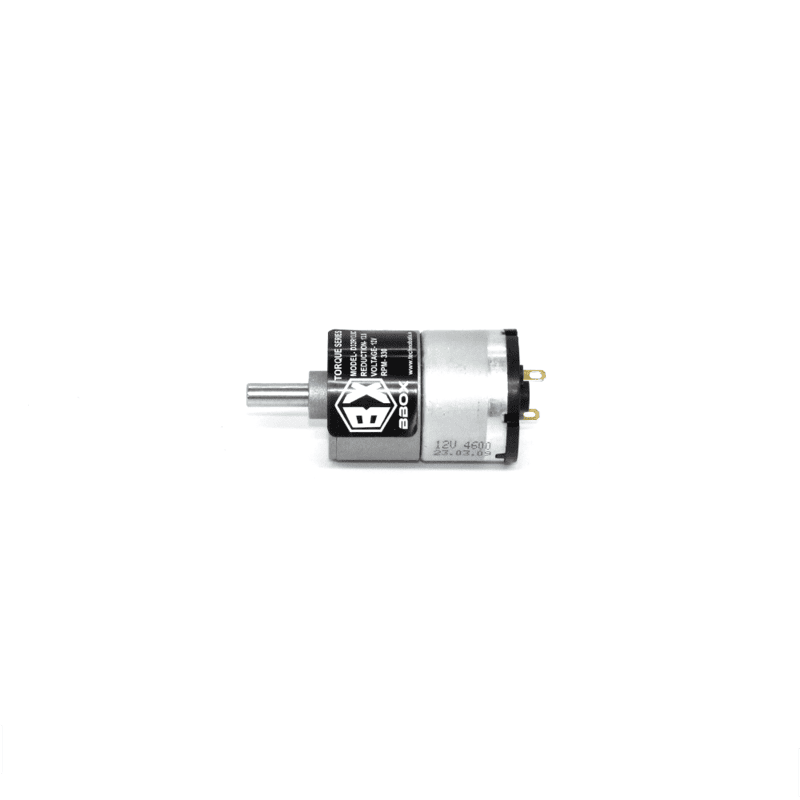

Bbox Torque Series Centric Shaft 330 RPM D32R138C
₹699.00
Features:
- Centric Shaft Design: Easy installation and alignment.
- D-Type Shaft: Compatible with various components.
- Robust Construction: Withstands demanding conditions.
- 12V Operating Voltage: Standard power source compatibility.
Note: This motor has a diameter of 32mm, so please ensure you use 32mm clamps for proper fitting and secure mounting.
Price Info
Price including GST Choose Quantity
Product Details
The Bbox Speed Series 330 RPM DC Motor - Engineered for versatile performance in a wide range of applications.
With an operating voltage range of 6V to 12V and a nominal voltage of 12V, this motor offers flexibility and compatibility with various power sources. Featuring a reduction ratio of 13.8, it ensures precise speed control and efficient operation.
The motor's rated base speed is 4600 RPM, while the no-load speed is 330 RPM, making it suitable for tasks requiring consistent performance.
Constructed with durable metal gears, it delivers reliable operation, while its torque of 0.2kg.cm and rated power of 0.5W provide the strength and efficiency needed for your projects. Upgrade your creations with the reliability and versatility of the Bbox 330 RPM DC Motor.
Specs:
- Model No: D32R13.8C.
- Operating Voltage (VDC): 6v – 12v
- Nominal Voltage (V): 12 GB
- Reduction Ratio: 13.8
- Rated Base Motor RPM: 4600 Motor No
- Load RPM: 330
- Gear Material: Metal Rated
- Torque (Kgf.cm): 0.2kg.cm
- Rated Power (W): 0.5W
- Shaft Diameter (mm): 6 mm
- Shaft Length (mm): 14mm
- Gearbox Diameter (mm): 32mm
- Motor Diameter(mm): 33mm
- Total Length (mm): 66.7mm

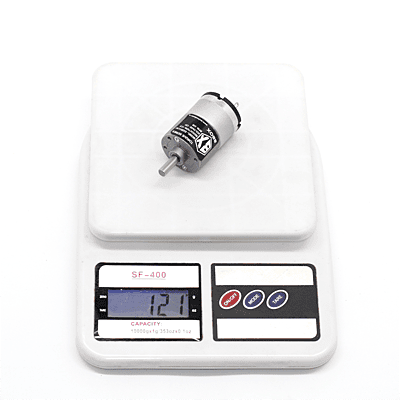

- Weight (gm): 0.135kg
- Gear box Width (L): 22.8 mm
Package Includes:
1 x Bbox Speed Series Centric Shaft 330 RPM D32R138C
3 x M3 bolts
