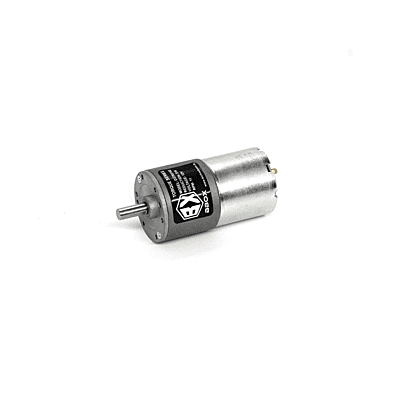

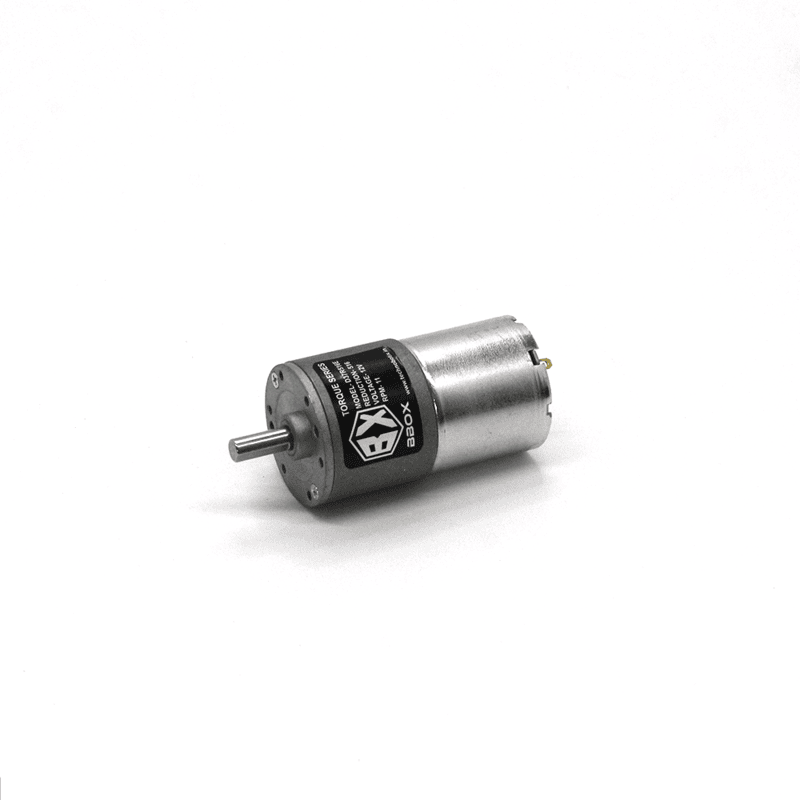

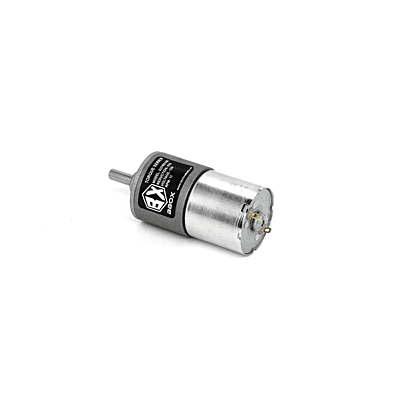

Bbox Torque Series Eccentric Shaft 11 RPM D37R516E.
₹749.00
Features:
- Low Speed: Operates at 11 RPM.
- Versatile Voltage Range: Compatible with 6V to 12V DC.
- High Reduction Ratio: Optimized for torque.
- Durable Construction: Metal gears for longevity.
- Reliable Torque: Provides 8kg.cm.
- Efficient Power: 1.1W rated power.
Price Info
Price including GST Choose Quantity
Product Details
The BBox Torque Series 11 RPM DC Motor, model no. D37R516E, epitomizes engineering excellence, meticulously crafted to deliver unparalleled reliability and precise performance across a diverse array of applications.
Notably, boasting an operating voltage range spanning from 6V to 12V and a nominal voltage of 12V, this motor offers unmatched versatility and compatibility, seamlessly adapting to various power sources and configurations with ease and efficiency.
Moreover, featuring a reduction ratio of 516, it guarantees meticulous speed control and efficient operation, ensuring optimal performance in tasks requiring intricate precision and control.
Furthermore, with a rated base speed of 5500 RPM and a no-load speed of 11 RPM, this motor showcases its capability to deliver consistent and reliable performance, even in applications necessitating low-speed rotation.
Constructed with robust metal gears, it not only ensures reliable operation but also enhances longevity, withstanding the rigors of continuous use with utmost resilience and durability.
Additionally, boasting a rated torque of 10kg.cm and a rated power of 1W, this motor provides the perfect balance of strength and efficiency, empowering you to tackle your projects with confidence and precision.
Elevate your creations and unlock new dimensions of precision and reliability with the unrivaled performance of the BBox Torque Series 11 RPM DC Motor, model no. D37R516E.
Specs:
- Model No: D37R516E.
- Operating Voltage (VDC): 6v – 12v
- Nominal Voltage (V): 12 GB
- Reduction Ratio: 516
- Rated Base Motor RPM: 5500
- Motor No Load RPM: 11
- Gear Material: Metal
- Rated Torque (Kgf.cm): 10kg.cm
- Rated Power (W): 1W
- Shaft Diameter (mm): 6 mm
- Shaft Length (mm): 14 mm
- Gearbox Diameter (mm): 37 mm
- Motor Diameter(mm): 36 mm
- Total Length (mm): 83.8mm

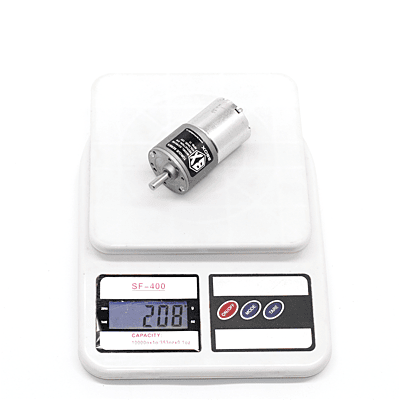

- Weight (gm): 0.2kg
- Gear box Width (L): 31 mm
Drawing:
Package Includes:
1 x Bbox Torque Series Eccentric Shaft 11 RPM D37R516E.
3 x M3 bolts
