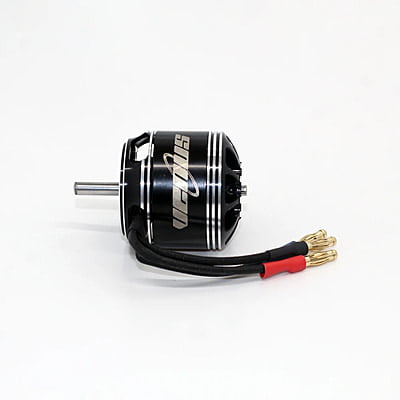

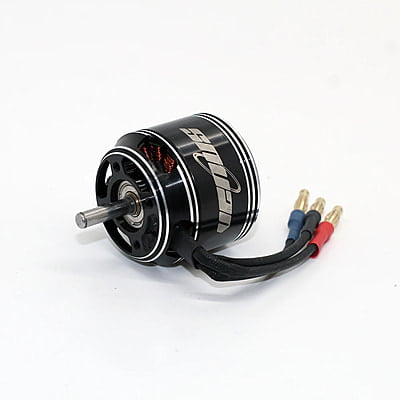

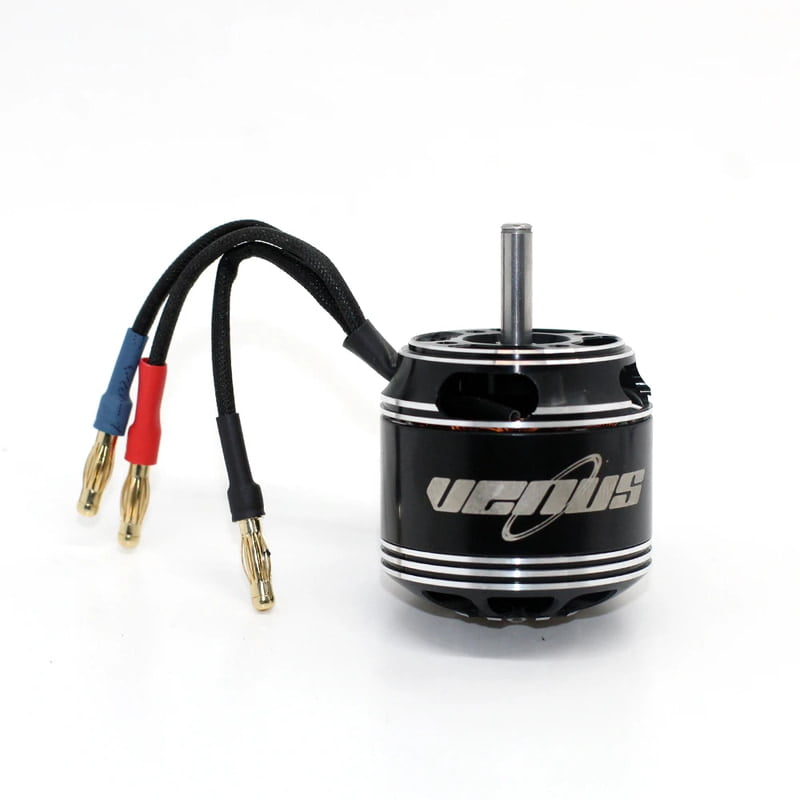

BBOX VENUS D4245EVO Fixed Wing BLDC Motor
₹2,999.00
Out of stock
Features:
Optimized Design
Compact and Lightweight
Precision Engineering
Robust Construction
Efficient Operation
Features:
Optimized Design
Compact and Lightweight
Precision Engineering
Robust Construction
Efficient Operation
Price Info
Price including GST Product Details
The BBOX VENUS D4245 800KV BLDC Motor- This meticulously crafted motor boasts a sophisticated 12N14P configuration, optimized to deliver exceptional performance across a wide range of applications.
With an impressive KV rating of 800KV, it provides ample power to meet the demands of even the most challenging tasks.
Its maximum power output of 1210.7W and peak current of 58.6A ensure reliable and efficient operation, even under heavy loads.
Despite its robust capabilities, this motor maintains a low no-load current of 1.70A at 10V, showcasing its efficiency. Additionally, with a resistance of 30.4mΩ, it offers optimal energy utilization, prolonging battery life.
Compatible with 5-6S LiPo batteries, the BBOX VENUS D4245 800KV BLDC Motor offers versatility and adaptability, making it the perfect choice for hobbyists and professionals alike who prioritize reliability, performance, and versatility.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:

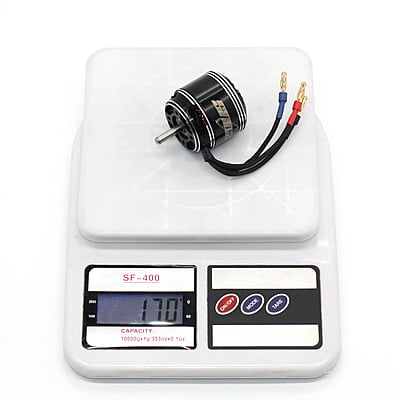

- Weight: 173.5g(Including wires)
- Motor Size: 42.8 x45mm
- Shaft Size: 5.0*63.0mm
- Stator Diameter: 35mm
- Stator Height: 15mm
- Motor Mount: 25*25mm(M3*4)
- Configuration: 12N14P
- KV: 800KV
- Max watts: 1210.7W
- Max Current: 58.6A
- No Load current: 1.70A/10V
- Resistance: 30.4mΩ
- Battery: 5-6S Lipo
Drawing/Attachment:
Package Includes:
1 x BBOX VENUS D4245EVO Fixed Wing BLDC Motor
1 x Packet of Bolts, Bullet Connectors & Other Accessories
1 x Cross Mount
1 x Propeller Mount
