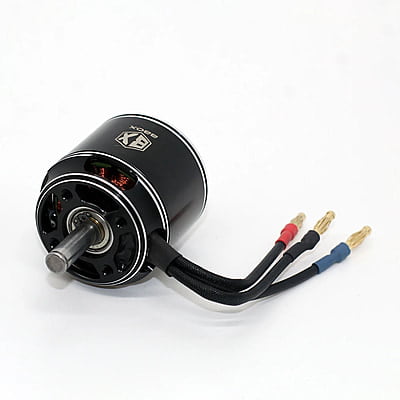

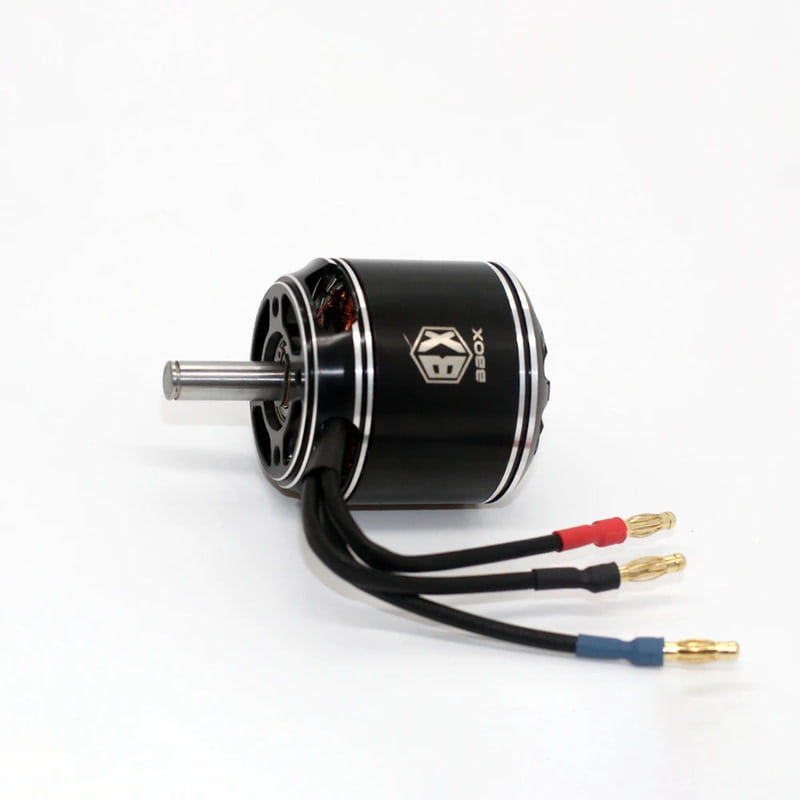

BBOX VENUS D5055EVO Fixed Wing BLDC Motor
₹6,649.00
Features:
- High-Quality Construction
- Powerful 600KV Rating
- Efficient Cooling Design
- Precision Balanced Rotor
- Low Resistance Windings
- Integrated Mounting Syste
- Compatible with various propeller sizes
Price Info
Price including GST Choose Quantity
Product Details
The BBOX Venus D5055EVO 600KV BLDC Motor is meticulously engineered for exceptional performance in a variety of applications. With its advanced 12N14P configuration and 600KV rating, this motor delivers unparalleled power and efficiency.
Drawing:
Package Includes:
Additionally, capable of handling up to 907.6W of maximum power and 102.90A of current, it ensures reliable performance even under demanding conditions.
Moreover, the Venus 5055 features a low no-load current of 1.9A and a resistance of 0.103 mΩ, optimizing energy consumption and minimizing heat generation.
Furthermore, compatible with 5-6S Lipo batteries, it offers versatile compatibility for your projects. Lastly, experience precision, reliability, and power with the BBOX Venus 5055 600KV BLDC Motor.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:

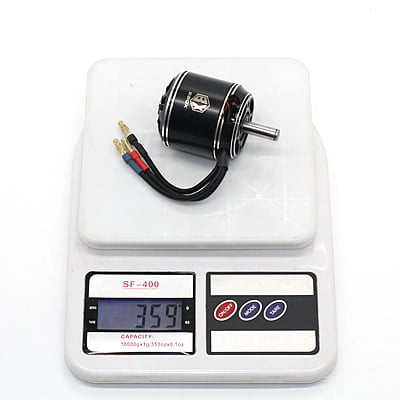

- Weight: 320g(Including wires)
- Motor Size: 50 x55mm
- Shaft Size: 8 mm.
- Motor Mount: 30*30mm(M4*4)
- Configuration: 12N14P
- KV: 600KV
- Max watts: 907.6W
- Max Current: 102.90A
- No Load current: 1.9A
- Resistance: 0.103 mΩ
- Battery: 5-6S Lipo

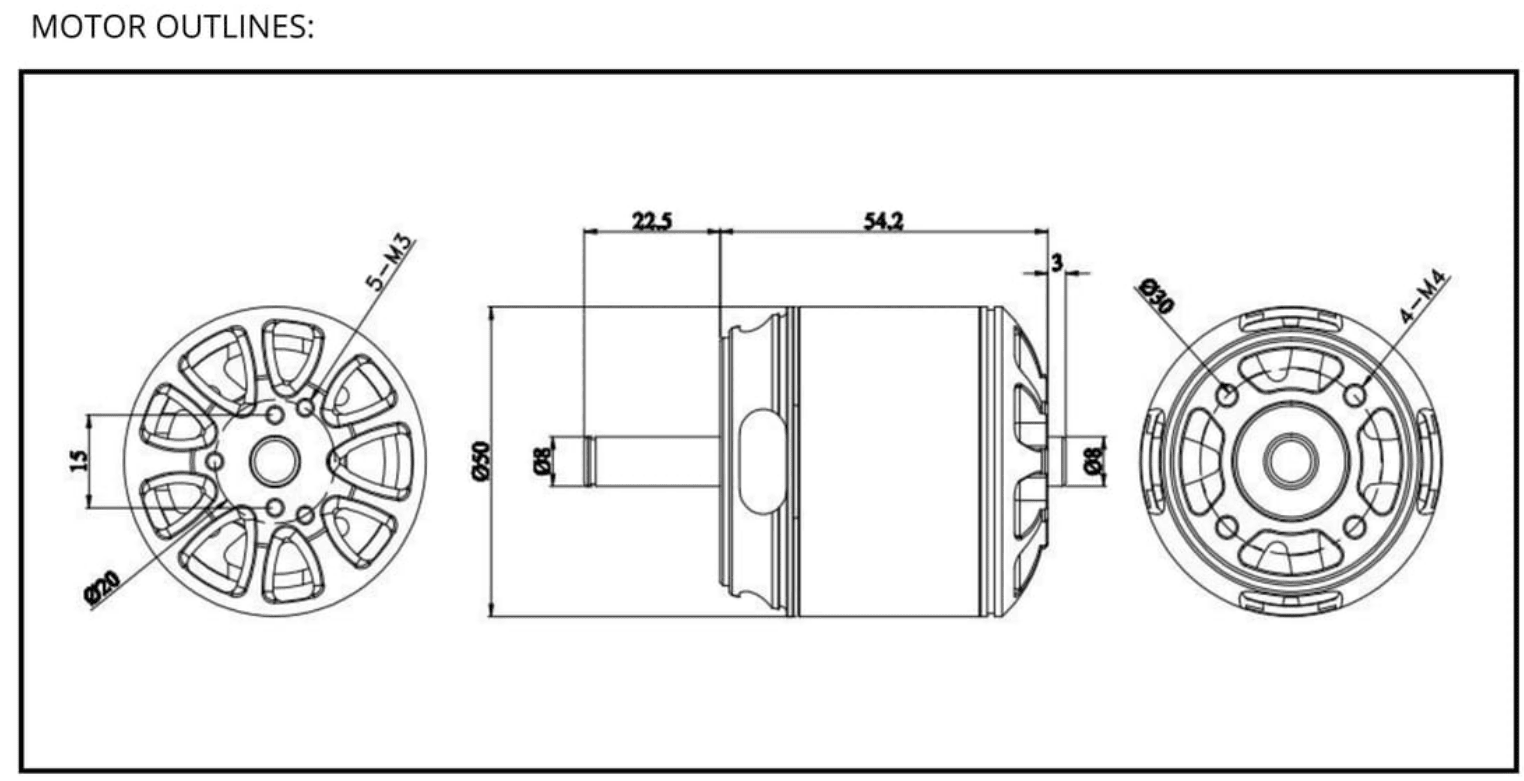

Drawing:

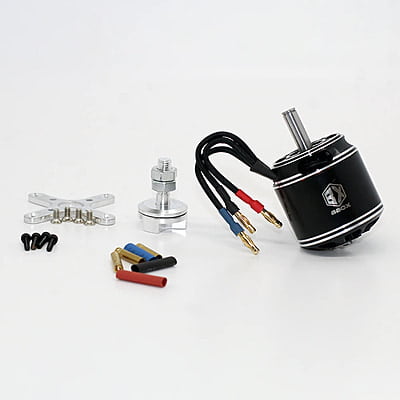

Package Includes: 1 x BBOX VENUS D5055EVO Fixed Wing BLDC Motor
1 x Packet of Bolts, Bullet Connectors & Other Accessories
1 x Cross Mount
1 x Propeller Mount
