Colson Hi Tech Performa wheel 3 ½ x 1 ¼ in GREY (88.9 x 31.75 mm)
₹429.00 - ₹929.00
- Quiet Rolling: Minimizes noise.
- Impact Resistant: Durable.
- Floor Protective: Preserves floors.
- Shock Absorption: Protects equipment.
- Debris Rejection: Ensures long service life.
- Easy Rolling and Turning: Smooth movement.
- Maximum Weather-ability: All-weather resistant.
- Resistant to elements: Chemical, Water, and Steam Resistance.
Adaptor
Product Details
Colson Performa Wheel have long been a favorite of combat robot builders. The wheels in this series have been used on all sizes of robots, from 1lb Antweights to 340lb SuperHeavyweights! They are very durable, and provide excellent traction.
Drawing:
Package Includes:
Moreover, Colson Performa wheels offer the advantages of both hard and soft tread materials in a single wheel. Like a hard tread wheel, Performa rolls easily and is very durable. Like a soft tread wheel, it rolls quietly, protects floors and resists impacts with a cushion ride.
Moreover, It also features maximum weatherability, low temperature flexibility, resistance to chemicals, water and steam, and rejects floor debris such as metal shavings.
Furthermore, Non-marking thermoplastic elastomer tread is permanently bonded to durable polyolefin wheel core. The rubber is 65 ±5 Durometer Shore A scale. No keyway is provided in these wheels, depending on your application, you may need to add a keyway yourself.
Lastly, Some of the smaller wheels come with a seperate bearing to be added for use as a freewheel.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Part Number: 2.00003.441
- Wheel Performa: Rubber
- Wheel Type: Flat Gray
- Tread Series: 2 Series (Capacity up to 325 lbs)
- Wheel Diameter [INCH]: 3 1/2
- Tread Width [INCH]: 1 1/4
- Bearing Type: Delrin
- Capacity [Pounds]: 250
- Thread Guard: NONE
- Bearing Bore [INCH]: 1/2
- Bore Less Bearing [INCH]: 29/32
- Hub Length [INCH]: 1′ 7/16
- Spanner Bushing Bore [INCH]: 3/8
- Spanner Bushing Length [INCH]: 1 ‘1/2
- Weight [Grams]: 170
Drawing:

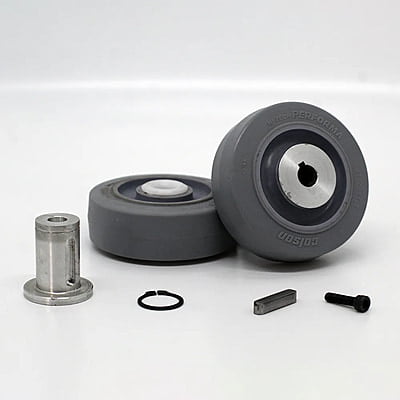

Package Includes:1 x Colson Hi Tech Performa wheel 3 ½ x 1 ¼ in GREY (88.9 x 31.75 mm)
1 x Adaptor / Bush
1 x M5 Allen bolt
1 x M6 Key
1 x External Circlip
