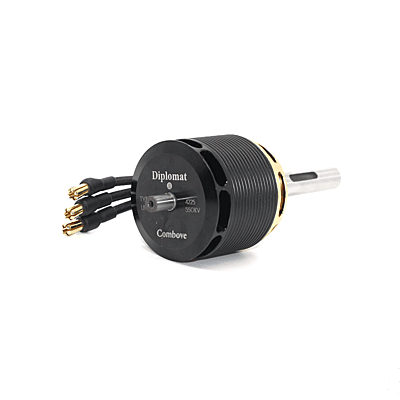

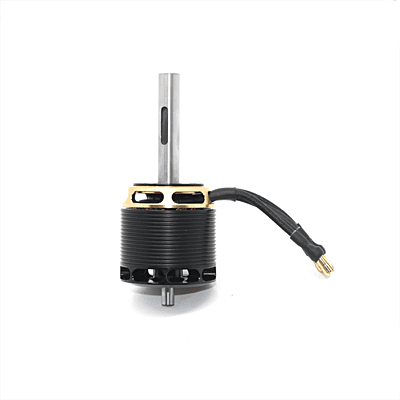

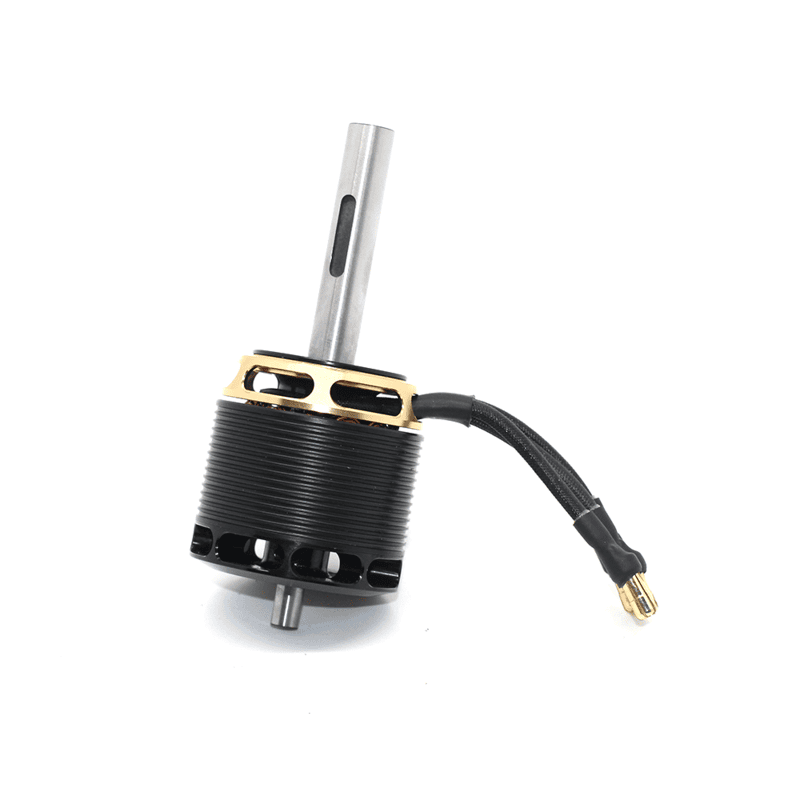

COMBOVE TYPE III 4225 550 KV BLDC MOTOR
₹20,799.00
Price Info
Price including GST Choose Quantity
Product Details
The COMBOVE TYPE II 4225-550 KV BLDC Motor - a powerhouse of performance tailored to meet your most demanding needs. Operating at 550KV RPM/Volt, this motor delivers exceptional power and precision.
Additionally, with a no-load current of 0.89 Amps at 10 volts and a motor resistance of 0.018 Ohms, it ensures efficient energy utilization.
Moreover, capable of handling a maximum continuous current of 90 Amps and continuous power output of 3750 Watts, it's ready to tackle any task.
With a maximum peak current of 130 Amps for 3 seconds and peak power output of 5700 Watts, it offers extra muscle when needed. The motor timing is adjustable from 5 to 15 degrees, providing flexibility in performance optimization.
Furtehrmore, drive frequencies ranging from 8kHz to 32kHz ensure smooth and responsive operation across various applications.
Whether you're into drones, robotics, or electric vehicles, the COMBOVE TYPE II 4225-550 KV BLDC Motor is your go-to choice for unparalleled performance and reliability.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Stator Diameter: 42 mm
- Stator Thickness: 25 mm
- No. of Stator Arms: 12
- No. of Stator Poles: 10
- Motor Wind: 6T+5T
- Delta Motor Wire: 1-Strand 1.2 mm
- Motor Kv: 550KV RPM/Volt
- No-Load Current (Io/10V): 0.89 Amps
- Motor Resistance (RM): 0.018 Ohms
- Max Continuous Current: 90 Amps
- Max Continuous Power: 3750 Watts
- Weight: 370 Grams
- Outside Diameter: 52.5 mm
- Shaft Diameter: 6 mm
- Body Length: 54.5 mm
- Overall Shaft Length: 95 mm
- Max Lipo Cell: 12s
- Max Peak Current: 130A (3 seconds)
- Max Peak Power: 5700 Watts (3 seconds)
- Motor Timing: 5deg to 15 deg
- Drive Frequency: 8kHz to 32kHz
Package Includes:
1 x COMBOVE TYPE III 4225 550 KV BLDC MOTOR
1 x Packet of Bolts, Bullet Connectors with Sleeves
