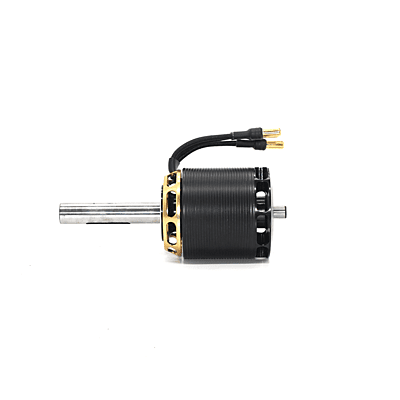

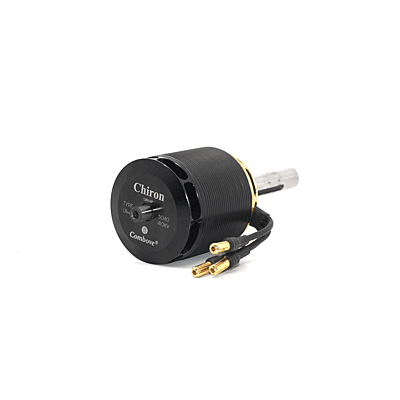

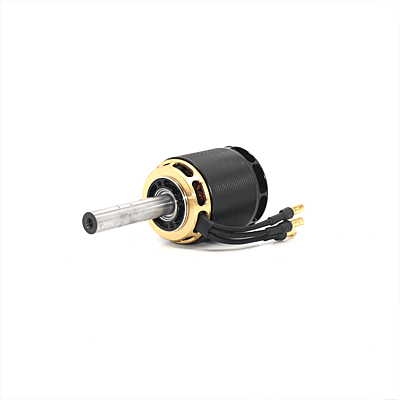

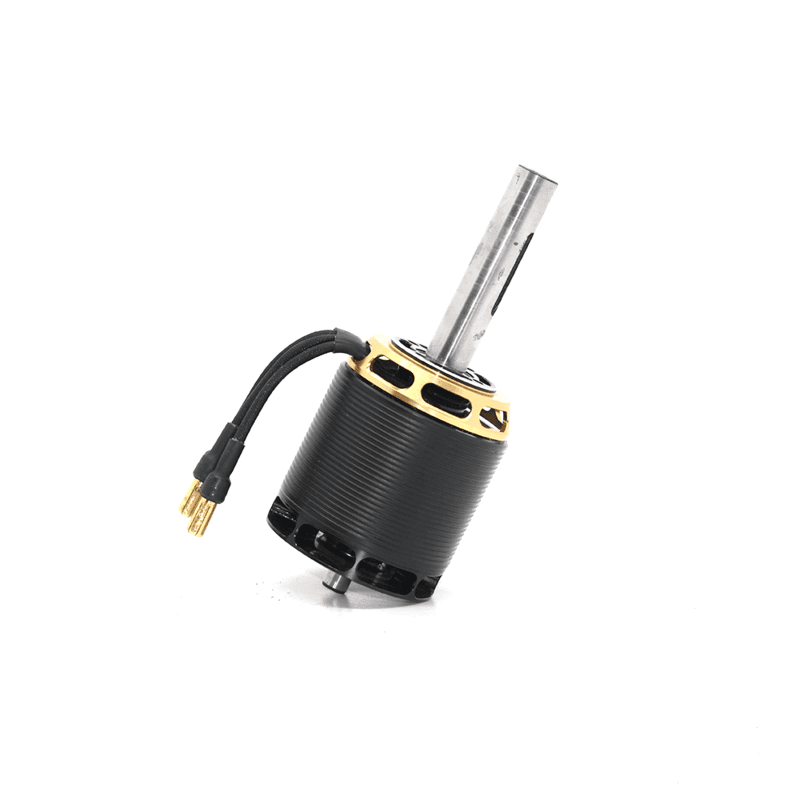

COMBOVE TYPE II 5040 410 KV BLDC MOTOR
₹45,999.00
Price Info
Price including GST Choose Quantity
Product Details
The COMBOVE TYPE II 5040-410KV BLDC Motor: a robust and high-performance motor designed to exceed expectations. With 10 magnet poles and 2-strand 1.3 mm motor wire, it's engineered for optimal efficiency and power delivery.
Additionally, operating at 410 KV RPM/Volt, this motor offers impressive performance with a no-load current of 3.1 Amps at 10 volts and a motor resistance of 0.008 Ohms, ensuring efficient energy utilization.
Moreover, capable of handling a maximum continuous current of 165 Amps and continuous power output of 8180 Watts, it's built to tackle even the most demanding tasks.
In addition,with compatibility ranging from 12s to 14s LiPo cells, it provides versatility for various applications. Set at a motor timing of 5 degrees and a drive frequency of 8 kHz, this motor offers precise control and responsiveness.
Whether it's drones, robotics, or other high-power applications, the COMBOVE TYPE II 5040-410KV BLDC Motor is the ultimate choice for superior performance and reliability.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Stator Diameter: 50 mm (1.96 in)
- Stator Thickness: 40 mm (1.57 in)
- No. of Stator Poles: 14
- Magnet Poles: 10
- Motor Wire: 2-strand 1.3 mm
- Motor Kv: 410 KV RPM / Volt
- No Load Current (Io/10v): 3.1 Amps
- Motor Resistance: 0.008 Ohms
- Max Continuous Current: 165 Amps
- Max Continuous Power: 8180 Watts
- Weight: 860 Grams
- Outside Diameter: 63.5 mm
- Shaft Diameter: 8 mm (0.31 in)
- Body Length: 75.5 mm
- Max Lipo Cell: 12s-14s
- Motor Timing: 5deg
- Drive Frequency: 8 khz
Package Includes:
1 x COMBOVE TYPE II 5040 410 KV BLDC MOTOR
1 x Packet of Bolts, Bullet Connectors with Sleeves
