ElectroCraze 60S-BD v2 – Single Channel 60A Bidirectional Brushed Motor Controller
Single-channel high-current bidirectional brushed motor controller with 60A continuous (80A peak), 8–24V (2S–6S LiPo) input, integrated BEC, overcurrent and signal loss protection. Ideal for high-power RC vehicles, combat robots, rock crawlers and industrial platforms.
- 60A continuous / 80A peak output for powerful brushed motors
- Wide 8V–24V (2S–6S LiPo) input range
- Bidirectional control with Forward / Reverse LED indication
- Overcurrent protection with built-in current limiting
- Signal loss protection cuts motor output if the RC signal drops
- Integrated BEC powers your receiver, no separate BEC needed

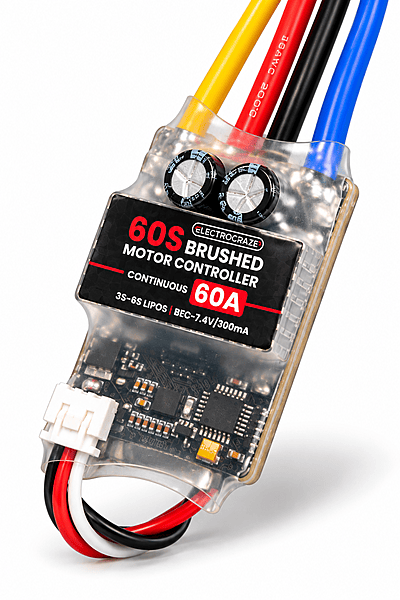

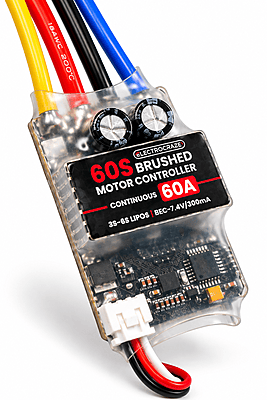

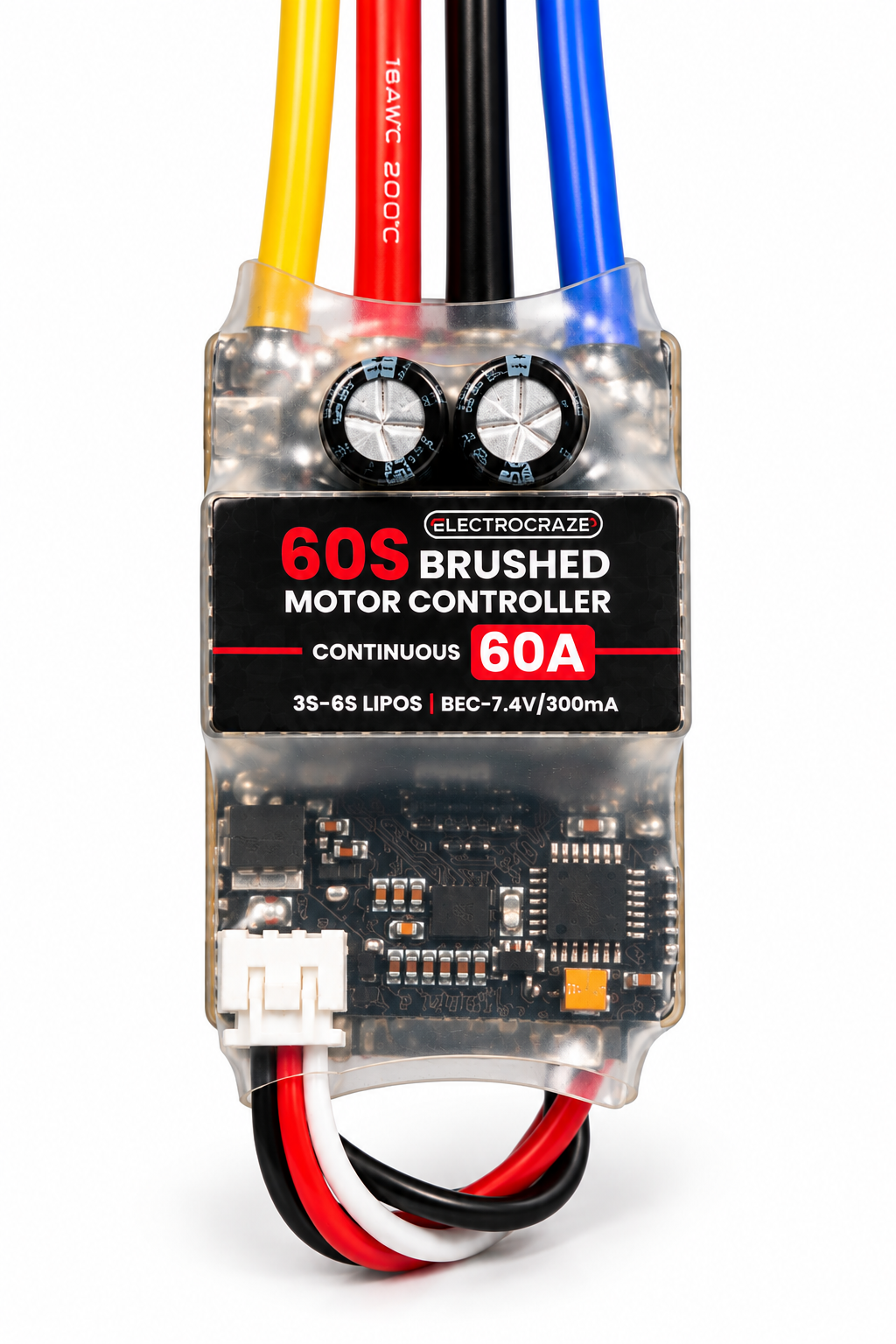

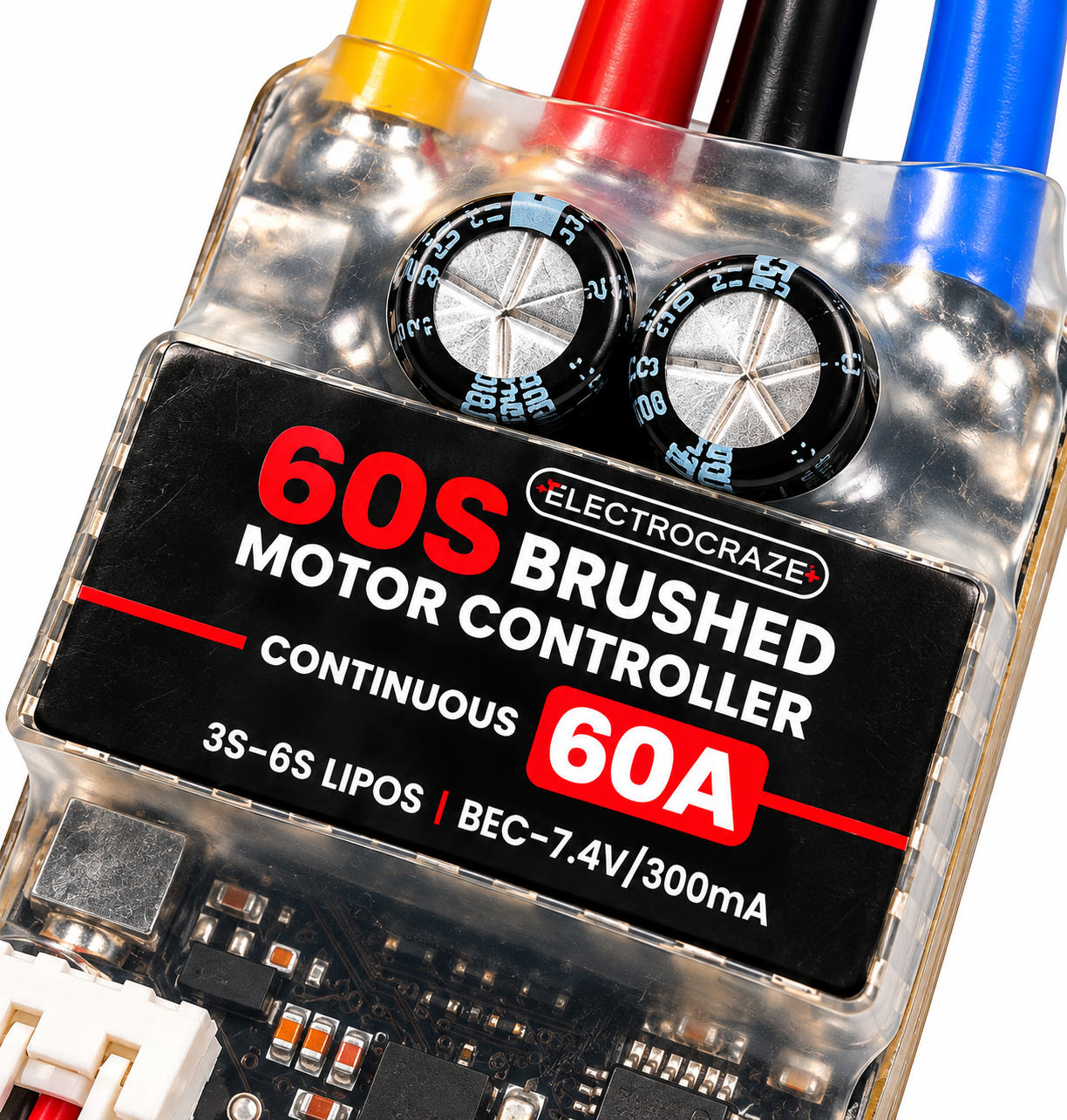

The ElectroCraze 60S-BD v2 is a single-channel, high-current bidirectional brushed motor controller built for demanding applications. It delivers 60A continuous and 80A peak output across an 8–24V (2S–6S LiPo) supply and takes a standard servo (PWM) signal from any RC receiver.
Overcurrent protection and signal loss protection keep your motor and controller safe, and the integrated BEC powers your receiver without a separate BEC. The heat-shrink protected PCB keeps the controller compact and ready for heavy-duty builds.
Key Features:-
- 60A continuous output: high sustained current for powerful brushed motors
- 80A peak current: handles extreme burst loads
- Overcurrent protection: built-in current limiting
- Signal loss protection: safely cuts motor output on RC signal interruption
- Integrated BEC: powers the receiver directly, no separate BEC needed
- Forward / Reverse LED indication: white LED for forward, red LED for reverse
Applications:-
High-power RC vehicles • Combat robots • RC rock crawlers • Heavy robotic platforms • RC boats & submarines • Industrial RC systems
LED Indicator Guide:-
| LEDs | Meaning |
|---|---|
| Green solid | Valid power, controller on |
| Blue solid | Valid RC signal received and active |
| Green solid + Blue blinking | Power OK, no RC signal received |
| White solid | Forward |
| Red solid | Reverse |
Wiring:-
- Power input: Red → Battery (+), Black → Battery (−)
- Motor output: Yellow (M1A) → Motor (+), Blue (M1B) → Motor (−)
- Signal: connect the servo cable to RC channel 1 on your receiver. Check ground, power and signal pin alignment. Re-bind the transmitter/receiver if no signal is detected on power-on.
The full wiring diagram is in the datasheet PDF available in the Downloads tab on this page.
Important Usage Notes:-
- Check battery polarity before connecting power. Reversed polarity causes irreversible damage.
- Designed for 8V–24V only. Exceeding 24V causes permanent damage, so verify battery cell count and voltage before connecting.
- The board gets hot during and after use. Do not touch it right after running or place it near low-melting-point materials.
- Do not wrap it in insulating material; heat must dissipate freely to sustain the 60A continuous rating.
- Keep conductive materials away from the PCB. The current limiter does not protect against instantaneous short circuits between the output wires.
- In high-vibration or combat robot builds, secure the heavy components (power capacitors) with silicone or epoxy.
| Model | ElectroCraze 60S-BD v2 |
|---|---|
| Channels | Single channel |
| Input Voltage | 8V – 24V (2S to 6S LiPo) |
| Output Current (Continuous) | 60 A |
| Output Current (Peak) | 80 A |
| Signal Input | Standard servo input |
| Signal Range | 1100 – 1900 µs |
| Throttle Centre | 1460 – 1540 µs |
| Dead Band (from centre) | 40 µs |
| BEC Output | 7.4V, 100 mA max |
| Input Wire | 12 AWG silicone (Red & Black) |
| Output Wire | 14 AWG silicone (Yellow & Blue) |
| Dimensions | 66.9 × 47.9 × 24.9 mm (excl. wires) |
| Weight | 94 g (incl. wires) |
Package Includes:-
- 1 × ElectroCraze 60S-BD v2 Single Channel 60A Bidirectional Brushed Motor Controller (with pre-attached wires and servo connector)
