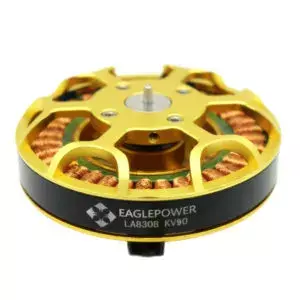

EAGLE POWER LA 8308 KV90 MOTOR

The Eaglepower LA 8308 KV90 is a high-performance brushless motor designed for demanding applications such as large drones, RC aircraft, and DIY robotics projects.

Featuring a robust metal construction and an 8308 iron core size, this motor delivers a KV rating of 90 RPM/V, ensuring efficient power output.

It supports 6S to 12S LiPo batteries, with a maximum continuous current of 22A and a peak power output of 900W.The motor's low idle current of 0.6A at 24V and internal resistance of 0.186 ohms contribute to its energy efficiency.

Measuring 92×28.5 mm and weighing 336 grams, the Eaglepower LA 8308 KV90 combines compactness with high power, making it an ideal choice for various high-load applications.

Specs:

• Motor KV (RPM/V): 90

• Compatible LiPO Batteries: 6S to 12S

• Idle Current(A): 0.6A at 24V

• Material: Metal

• Motor Size (mm/inch): 92×28.5mm

• Weight (g): 336

• Continuous Current (A): 22

• Max. Power (W): 900

• Internal Resistance (Ohm): 0.186

Package Contents

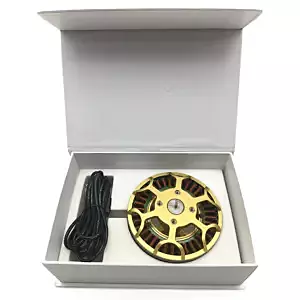

• 1 × Eaglepower LA 8308 KV90 Motor

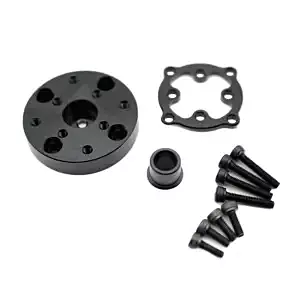

• 1 × Accessories Set (as shown in product images)
