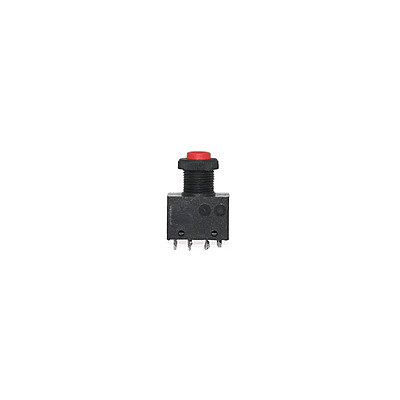

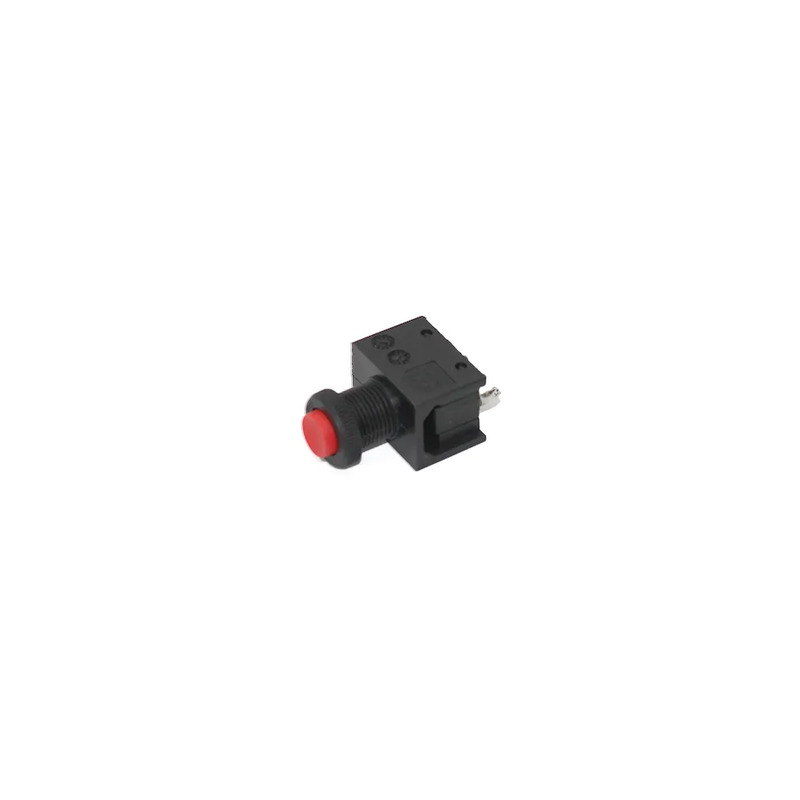

ELCOM Micro Power Switch (Unshrouded CAP) MPU-1

The ELCOM Micro Power Switch (Unshrouded Cap), MPU-1, is a versatile and reliable component designed to meet various electrical switching needs. With a contact and voltage rating of 4A, 250V AC, it ensures efficient performance in a range of applications.

Featuring solder-type terminals, this switch is suitable for use in diverse environments, with a temperature range spanning from -20°C to +85°C, accommodating both with and without load conditions. Its permissible soldering temperature of 270°C for up to 5 seconds ensures secure and swift installation.

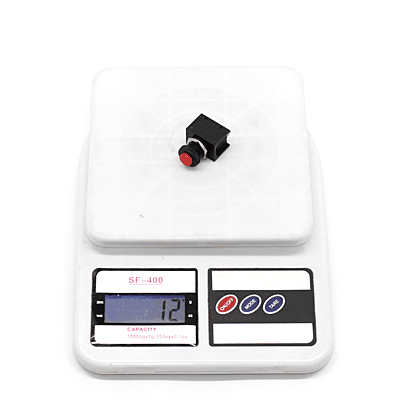

Weighing just 10.3 grams, the MPU-1 is lightweight yet sturdy, making it easy to handle and install. With insulation resistance reaching 100 M Ohms at 500 VDC H.V., it offers excellent electrical protection.

This switch undergoes rigorous testing, including a breakdown test of 1 KVAC for 1 minute, ensuring robustness and reliability in operation. Its terminals, crafted from brass and silver-plated, ensure secure connections and low contact resistance of 20 m Ohms.

Available actuator colors in red and green provide visual indication, enhancing usability and customization. The switch type, unshrouded, SPDT (Single Pole Double Throw), momentary micro switch, offers versatile functionality for various circuit configurations and applications. Whether in industrial, automotive, or consumer electronics settings, the ELCOM MPU-1 stands as a dependable solution for precise and efficient electrical switching needs.
