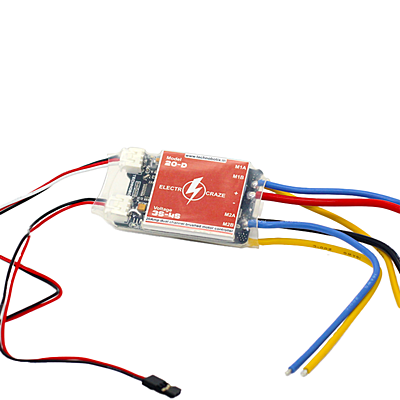

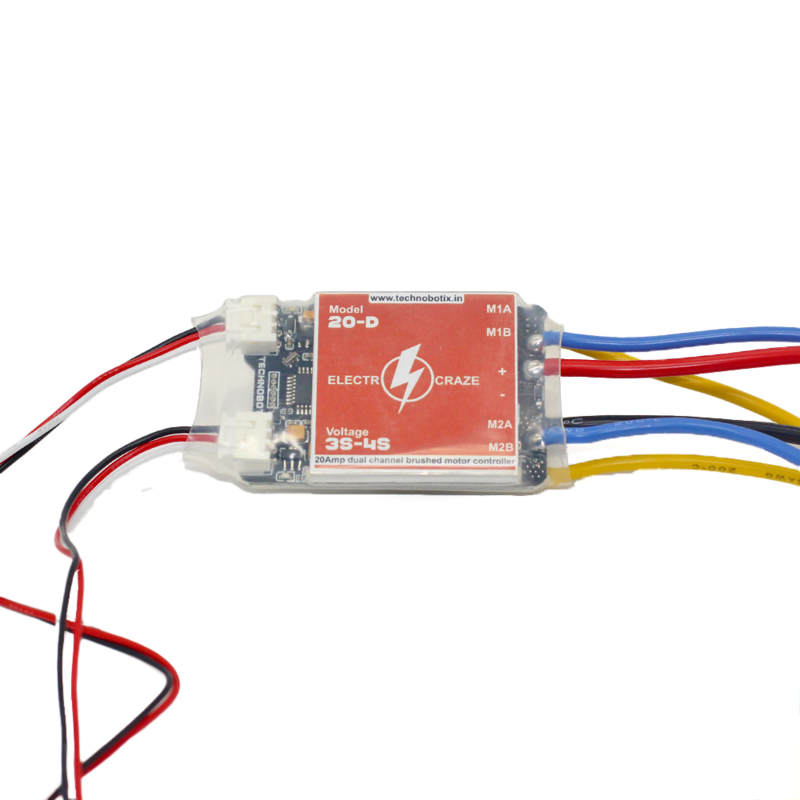

ELECTROCRAZE 20D-BD Dual Channel 20A Brushed Motor Controller

The Electrocraze 20D-BD, a cutting-edge electronic control module designed to electrify your projects with precision and power. Boasting a Built-in Battery Eliminator Circuit (BEC) capable of delivering a stable 5 volts at a maximum current of 100 milliamps, this compact dynamo ensures consistent performance without the need for external power sources.

Crafted for versatility, the Electrocraze 20D-BD seamlessly integrates with R/C servo inputs, offering seamless compatibility across a range of applications. Weighing in at just 50 grams (excluding wires), it adds minimal bulk while maximizing functionality, making it ideal for projects where weight is a concern.

Equipped to handle a wide spectrum of voltages, the Electrocraze 20D-BD accepts inputs within the range of 11 to 17 volts, accommodating 3S to 4S batteries with ease. Its robust design ensures reliability under varying power conditions, giving you peace of mind during operation.

When it comes to output, the Electrocraze 20D-BD truly shines. Delivering a continuous output current of 20 amps per channel, it empowers your projects with ample power for demanding tasks.

Need an extra surge of power? No problem. The controller can handle peak output currents of up to 45 amps per channel for short durations (5–10 seconds only). This spike capability provides the temporary boost needed during high-load conditions.

Note: 45A is not a continuous rating. If the motor draws more than 20A for longer than 10 seconds, there is a high risk of ESC damage. Always operate within the recommended continuous limits for safe and reliable performance.

Whether you're building a remote-controlled vehicle, animatronic creation, or any other electrifying endeavor, the Electrocraze 20D-BD is your ultimate partner in power and precision. Harness its capabilities to bring your ideas to life and unleash the full potential of your projects like never before.

Specs:

• Input Voltage Range: 11-17V (3S-4S)

• Output Current (Continuous): 20 amps/channel

• Output Current (Peak): 45 amps/channel ((5–10 seconds only)

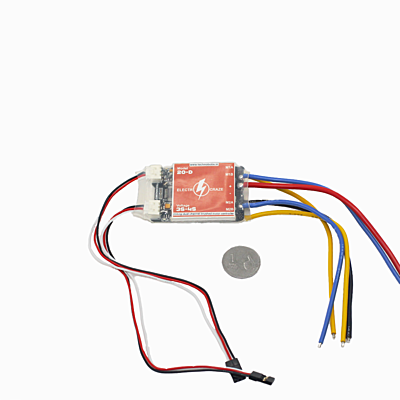

• Dimensions: 62 x 40 x 16 mm (excluding wires)

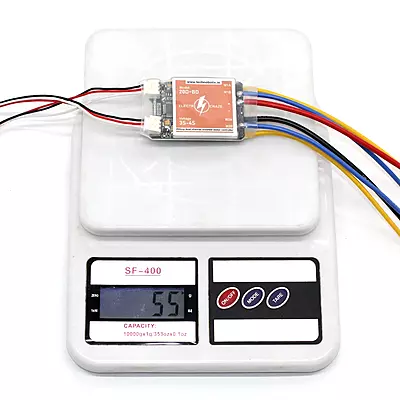

• Weight: 50g (excluding wires)

• Input: Standard Servo Input

• Signal Range: 1100 – 1900 us

• Throttle Centre: 1460-1540 us

• Dead Band (From Centre): 40 us

• BEC: Yes (5V 100mA max)

• Brake: Yes

• Signal Loss Protection: Yes

• Input Wire Thickness: 14 AWG Silicone Wire (Red & Black)

• Output Wire Thickness: 16 AWG Silicone Wire (Yellow & Blue)
