ELECTROCRAZE 35S-BL AM32 35A Bidirectional BLDC Motor Controller
Features:
Compact Design: 40x15x10mm, easy to integrate
Lightweight: Just 12g (with wires)
High Current Capacity: 35A continuous with cooling
Wide Voltage Range: 2S-4S LiPo (7.4V-14.8V)
Built-in BEC: 3V-5V/5A stable output
AM32 Firmware: Smooth throttle, high efficiency
The Electrocraze 35S-BL AM32 35A Brushless Motor Controller is a compact and lightweight ESC, measuring 40x15x10mm and weighing just 12g (including wires).
This ESC supports a continuous current of 35A with adequate cooling and operates within a 2S-4S LiPo voltage range (7.4V-14.8V). The built-in BEC delivers 3V-5V/5A, ensuring a stable power supply for receivers and peripherals.
It features 100mm 18AWG power wires, 170mm 18AWG motor wires, and a 200mm 26AWG signal wire with a connector, providing secure and efficient connectivity.
Powered by AM32 firmware, this ESC offers smooth throttle response, high efficiency, and precise motor control, making it an excellent choice for RC planes, drones, and robotics applications.
Specs:

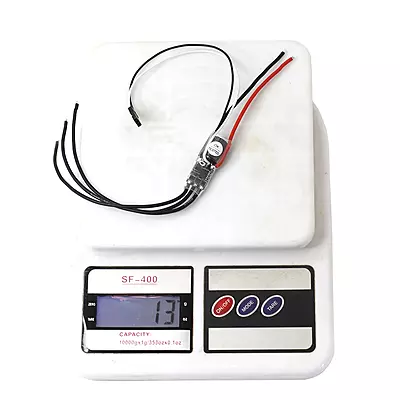

Weight (including wires): 12g
Current Rating (with adequate cooling): 35A
Input Voltage: 2S-4S (7.4V to 14.8v)
BEC: 3V-5V/5A
Dimensions (WHL): 40 X 15 X 10 (All dimensions are in mm)
Wire Specifications: 100mm 18AWG (power) + 170mm 18AWG (motor), 200mm 26AWG wire with connector (signal)
Package includes:
1 x Electrocraze 35S-BL AM32 35A Brushless Motor Controller
