ELECTROCRAZE 60S-BD SINGLE CHANNEL 60AMP BRUSHED MOTOR CONTROLLER
Features:
Reverse Option: Quick direction changes in tight spaces.
Signal-Loss Failsafe: Activates failsafe mode for safety during signal loss.
Regenerative Braking: Enhances control and energy efficiency.
Isolated Heat Sink Plate: Efficiently dissipates heat for prolonged performance.
The Electrocraze 60S - your ultimate brushed motor controller. With an input voltage range of 7-24V (2S-6S) and a continuous output current of 60 Amps (peak up to 100 Amps), it's the powerhouse your project needs.
Compact and lightweight at just 50 grams (excluding wires), it's easy to integrate. Plus, with a standard servo signal input of 1100-1900us, compatibility is seamless. Elevate your robotics game with Electrocraze 60S! #Electrocraze #Robotics
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
Input Voltage Range: 7-24V (2S- 6S)
Output Current (Continuous): 60 Amp
Output Current (Peak): upto 100 Amp
BEC: N.A.

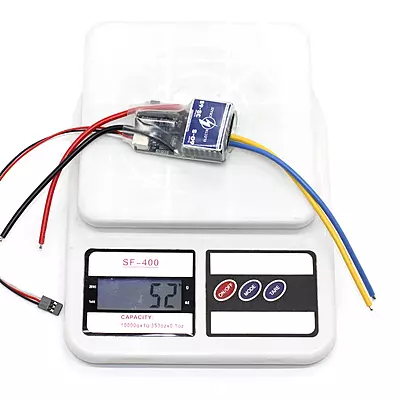

Weight: 50 gram(excluding wires)
Input: Standard servo signal 1100-1900us
Dimensions: 62 x 40 x 16 mm (excluding wires)
