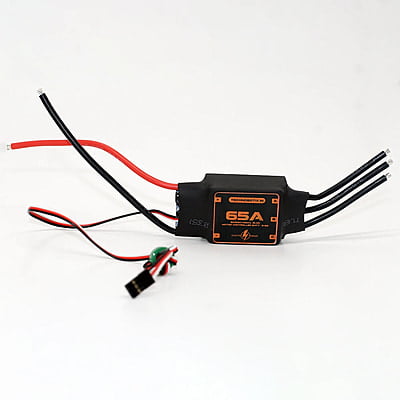

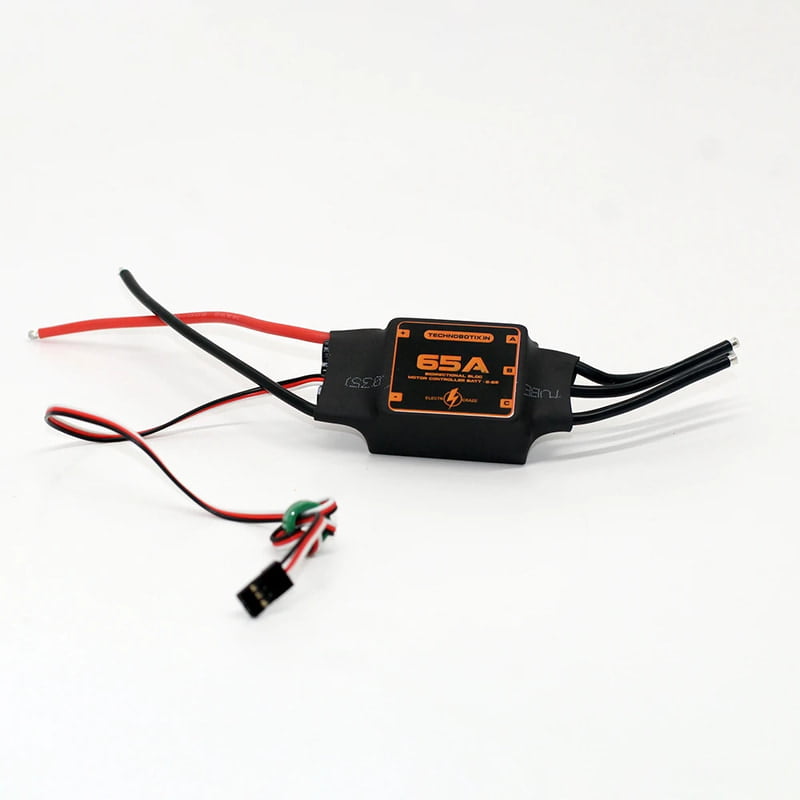

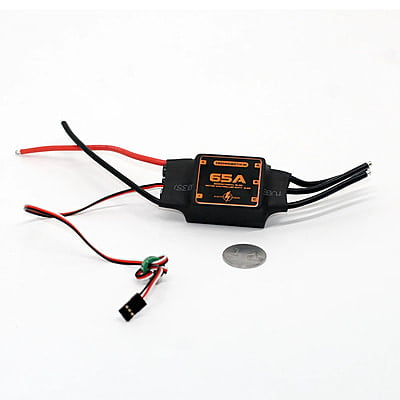

ELECTROCRAZE 65S-BL Simonk Bidirectional BLDC Motor Controller
₹3,299.00
Out of stock
Features:
- High Current Handling: Sustains 65A for 40 seconds and 100A for 10 seconds.
- Battery Eliminator Circuit (BEC): Powers onboard electronics directly.
- Comprehensive Control Features: Provides forward, reverse, and brake functions.
- SimonK Firmware: Pre-installed firmware for optimized performance.
- Thermal Protection: Prevents overheating for longevity.
- Bidirectional Operation: Supports seamless forward and reverse movements.
Price Info
Price including GST Product Details
The Electrocraze 65A is a high-performance brushless motor controller designed to meet the demanding needs of RC enthusiasts and hobbyists. Firstly, it operates within a voltage range of 7.2V to 24V, providing versatility for various applications. Furthermore, with impressive current handling capabilities, it can sustain 70A for up to 40 seconds and 100A for up to 10 seconds, ensuring robust performance under intense conditions.
Moreover, the Electrocraze 65A includes a Battery Eliminator Circuit (BEC), allowing it to power onboard electronics directly. Additionally, its control features include forward, reverse, and brake functions, providing comprehensive maneuverability and control.
In addition to its technical specifications, the Electrocraze 65A is compact and lightweight, measuring 60mm x 35mm x 18mm and weighing only 70 grams. It also utilizes high-temperature, flexible silicone wires, ensuring durability and reliable performance even under high-stress conditions. Whether you're upgrading your RC vehicle or building a custom project, the Electrocraze 65A offers the reliability and performance you need.
Specs:
- Motor type: Brushless
- Voltage range: 7.2 – 24V
- Current handling: 65a (40sec) / 100a (10 sec)
- Battery Eliminator Circuit (BEC): Yes
- Control: Fwd/Rev/Brake
- Dimensions (mm): 60 x 35 x 18

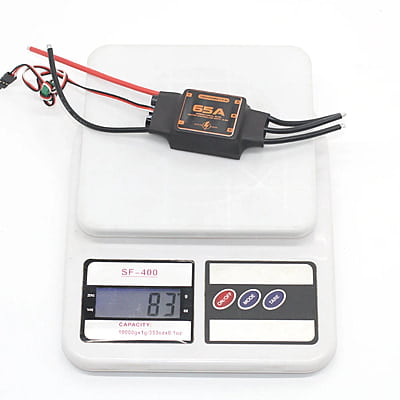

- Weight (g): 70
- Wire type: High temp. flexible silicone
Package Includes:
1 x ELECTROCRAZE 65A BLDC ESC (REVERSIBLE)
Important Note:
When using two Electrocraze 65A Bidirectional Brushless Motor Controllers (SimonK) with inbuilt BEC functions in the same receiver, it’s important to prevent both BECs from powering the receiver simultaneously. Multiple BECs supplying power to the same circuit can create voltage regulation issues and may potentially damage the receiver or the motor controllers.
To handle this:
- Disable one BEC:
Disconnect the red wire (positive wire) from the receiver connector of one of the Electrocraze 65A motor controllers. This disables the BEC function for that specific controller, ensuring that it does not supply power to the receiver. The other Electrocraze 65A controller will continue powering the receiver via its BEC. - Keep ground and signal wires connected:
Make sure both Electrocraze 65A controllers’ ground (black wire) and signal (white or yellow wire) wires remain connected to the receiver. This will allow both controllers to receive control signals from the receiver without power conflicts.
This way, you ensure that only one BEC is supplying power to the receiver, preventing interference or potential damage to your components.
