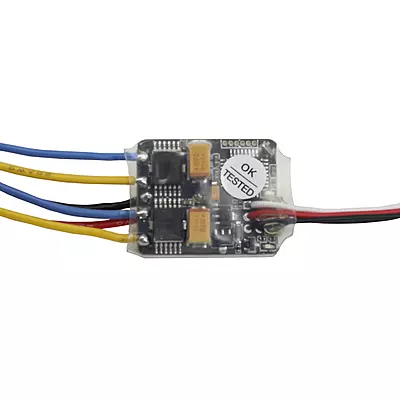

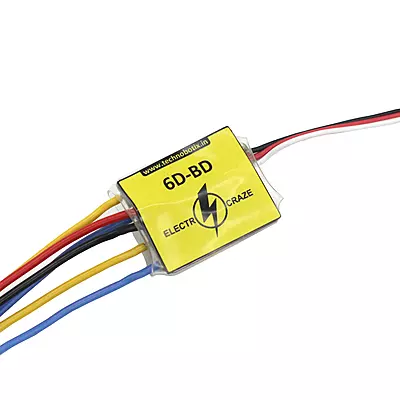

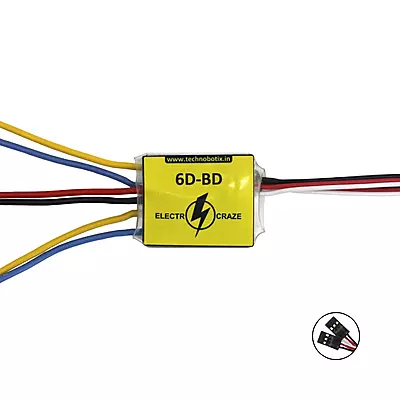

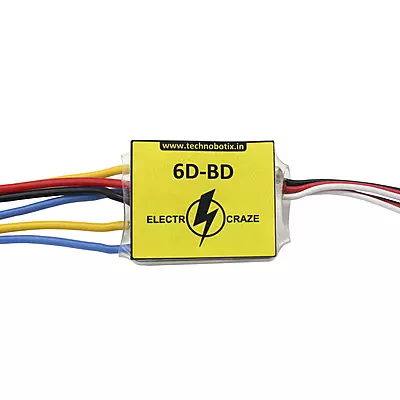

ELECTROCRAZE 6D-BD DUAL CHANNEL 6AMP BRUSHED MOTOR CONTROLLER
₹2,199.00
- Dual Channel: Controls two motors simultaneously.
- High Amperage: Supports up to 6A per channel.
- Precise Control: Fine-tuned speed and direction control.
- Compact Design: Space-efficient integration.
- Wide Voltage Range: Compatible with various input voltages.
- Built-in Protection: Safeguards against overcurrent and overheating.
Price Info
Price including GST Choose Quantity
Product Details
The Electrocraze 6D Dual Channel 6A Brushed Motor Controller, engineered for precision and performance in motor control. With an input voltage range of 7-15V (2S-4S), it delivers a continuous output current of 6A per channel, peaking at 8A for high-demand situations.
Featuring a signal range of 1100 – 1900 us and signal loss protection, this controller ensures reliable communication and safeguards against interruptions. Whether you're controlling motors for robotics, RC vehicles, or other applications, the Electrocraze 6D provides the power and stability you need to drive your projects forward with confidence.
Specs:
- Input Voltage Range: 7-15V (2S-4S)
- Output current continuous: 6amps/channel
- Output Current (Peak): 8Amps/ channel
- Dimensions: 25 x 20 x 5mm (excluding wires)
- Brake: Yes
- BEC: Yes (5v 100mA max)
- Signal loss protection: Yes
- Weight: 10gms (excluding wires)
- Input: Standard Servo Input
- Signal Range: 1100 – 1900 us
- Throttle Centre: 1460-1540
- Dead Band (From Centre): 40us
- Input Wire Thickness: 20 AWG Silicone Wire
- Output Wire Thickness: 20 AWG Silicone Wire
Package Includes:
1 x ELECTROCRAZE 6D-BD DUAL CHANNEL 6AMP BRUSHED MOTOR CONTROLLER
