ELECTROCRAZE 85A Simonk BLDC ESC (REVERSIBLE)
₹4,199.00
Out of stock
Features:
- High Current Handling: Sustains 100A
- Battery Eliminator Circuit (BEC): Powers onboard electronics directly.
- Comprehensive Control Features: Provides forward, reverse, and brake functions.
- Durable Construction: High-temperature, flexible silicone wires ensure durability.
- SimonK Firmware: Pre-installed firmware for optimized performance.
- Bidirectional Operation: Supports seamless forward and reverse movements.
- Thermal Protection: Prevents overheating for longevity.
Price Info
Price including GST Product Details
The Electrocraze 85A is a high-performance brushless motor controller designed to meet the demanding needs of RC enthusiasts and hobbyists. Firstly, it operates within a voltage range of 7.2V to 24V, providing versatility for various applications. Furthermore, with impressive current handling capabilities, it can sustain 85A for up to 40 seconds and 100A for up to 10 seconds, ensuring robust performance under intense conditions.
Moreover, the Electrocraze 85A includes a Battery Eliminator Circuit (BEC), allowing it to power onboard electronics directly. Additionally, its control features include forward, reverse, and brake functions, providing comprehensive maneuverability and control.
In addition to its technical specifications, the Electrocraze 85A is compact and lightweight, measuring 60mm x 35mm x 18mm and weighing only 70 grams. It also utilizes high-temperature, flexible silicone wires, ensuring durability and reliable performance even under high-stress conditions. Whether you're upgrading your RC vehicle or building a custom project, the Electrocraze 85A offers the reliability and performance you need.
Specs:
- Motor type: Brushless
- Voltage range: 7.2 – 24V
- Continous Current handling: 85A
- Peak Current handling: 100A
- Battery Eliminator Circuit (BEC): Yes
- Control: Fwd/Rev/Brake
- Dimensions (mm): 62 x 38 x 21

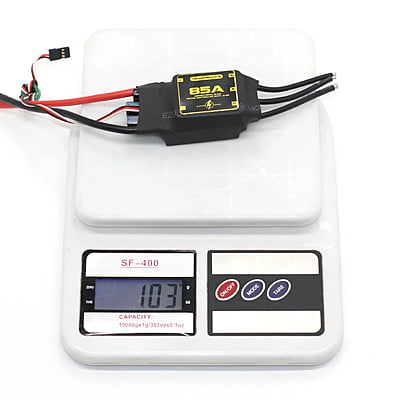

- Weight (g): 108
- Wire type: High temp. flexible silicone
Package includes:
1 x ELECTROCRAZE 85A BLDC ESC (REVERSIBLE)
Important Note:
When using two Electrocraze 85A Bidirectional Brushless Motor Controllers (SimonK) with inbuilt BEC functions in the same receiver, it’s important to prevent both BECs from powering the receiver simultaneously. Multiple BECs supplying power to the same circuit can create voltage regulation issues and may potentially damage the receiver or the motor controllers.
To handle this:
- Disable one BEC:
Disconnect the red wire (positive wire) from the receiver connector of one of the Electrocraze 85A motor controllers. This disables the BEC function for that specific controller, ensuring that it does not supply power to the receiver. The other Electrocraze 85A controller will continue powering the receiver via its BEC. - Keep ground and signal wires connected:
Make sure both Electrocraze 85A controllers’ ground (black wire) and signal (white or yellow wire) wires remain connected to the receiver. This will allow both controllers to receive control signals from the receiver without power conflicts.
This way, you ensure that only one BEC is supplying power to the receiver, preventing interference or potential damage to your components.
