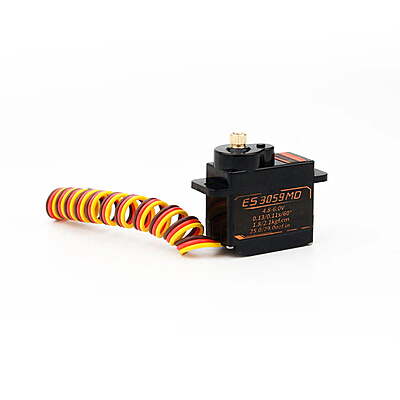

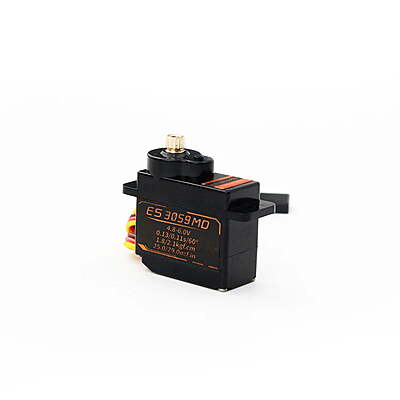

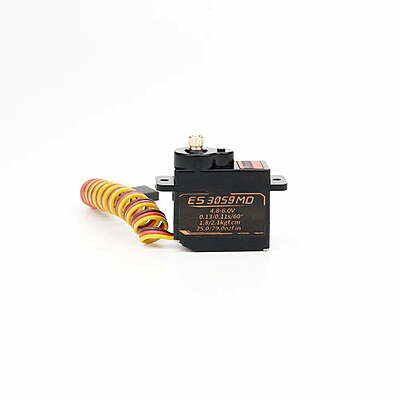

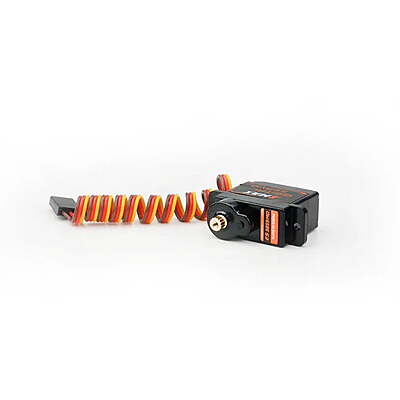

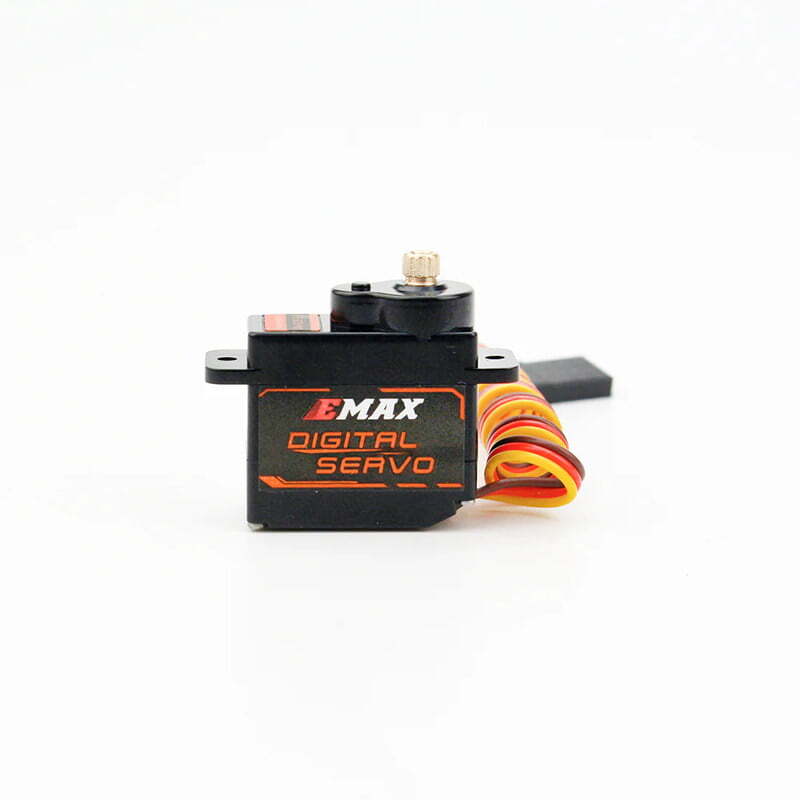

EMAX ES3059MD 12g Metal Gear Digital Servo
Features:
Lightweight Build: Only 12.3g, ideal for compact setups
Fast Response: 0.11 sec/60° @ 6.0V
High Torque: 2.1 Kg.cm @ 6.0V
Hybrid Gearing: Durable 3 metal + 3 plastic gear system
Wide PWM Range: 500–2500μs for broad compatibility
Digital Precision: Counter-clockwise rotation with accuracy
360° Capability: Suitable for continuous rotation applications
Performance (4.8V / 6.0V):
Speed: 0.13 / 0.11 sec/60°
No Load Current: 250mA / 300mA max
Stall Torque: 1.8 / 2.1 Kg.cm max
Max Current: 0.8A / 1.0A
Idle Current: 7.4mA (both)
The EMAX ES3059MD is a compact and efficient micro digital servo, ideal for RC aircraft, helicopters, and robotic applications. With a lightweight design, precise digital control, and durable metal/plastic gear combination, it delivers high accuracy and quick response. It's designed to work smoothly within PWM control systems, supporting wide pulse width ranges and offering solid torque and speed performance.
Specs:
Brand: EMAX
Model: ES3059MD
Weight: 12.3g ± 0.5g
Dimensions: Compact micro size (see datasheet)
Connector Type: JR
Connector Wire Length: 250 ± 8mm
Gear Type: 3 metal + 3 plastic gears
Bearing: No bearing
Flower Head: 15T spline
Extreme Angle: 360°
Control Specifications
Control System: PWM
Operating Travel: 90° ± 8° (at 1000–2000 μs)
Neutral Position: 1500 μs
Rotation Direction: Counterclockwise (1500–1900 μs pulse)
Pulse Width Range: 500–2500 μs
Maximum Travel: 180° ± 10° (500–2500 μs)
Working Environment
Operating Temperature: -10°C to +55°C
Storage Temperature: -20°C to +65°C
Applications: Mini/micro RC airplanes and helicopters, Lightweight UAVs and drones, Robotic arms and precision motion control, DIY automation systems, Remote camera tilt/pan platforms

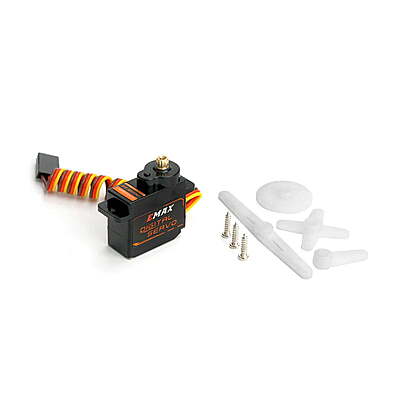

Package Includes:
1 × EMAX ES3059MD Digital Servo
1 × Accessory pack (servo horns, screws)
