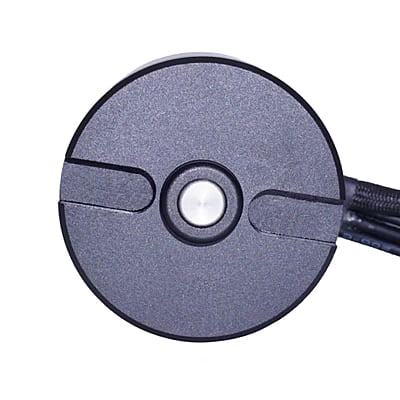

Flipsky 5065 270KV 1550W BLDC Electric Skateboard Motor

The Flipsky 5065 270KV 1550W BLDC Electric Skateboard Motor features an Internal PCB with 120 Degree Hall Effect Sensors, ensuring precise control and responsiveness.

Additionally, with the flexibility to be used with or without a sensor, sensorless operation is the most common choice for riders. Moreover, to optimize performance with VESC, VESC Sensor wires are required.

Furthermore, crafted from high-quality Lamination Japan steel, the stator ensures durability and efficiency. Equipped with 16awg high strand silicone wire and 4.0mm gold bullet connectors, this motor guarantees reliable power delivery.

Additionally, both sensor and sensorless modes are supported, offering versatility to accommodate various riding preferences.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.

Specs:

• Max Power: 1550 Watts

• Max Current: 80 Amps

• No-load Current: 1A 10V

• Max Volts: 41.5V

• Lipo: 3S-8S (11.1V-29.6V)

• Max Torque: 4Nm

• Motor Resistance: 64mΩ

• Weight: 0.99 lb / 0.45 kg

• Motor length: 65mm

• Motor diameter: 50mm

• Shaft: Diameter 8mm, 20mm

• Length: 3x3x15mm keyway slot.

• Motor Wire: 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male.

• Number of poles: 14

•  Wire configuration:

• Blue（Heat shrinkable film） = A

• Black （Heat shrinkable film）= B

• Yellow （Heat shrinkable film）= C

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch

• Internal PCB with 120 Degree Hall Effect Sensors.

• Motor can be used with or without a sensor. Sensorless operation is most common.

• VESC Sensor wires required to use with VESC.

•  Wire configuration:

• Red = 5v

• Blue = A

• Yellow = C

• Green = B

• Black = GND

• White =Temp

What's Our Product Features:

• Stator: Lamination Japan steel

• 16awg high strand silicone wire with 4.0mm gold bullet connectors.

• Both support sensor and sensorless mode!

Drawing:

Package Includes:

1 x Flipsky 5065 270KV 1550W BLDC Electric Skateboard Motor

3 x Bullet Connectors

1 x Machine Key
