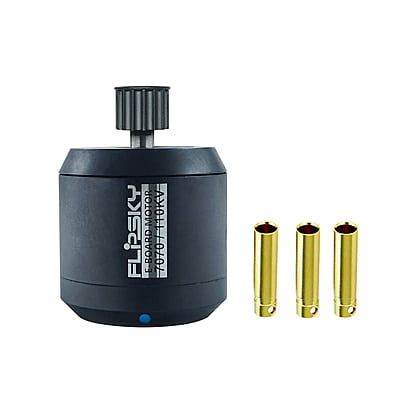

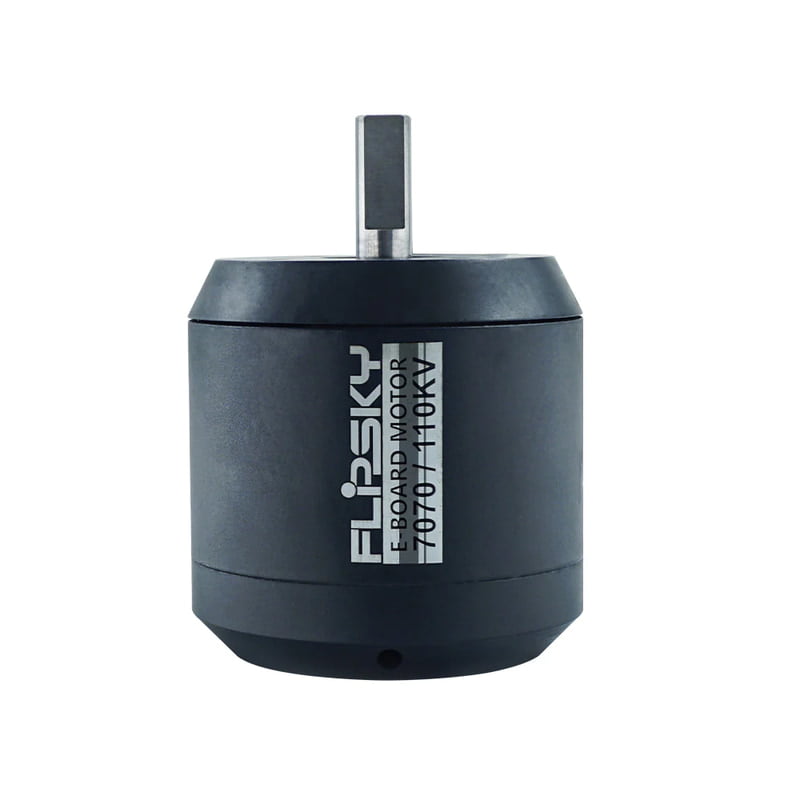

Flipsky 7070 Sensored Outrunner Brushless DC Motor
₹13,499.00
- High Power Output: 4200W for robust performance.
- Precise Control: Sensors ensure accurate operation.
- Versatile Voltage: Compatible with 6S to 18S setups.
- Potent Torque: 9.5 N.M for strong performance.
- Durable Construction: Battle-hardened design for resilience.
- Wide Applications: Ideal for skateboards, robotics, etc.
- Efficient Cooling: Prevents overheating during use.
- Easy Installation: User-friendly design for hassle-free setup.
- Sensored Technology: Enhances motor efficiency and performance.
KV
Choose Quantity
Product Details
The Flipsky Sensored Outrunner Brushless DC Motor 7070 4200W is engineered for top-tier performance. With a maximum power output of 4200W and a motor KV rating of 110KV, it delivers potent torque and speed.
Operating at voltages ranging from 6 to 18S and capable of handling a maximum current of 100A, this motor offers versatility for various applications.
Equipped with sensors for precise control, it ensures smooth and efficient operation. With a maximum torque of 9.5 N.M, it’s ready to power your projects with reliability and strength.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Max power: 4200W
- Motor KV: 110KV & 170KV
- Max Current: 100A
- Voltage: 6-18S
- Max torque: 9.5 N.M

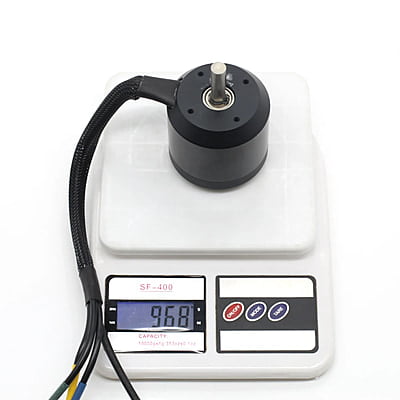

- Weight: 1.08KG
- Internal resistance: 0.055ohm
- Motor structure: 12N/14P
- Diameter *Length (mm): 70*70
- Shaft (mm): 10mm/D-Shaft/Round Shaft
- Bullet Connector: 4mm
- Keyway (mm): 3x3
- Sensor: Yes
Drawing:

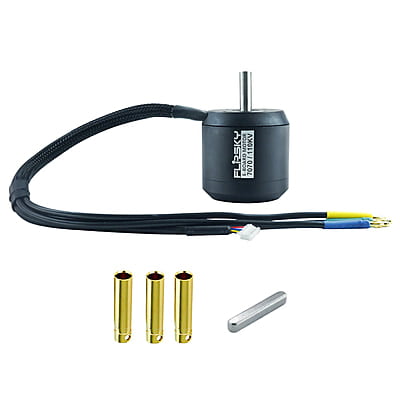

Package Includes:
1 x Flipsky 7070 Sensored Outrunner Brushless DC Motor
1 x Pulley
2 x Grubs
1 x Packet of Bullet Connectors & Machine Key
