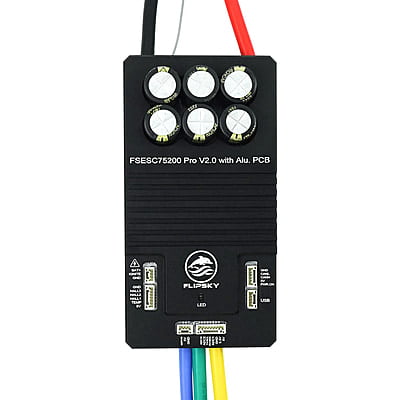

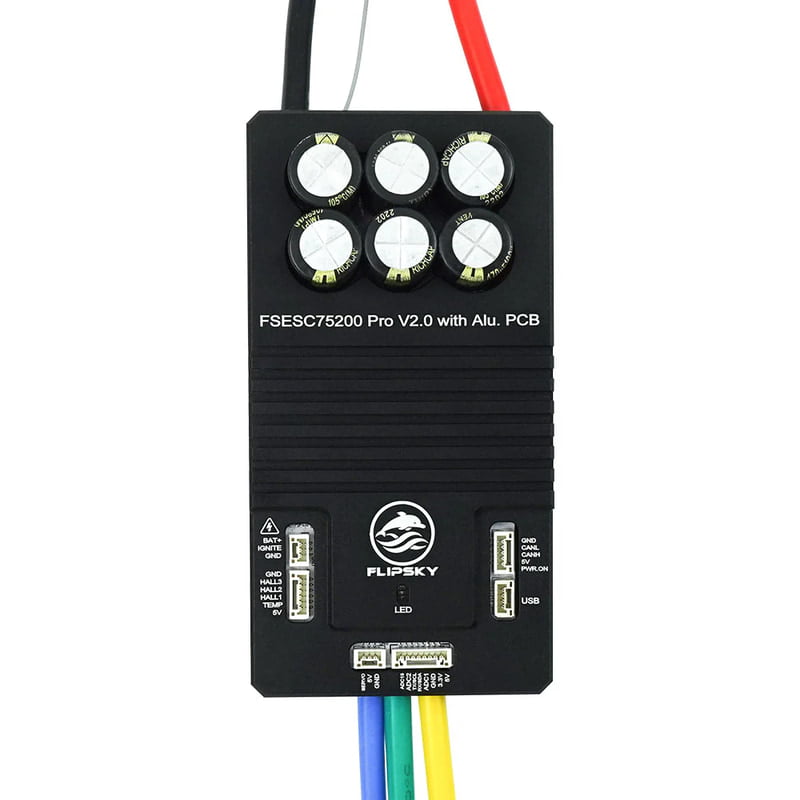

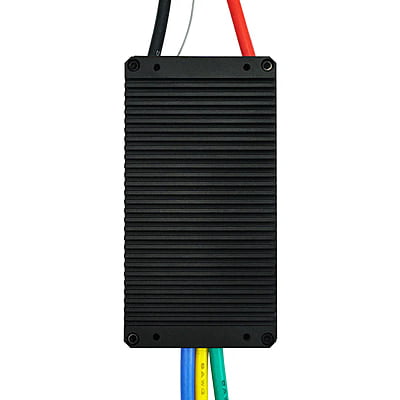

Flipsky 75200 Pro V2.0 With Aluminum PCB Based on VESC

The Flipsky 75200 Pro V2.0 VESC is a versatile motor controller designed for high-performance applications. Running on firmware 6.02 with upgrade support, it operates at voltages from 14V to 84V, making it compatible with 4-20S setups. It delivers continuous current up to 200A (50V) or 150A (75V), with burst capacity reaching 300A. The controller supports multiple modes including DC, BLDC, and FOC (sinusoidal), with an ERPM of up to 150,000.

Featuring communication ports like USB, CAN, UART, SPI, and IIC, it is compatible with various sensors such as ABI, HALL, AS5047, and AS5048A. It supports sensorless operation, and regenerative braking, and is fully programmable via VESC_TOOL.

Its compact size (130x68x41mm), robust 8 AWG motor wires, phase filters, and red power switch button is ideal for demanding setups.

If you're planning to build a combat robot, be sure to check out our recommended setup blog.

Specs:

• Firmware: 6.02, supports firmware upgrade

• Voltage: 14-84V (safe for 4-20S)

• Continuous current: 50V/200A; 75V/150A

• Burst: 300A

• BEC: 5V@1A

• Support Modes: DC, BLDC, FOC (sinusoidal)

• ERPM: 150000

• Communication Ports: USB, CAN, UART, SPI, IIC

• Supported Sensors: ABI, HALL, AS5047, AS5048A

• Input Source Support: PPM, ADC, NRF, UART

• Supported Sensorless: Yes

• Regenerative capacity: Yes

• Programmable via VESC_TOOL: Yes

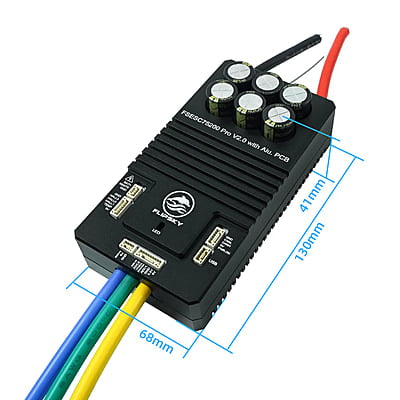

• Size: 130x68x41mm

• Motor/power wire size: 8 AWG

• Phase Filter: Yes

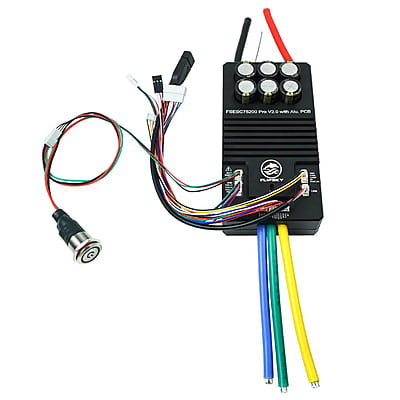

• Power Switch Button: Red
