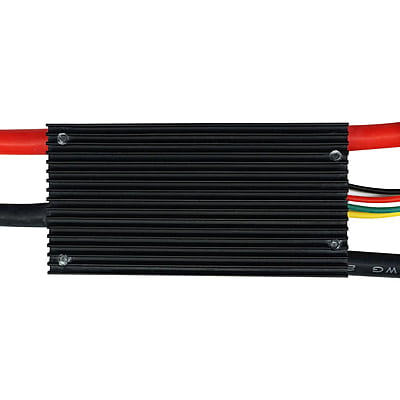

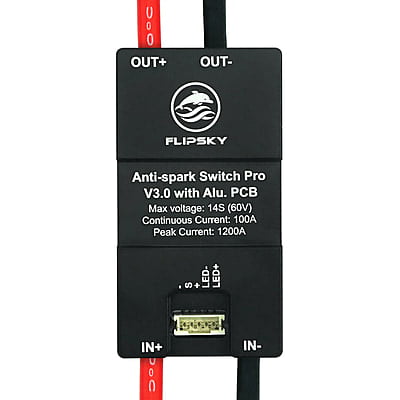

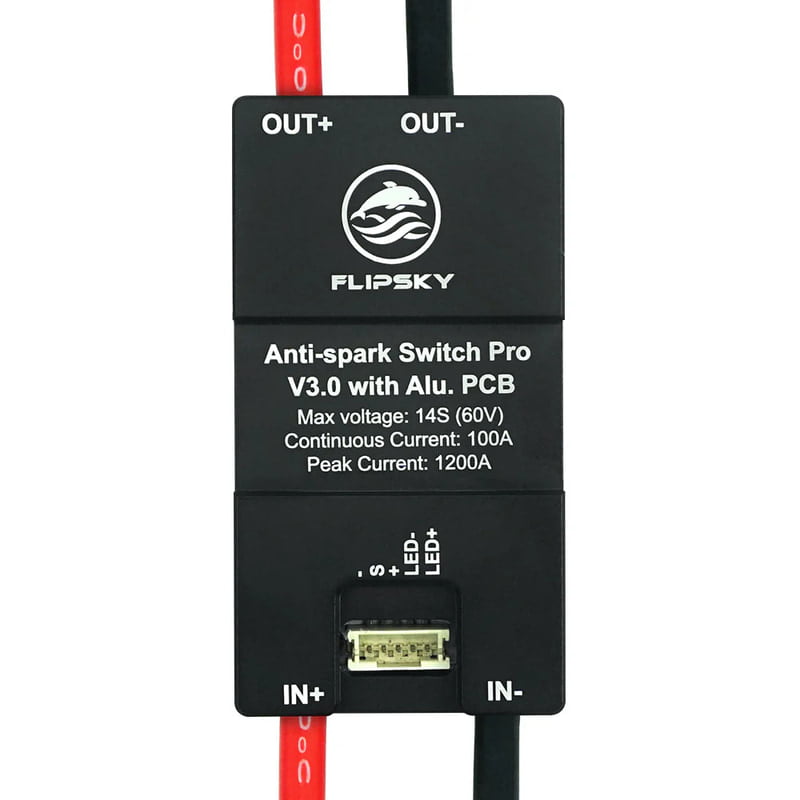

Flipsky Antispark Switch Pro With Aluminum PCB/CASE 200A
₹6,999.00
Features:
- Antispark Technology: Prevents sparks during connections.
- Integrated BMS Compatibility: Works with Battery Management Systems.
- Low Voltage Drop: Minimizes voltage loss.
- Temperature Protection: Prevents overheating.
- Safety Features: Overcurrent and short-circuit protection.
Price Info
Price including GST Choose Quantity
Product Details
The Flipsky Antispark Switch Pro is engineered for high performance and durability. It features HYG015N10NS1TA MOSFETs and supports a voltage range of 3S-14S (12V-60V). additionally, this model offers a maximum current of 200A—recommended with a larger heat sink—and a continuous current of 100A with an aluminum PCB/case (60A with heatsink).
Moreover, It can handle a theoretical burst current of 800A. The Pro V3.0 comes in two versions: with heatsink and heat shrink (42.2mm x 33mm x 26.6mm, 12AWG wire) and with an aluminum PCB/case (72mm x 37mm x 16.2mm, 8AWG wire), both featuring a robust 6-layer, 3oz copper PCB.
Specs:
- Version: V3.0
- Mosfets: HYG015N10NS1TA
- LED button diameter: 16mm
- Voltage range: 3S-14S (12V-60V)
- Max current: 200A (It is better to increase to a bigger heat sink)
- Continuous current: 100A (With Aluminum PCB/case V3.0),60A (with heatsink)
- Burst current: 800A (theoretical current)
- PCB thickness: 6 layer*3oz copper="18oz" copper
- Pro V3.0 Dimensions (with heatsink and heat shrink): 42.2mm*33mm*26.6mm (12AWG Wire)
- With Aluminum PCB/case V3.0 Dimensions: 72mm*37mm*16.2mm (8AWG Wire)
Package Includes:
1 x Flipsky Antispark Switch Pro
1 x Connector Cable
* Important note:
The LED button is by default inserted in the switch in shipping status, DO NOT power on the switch without the LED button connected. Make sure the switch is off before applying power.
