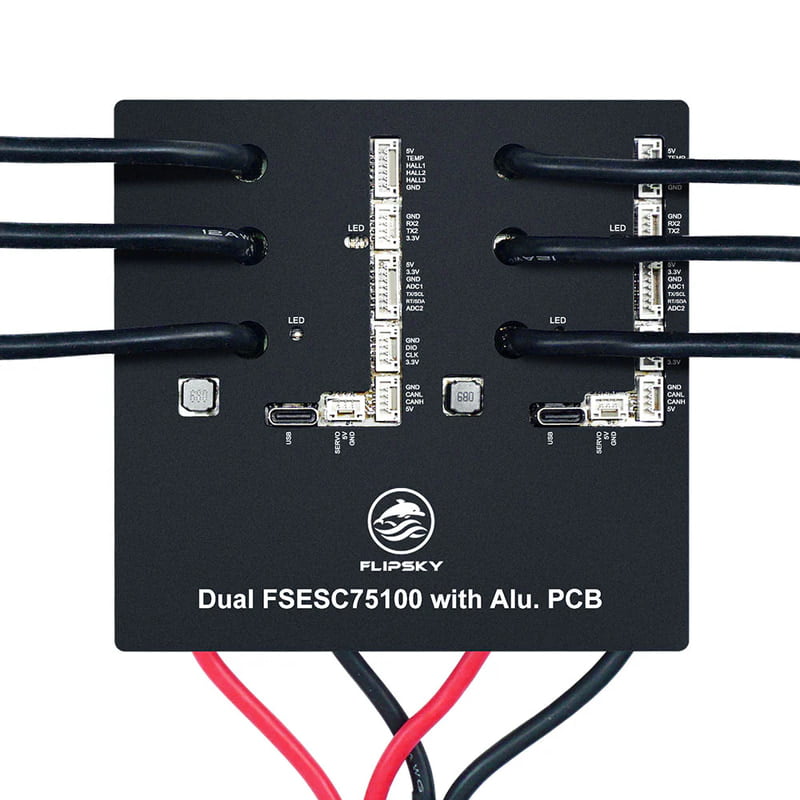

Flipsky Dual 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
₹26,499.00
Price Info
Price including GST Choose Quantity
Product Details
The Flipsky Dual 75100 VESC is a powerful and compact electronic speed controller (ESC) designed for high-performance electric vehicles and robotics applications. Measuring L107mm x W103mm x H18.5mm, it supports a wide voltage range of 14-84V (4-20S safe) and delivers up to 100A continuous current per single motor, with a maximum dual current of 200A, depending on mounting and ambient temperature.
Equipped with the latest firmware, the Dual 75100 offers programmable features, regenerative braking, and compatibility with BLDC square wave and FOC sine wave control modes. It includes BEC 5V@1A, supports sensors such as ABI, HALL, AS5047, and AS5048A, and offers multiple control interfaces through USB, CAN, and UART.
Additionally, it supports PPM, ADC, NRF, and UART input methods, making it a versatile choice for advanced users. Ideal for those seeking reliability and performance, the Dual 75100 is built with 12AWG wire and is highly programmable to meet the specific needs of your project.
Specs:

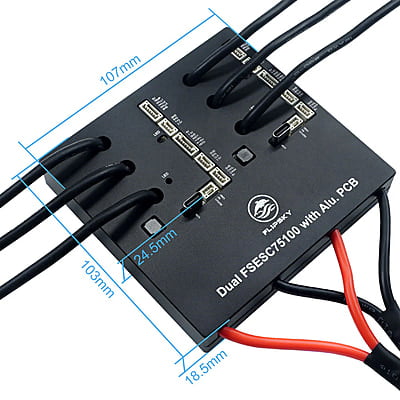

- Dual 75100 Size: L107mm*W103mm*H18.5mm
- Voltage: 14-84V (4-20S safe)
- Current: continuous max 100A single, dual continuous max 200A
- BEC: 5V@1A
- Firmware: latest (firmware update supported)
- ERPM: 150000
- Control Interface Ports: USB, CAN, UART
- Supported Sensors: ABI, HALL, AS5047, AS5048A
- Input Set Support: PPM, ADC, NRF, UART
- Wire Size: 12AWG
- Phase Filter: No
- Programmable: Yes
- Regenerative Capacity: Yes
- Support BLDC square wave mode control and FOC sine wave mode
Important Note:
Please be careful to limit the Absolute Maximum Current below 250A.
Warm Tips:
- It is recommended to keep firmware 5.2 from factory ship, as the new firmware upgrade may damage the ESC.
- Phase filtering is not available for Flipsky ESC75100 and 75200.
- Please turn off the phase filter function and choose "false" in vesc_tool when using firmware version 5.3 or above (VESC_TOOL 3.01).
- Without turning off the phase filter, it will result in ESC damage.
- Do not restore the default parameters when using the wizard interface.
Diagram (Wiring & Details):

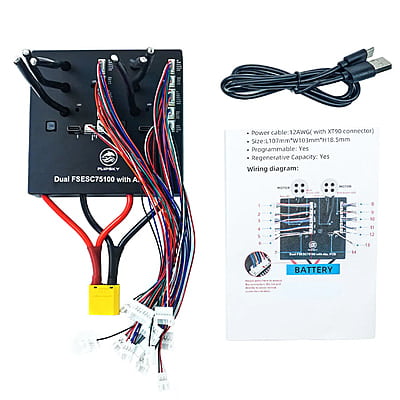

Package Includes:
1 x Flipsky Dual 75100 VESC
1 x USB Cable
1 x Connector Cable
1 x User Manual Page
