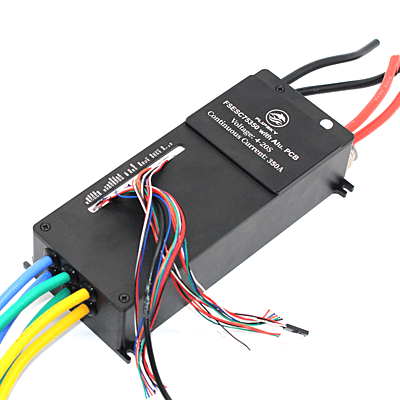

Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With Aluminum Case Water Cooling Enclosure For E-Foil Fighting Robot Surfboard AGV Robot

TheFlipsky FSESC 75350 84V High Current VESC is a robust and versatile controller tailored for a wide range of applications, including E-Foils, Fighting Robots, Surfboards, and AGV Robots.

Encased in a durable aluminum housing with a water-cooling enclosure, this ESC ensures reliable performance even in challenging environments. With a voltage range of 14-84V (safe for 3-20S battery configurations), it offers flexibility for various power systems.

Moreover, capable of handling continuous currents of up to 350A at 50V and 250A at 75V, and with a maximum current rating of 800A, it provides ample power for demanding tasks.

Furthermore, supported sensors include ABI, HALL, AS5047, and AS5048A, enabling precise motor control and feedback. Additionally, with an ERPM range of up to 150,000 and a phase filter for enhanced stability, this ESC delivers precise control across a wide range of speeds.

Furthermore, It also supports multiple input sources including PPM, ADC, NRF, UART, and PAS, and features communication ports such as USB, CAN, UART, SPI, and IIC for seamless integration into complex control systems.

Moreover, operating at a CPU adaptation frequency of 168MHz with a 32F405 CPU, it ensures fast and efficient processing of control signals. Users can customize RPM, current, voltage, and power limits to suit specific application requirements.

Lastly, with an IP67 waterproof rating, the Flipsky FSESC 75350 is built to withstand water exposure, making it ideal for marine and outdoor applications where reliability and durability are essential.

Specs:

• Voltage: 14-84V (safe for 3-20S)

• Continuous Current: 50V/350A,75V/250A

• Max Current: 800A

• Supported sensors: ABI, HALL, AS5047, AS5048A

• ERPM: 150000

• Phase filter: Yes

• Motor wire: 8AWG

• Power cable: 8AWG

• Input source: PPM, ADC, NRF, UART, PAS

• Communication ports: USB, CAN, UART, SPI, IIC

• CPU adaptation frequency: 168MHz (with 32F405)

• Configurable RPM, current, voltage and power limits

• Waterproof level (with water cooling enclosure): IP67

• Size: 200*94.6*50mm (Including the height of water pipes and electrolytic capacitors)

• Weight: 1.74 kg
