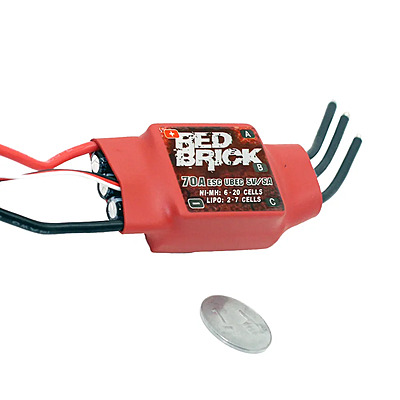

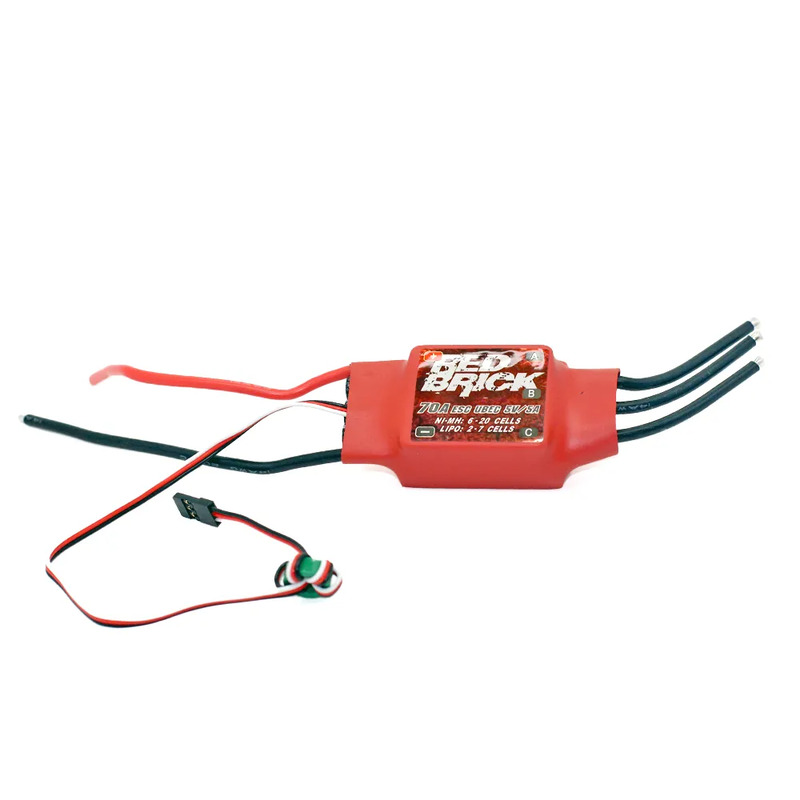

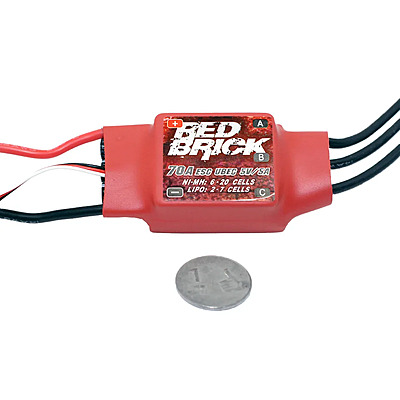

HobbyKing Red Brick (2~7S) 70A ESC V2
Features:
- Smooth, Linear Throttle Response: Precise control and seamless acceleration.
- Powerful, High-Performance MCU: Unrivaled reliability and responsiveness.
- Multiple Self-Protection Functions: Comprehensive safety features included.
- Programmable via Throttle Stick: Customize settings effortlessly (See Manual Tab).
The HobbyKing Red Brick 70A ESC, a powerhouse of performance tailored for your RC hobby needs. Designed to handle intense demands, this ESC boasts a Constant Current rating of 70A with a Max Burst capability of up to 90A, ensuring steady power delivery even in the most demanding situations.
Versatility is key with the Red Brick 70A, accommodating input voltages ranging from 2S to 7S (7.4V to 25.9V), making it compatible with a wide array of battery setups. Whether you're running a 2-cell or a 7-cell configuration, this ESC has you covered.
Equipped with a reliable 5V/5A BEC (Battery Eliminator Circuit), it provides a steady power supply to your receiver and servos, ensuring consistent performance throughout your flights or drives. Measuring a compact 60x35x18mm and weighing in at just 70g, this ESC offers high performance without adding unnecessary bulk to your setup.
With its JR Type servo lead compatibility, installation is a breeze, allowing you to get up and running quickly with minimal hassle. Whether you're into RC airplanes, cars, boats, or any other hobby that requires precise control of electric motors, the HobbyKing Red Brick 70A ESC is a reliable choice that delivers power, performance, and peace of mind.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Current: 90A Input
- Constant Current: 70A Max Burst
- Voltage: 2~7S (7.4~25.9), 6~20
- Weight: 70g
- Servo Lead: JR Type
- NiCd/NiMH BEC: 5V/5 A
- Dimensions: 60x35x18mm
