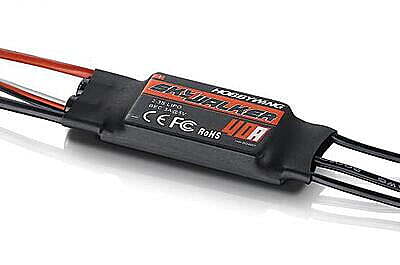

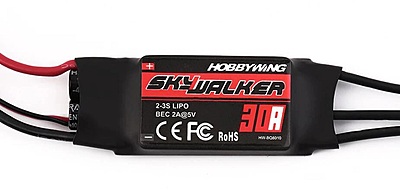

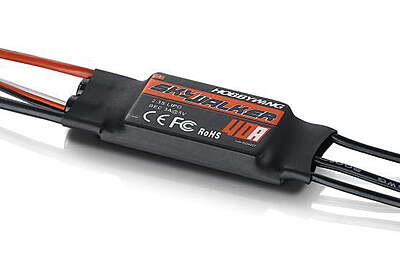

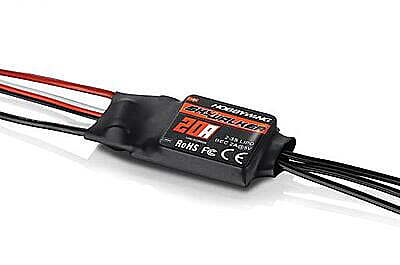

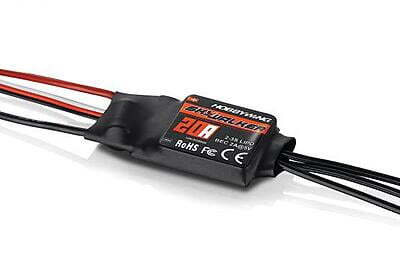

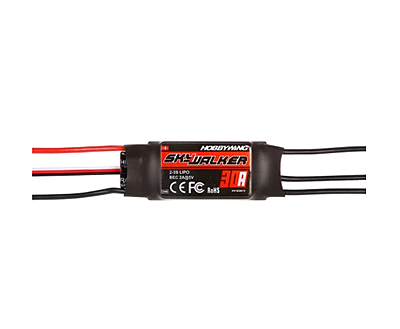

HOBBYWING Skywalker ESC
Features:
High-Performance Control: Advanced microprocessor for precise motor management.
Efficient Throttle: DEO technology ensures smooth response and efficiency.
Stable Power: Built-in UBEC supplies consistent power to the receiver.
Safety Features: Low voltage, overheat, and signal loss protection.
Customizable: Supports multiple programming methods.
Battery Support: Compatible with LiPo and NiMH batteries.
Brake Options: Normal and reverse brake modes for flexible landing.
Lost Model Alarm: Search mode with audible alert to locate aircraft.
Quick Setup: Easy installation and calibration.
Durable Build: Reliable design for long-lasting RC aircraft performance.
Reliable and efficient, the HOBBYWING Skywalker ESC series is engineered for RC airplanes and fixed-wing aircraft. Featuring a high-performance processor and integrated UBEC, it ensures smooth throttle response and precise motor control. Multiple protection features safeguard your system, making it ideal for hobbyists seeking dependable flight performance.
Specs:
Manufacturer: HOBBYWING
Brand: HOBBYWING
20A ESC:
Continuous Current: 20A
Peak Current (10s): 40A
Input Voltage (LiPo): 2–3S
BEC Output: 5V / 3A (Linear)
Size: 45 × 23 × 8 mm
Weight: 19 g
Input Wires: 16 AWG
Output Wires: 18 AWG
Output Connectors: 3.5 mm female
30A ESC:
Continuous Current: 30A
Peak Current (10s): 50A
Input Voltage (LiPo): 3–4S
BEC Output: 5V / 3A (Linear)
Size: 60 × 25 × 8 mm
Weight: 33 g
Input Wires: 14 AWG
Output Wires: 16 AWG
Output Connectors: 3.5 mm female
40A ESC:
Continuous Current: 40A
Peak Current (10s): 60A
Input Voltage (LiPo): 3–4S
BEC Output: 5V / 5A
Size: 60 × 25 × 8 mm
Weight: 36 g
Input Wires: 14 AWG
Output Wires: 16 AWG
Output Connectors: 3.5 mm female
Package Details:
1x HOBBYWING Skywalker Brushless Electronic Speed Controller (specific amperage model)
1x User Manual / Instruction Guide
