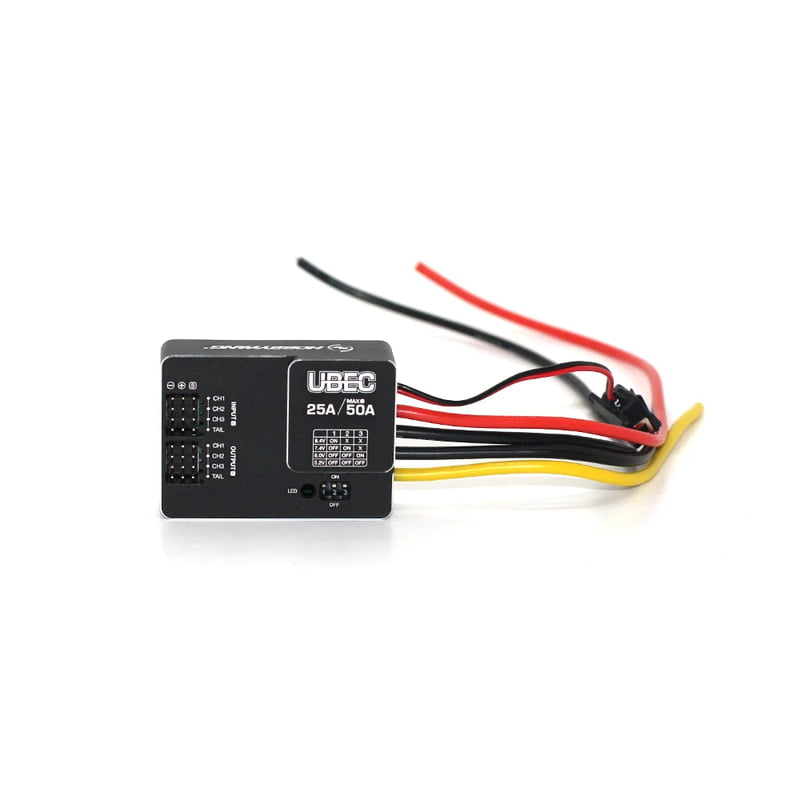

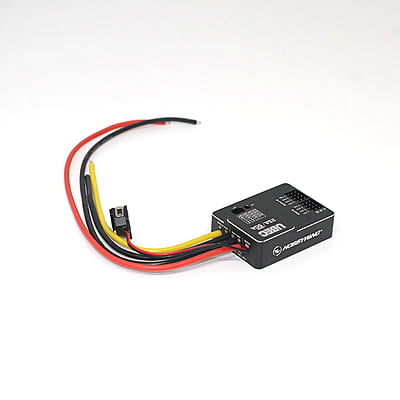

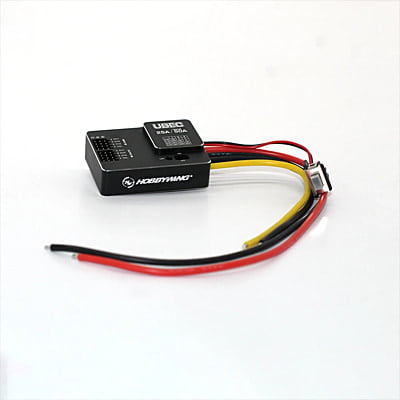

Hobbywing UBEC 25A HV V1

The Hobbywing UBEC 25A, a versatile voltage regulator designed to meet hobbyists' and enthusiasts' demands, serves reliably for various applications. Firstly, offering both linear and switch mode operation, it provides flexibility.

Additionally, supporting high voltage as well as regular switch mode operation, it adapts to various power requirements. Moreover, with a continuous current rating of 25A and a peak current of 50A, it handles demanding loads easily.

Furthermore, the input voltage range is wide, accommodating 3S to 18S LiPo batteries for the main power supply. Additionally, supporting 1S to 2S LiPo batteries for the backup power supply provides versatility. Moreover, output voltage is adjustable, offering options to suit different devices.

For easy installation, the UBEC comes with input and output wires. Additionally, while connectors aren't included, compatibility with various types ensures flexibility. Lastly, reliable, versatile, and efficient, the Hobbywing UBEC 25A HV powers hobby projects precisely.

Specs:

• Part Number: 30606000

• Mode: Linear Mode/Switch Mode

• Voltage: High Voltage (HV), Switch mode

• Continuous/Peak Current: 25A/50A

• Input Voltage (Main Power Supply): 3S~18S LiPo (9V80V)

• Input Voltage (Backup Power Supply): 1S~2S LiPo (3-9V)

• Output Voltage: 5.2V/6.0V/7.4V/8.4V (Adjustable)

• Input Wires (Main Power Supply): Red-16AWG-270mm1 / Black-16AWG-270mm1

• Output Wires: 3P Vertical Pin Header (60-strand PVC wire with two 3P-JR male connectors-100mm*4 included)

• Input Connectors: None

• Output Connectors: None

• Size (mm): 5540x217x6

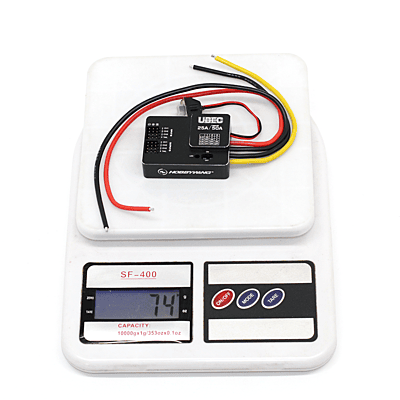

• Weight: 74g
