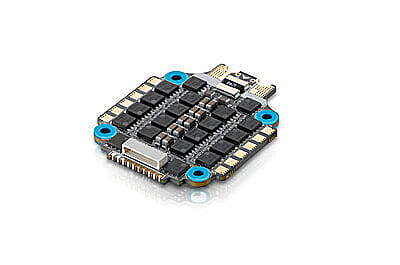

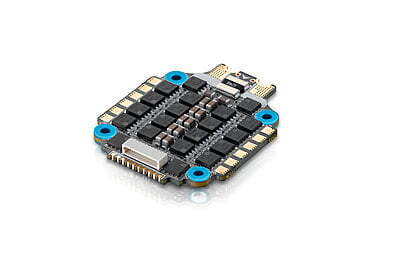

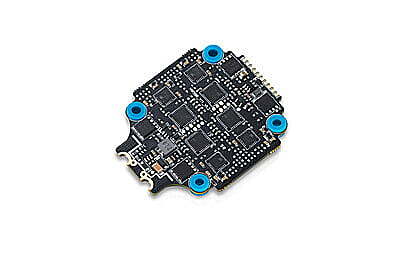

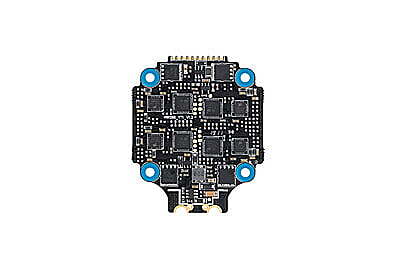

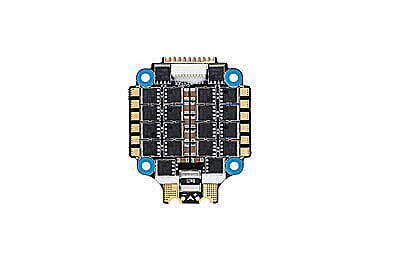

HOBBYWING XRotor FPV G2 4in1 ESC - 65A
Features:
4-in-1 Design: Combines four high-performance ESCs on one board.
Wide Input Range: Supports 3–6S LiPo batteries.
Advanced Firmware: Pre-flashed with BLHeli_32.
Digital Protocols: Compatible with DShot150/300/600/1200.
High-Quality Components: Uses premium MOSFETs for strong current handling.
Efficient Cooling: Integrated heatsink for excellent heat dissipation.
Compact & Lightweight: Perfect for FPV frames.
Monitoring: Built-in voltage and current sensing.
Protection: Over-current and over-temperature safeguards.
Easy Setup: Clean wiring and simple installation for quads.
Unleash extreme power for your FPV racing drone with the HOBBYWING XRotor FPV G2 4-in-1 ESC. Available in 45A or 65A, this compact unit integrates four high-performance ESCs onto one board, featuring BLHeli_32 firmware, DShot1200 support, and robust 6S compatibility for ultimate agility and speed.
Specs:
Manufacturer: HOBBYWING
Brand: HOBBYWING
Processor: High-performance 32-bit ARM MCU (e.g., STM32F051)
Signal Support: DShot150/300/600/1200, ProShot1000, MultiShot, OneShot125, OneShot42, PWM
Telemetry Output: ESC Telemetry supported via BLHeli_32
Capacitor: High-quality electrolytic capacitors for filtering
Protection Features: Over-current protection, Over-temperature protection, Throttle signal loss protection, Startup protection.
Firmware Upgrade: Supported via BLHeliSuite32
Continuous Current: 65A per channel
Peak Current (10s): 80A per channel
Input Voltage: 3–6S LiPo
BEC Output: No BEC (OPTO)
Firmware: BLHeli_32
Dimensions: 43 × 40 × 8 mm (or slightly larger)
Mounting Holes: 30.5 × 30.5 mm
Weight: 20–25 g (approx.)
Package Includes:
1x HOBBYWING XRotor FPV G2 4-in-1 ESC (65A model)
1x XT60/XT90 power cable (with capacitor if applicable)
1x Signal cable for flight controller connection
1x User Manual / Wiring Diagram
