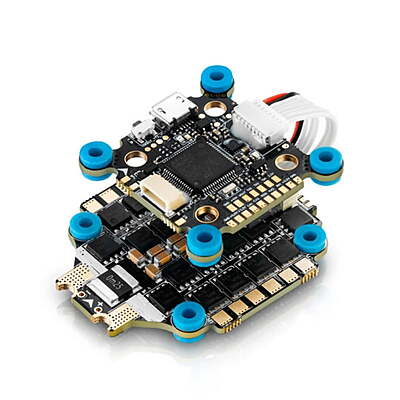

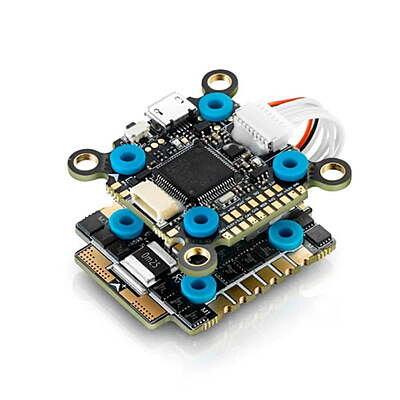

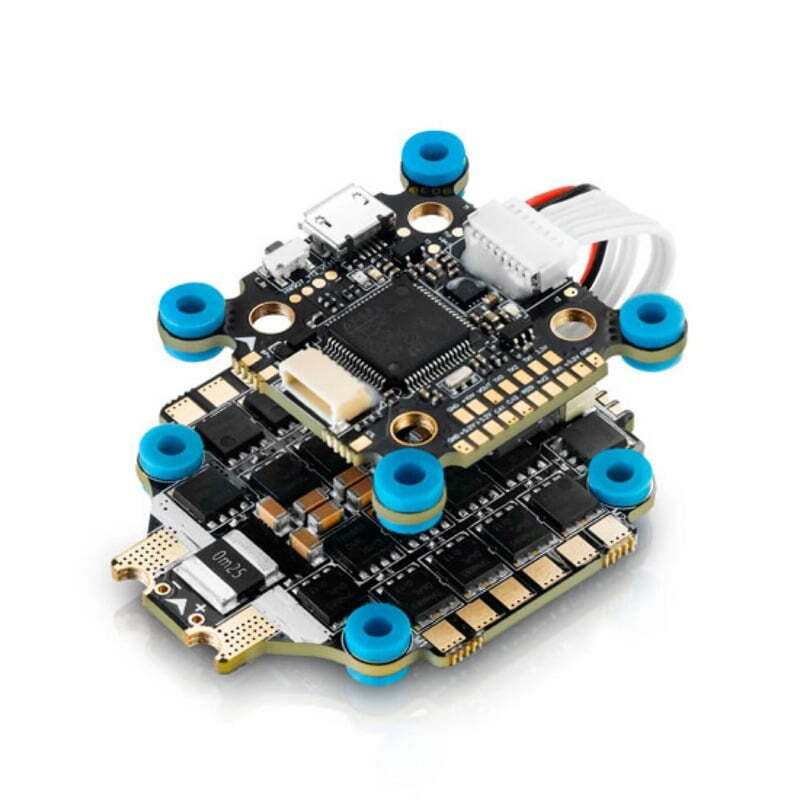

HOBBYWING XRotor Micro F7 FC & 45A ESC

Build your ultimate FPV racing drone with the HOBBYWING XRotor Micro ESC & FC Combo. This integrated stack features a high-performance flight controller paired with a robust 4-in-1 ESC, offering precise control, lightning-fast response, and simplified wiring. Compact and powerful, it's perfect for competitive FPV pilots and custom drone builds.

Specs:

• Brand: HOBBYWING

• Manufacturer: HOBBYWING

• Processor: STM32F722 (216 MHz)

• IMU (Gyroscope/Accelerometer): MPU6000 (connected via SPI)

• Barometer: BMP280

• OSD: Integrated Betaflight OSD

• BEC Output: 5V @ 1.5A , 10V @ 1.5A (for VTX/Camera)

• UART Ports: 5 UARTs

• I2C Port: 1×

• DShot Support: DShot150 / DShot300 / DShot600

• Mounting Options: 20×20 mm and 30.5×30.5 mm (adapters typically included)

• Continuous Current: 45A per channel (45A variant)

• Peak Current (10s): 60A per channel (45A variant)

• Input Voltage: 3–6S LiPo

• BEC Output: None (OPTO design; requires external BEC for receiver/FC if needed)

• Firmware: BLHeli_32 (32-bit ARM MCU)

• Signal Protocol Support:

  • DShot150 / DShot300 / DShot600 / DShot1200

  • ProShot1000

  • MultiShot

  • OneShot125

• Telemetry: ESC Telemetry supported via BLHeli_32

• Mounting Holes: 30.5 × 30.5 mm

• Stack Dimensions (L × W × H): Approx. 40 × 36 × 10 mm

• Stack Weight: Approx. 20–25 g (excluding wires)

Package Includes:

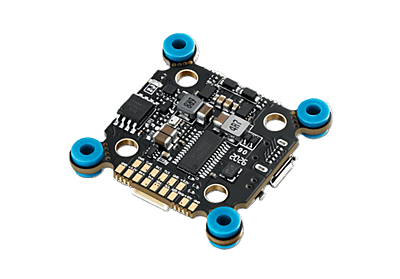

1x HOBBYWING XRotor Micro F7 Flight Controller

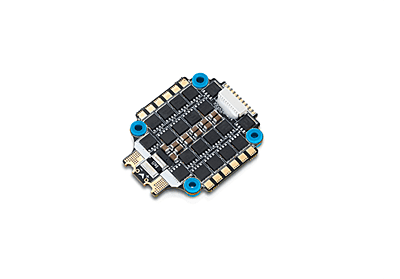

1x HOBBYWING XRotor Micro 4-in-1 ESC (45A or 65A, as per chosen combo)

1x XT60/XT90 power cable with capacitor

1x FC to ESC connection cable (usually a flat ribbon cable or direct solder pad)

1x Set of signal wires and connection cables

1x Mounting hardware (e.g., nylon standoffs, nuts, grommets)

1x User Manual / Wiring Diagram
