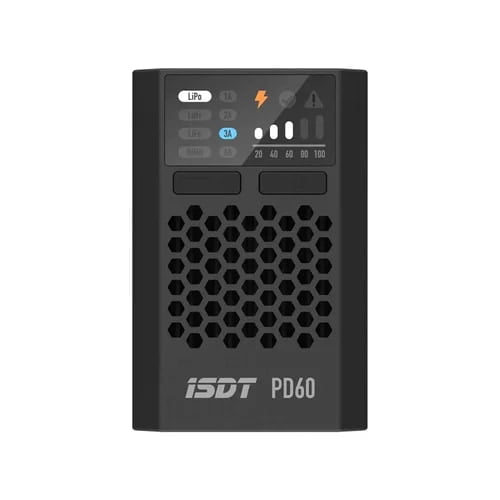

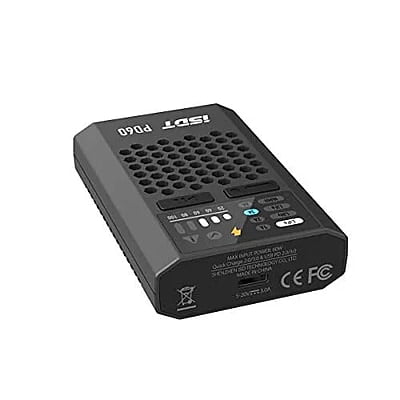

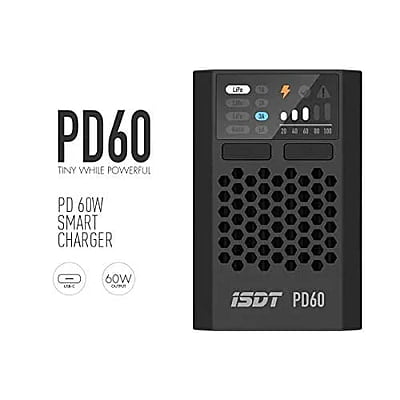

ISDT PD60 60W/6A 1-4s LiPo Balance Charger
Features:
- USB-C Power Input: Supports firmware upgrades via USB-C.
- Compact & Portable: Small, fast charging, fits in bags easily.
- ISDT Smart Chargers: Ergonomic, efficient, and user-friendly.
- Silent Heat Dissipation: Aluminum radiator uses natural convection for quiet cooling.
The ISDT PD60 is a compact and efficient 60W/6A LiPo balance charger designed for 1-4S LiPo batteries. With a model number PD60, it operates on an input voltage range of DC 5V-20V, providing an output voltage between DC 1.0V-20V.
It supports a maximum input current of 3A and charging current options of 1A, 2A, 3A, and 6A, delivering up to 60W of charging power. The balance current is 0.5A per cell.
This charger is compatible with LiFe, LiHV, LiPo (1-4S), and NiMH/Cd (1-12S) batteries and supports quick-charge protocols like PD 2.0/3.0 and QC 2.0/3.0 (except for 5V/1A power input).
It includes safety features like abnormal voltage alarms and incorrect cell count setting alarms. The charger operates within a temperature range of 0-40°C and can be stored in temperatures between -20°C and 60°C.
Weighing just 87g and measuring 56x85x21mm, the PD60 is lightweight and portable, featuring an XT60 connector for easy use with compatible devices.
Specs:
- Model No.:PD60
- Input voltage: DC 5V-20V
- Output voltage: DC 1.0V-20V
- Max Input Current: 3A
- Charging Current: 1A/2A/3A/6A
- Max Charging Power: 60W
- Balance Current: 0.5A/Cell Max
- Support Quick-Charge: PD2.0/3.0,QC 2.0/3.0(Not supported 5V/1A power supply input)
- Support Battery Types and Cell Count: LiFe/LiHV,LiPo 1-4S,NIMH/Cd 1-12S
- Abnormal Voltage Alarm: Support
- Incorrect Cell Count Setting Alarm: Support
- Working temperature: 0-40°C
- Storage temperature: -20-60°C
- Dimension: 56x85x21mm
- Connector: XT60
- Weight: 87g
Safety Precautions:
- Keep the charger away from sources of heat and damp environments during use. Ventilation is necessary for heat dissipation.
- Please do not allow children to operate the charger.
- Do not attempt to charge incompatible batteries with this battery charger. Attempting to do so as can cause damage to the charger or battery, or even result in disastrous consequences.
