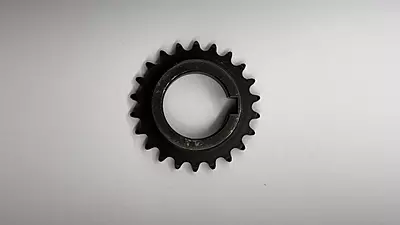

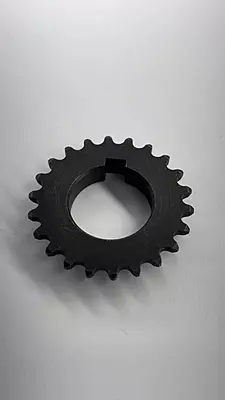

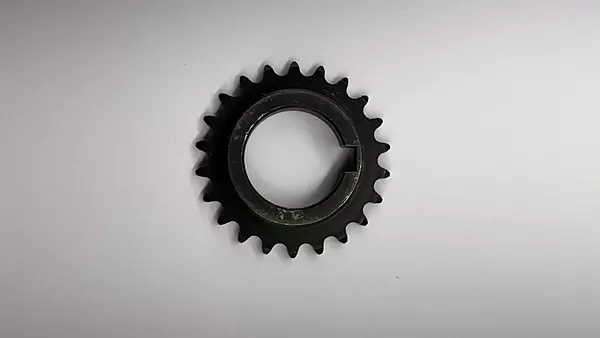

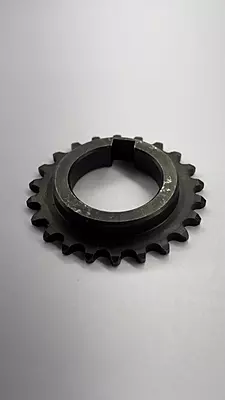

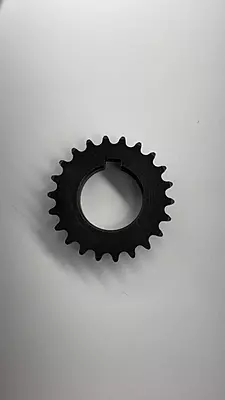

BBox 22 Teeth 1/4" Pitch Chain Sprocket (23mm ID)
The BBox 22T Chain Sprocket is a precision-machined power transmission component, designed for efficient torque transfer in robotics and mechanical drive systems. Built from high-grade EN8 alloy steel, this sprocket offers excellent strength, durability, and resistance to wear, making it ideal for both high-performance and long-term applications.
With a 1/4" (6.35 mm) pitch compatibility, it ensures smooth and accurate engagement with standard chains, reducing power loss and improving overall system efficiency. The 22 teeth configuration provides an optimal balance between speed and torque, making it suitable for a wide range of robotic and DIY projects.
The sprocket features a 23 mm inner diameter (ID) along with a 6 x 3 mm keyway, ensuring a secure and slip-free connection to the shaft. This allows stable operation even under varying load conditions, which is crucial for combat robots and precision-driven mechanisms.
Key Features:
- Tooth Count: 22 Teeth – optimized for balanced speed and torque output
- Chain Compatibility: 1/4" pitch (#25 chain standard) for precise engagement
- Material: High-strength carbon steel construction for durability and long life
