MABUCHI MOTOR RZ-735VA-9517
₹749.00
Out of stock
Features:
- High Speed: Provides rapid rotation for efficient performance.
- High Power: Delivers ample power for various applications.
- Large Torque: Generates strong force for demanding tasks.
- Voltage Range: Operates efficiently within a range of 12V to 18V.
- Reliable Brand: Manufactured by MABUCHI, known for quality motors.
Price Info
Price including GST Product Details
The MABUCHI RZ-735VA-9517 Motor is engineered to excel across a broad voltage spectrum, operating efficiently within a range of 6V to 20V. With a nominal voltage of 18V, it ensures consistent performance under typical operating conditions.
At its peak efficiency, this motor achieves a speed of 17,990 revolutions per minute (r/m) while drawing a current of 20.9 Amperes (A). Its impressive torque output of 149 milliNewton-meters (mN.m) enables it to tackle demanding tasks with ease.
With an output power of 281 Watts (W) and a maximum current rating of 156A, this motor delivers reliable and robust performance, making it suitable for a variety of applications across industries.
If you're planning to build a combat robot, be sure to check out our recommended setup blog.
Specs:
- Model: RZ-735A-9517
- Operating Range Voltage (V): 6-20
- Nominal Voltage (V): 18
- No load speed (r/m): 20400
- No load Current (A): 20.9
- Speed At Maximum Efficiency (r/m): 17990
- Current At Maximum Efficiency (A): 20.9
- Torque (mN.m): 149
- Torque (g.cm): 1523
- Output (W): 281
- Stall Torque (mN.m): 1265
- Stall Torque (g.cm): 12895
- Current (A): 156
- Motor Lenght (mm): 64.4
- Motor Diameter (mm): 42
- Shaft Lenght (mm): ~10
- Shaft Diamater (mm): 5

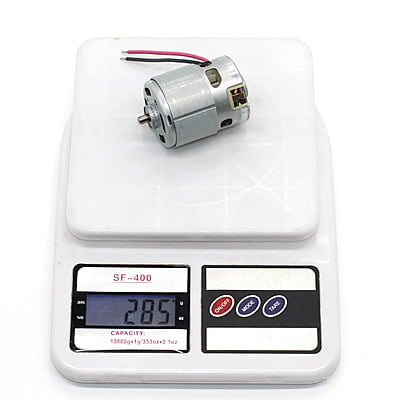

- Weight (g): 290
Drawing:
Package Includes:
1 x MABUCHI MOTOR RZ-735VA-9517 MOTOR
