ODESC V4.2 (56V) Single-Drive High-Current High-Precision Brushless Servo Motor Controller
₹5,499.00
Features:
- High Current Capacity: 120A max, 70A continuous current
- Wide Voltage Range: 8-56V operating range
- Precision Control: STM32F405RGT6 microprocessor
- Efficient Braking: Power resistors and battery recycling
- Robust Design: Suitable for high-performance robotics
- Single-Drive: Ideal for BLDC motor control
Price Info
Price including GST Choose Quantity
Product Details
The ODESC V4.2 (56V) Single-Drive High-Current High-Precision Brushless Servo Motor Controller is a cutting-edge solution designed for controlling Brushless DC (BLDC) motors with precision and efficiency. This controller, equipped with the STM32F405RGT6 microprocessor, offers robust performance in demanding applications. With a maximum current of 120A and a continuous current of 70A, it ensures high-power delivery while maintaining stable operation.
The ODESC V4.2 supports a working voltage range of 8-56V, making it versatile for a wide range of applications. Its braking method, which utilizes power resistors and battery recycling, enhances energy efficiency and prolongs the lifespan of connected systems. Ideal for high-performance robotics and automation, this motor controller delivers exceptional precision and reliability.
Specs:
- Hardware Version: ODESC V4.2
- Drive motor: Brushless DC motor (BLDC)
- Braking method: Power resistors, battery recycling
- Microprocessor: STM32F405RGT6
- Maximum current: 120A
- Continuous current: 70A
- Working voltage: 8-56V

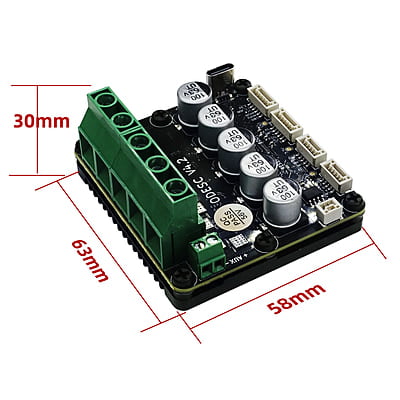

Drawing:

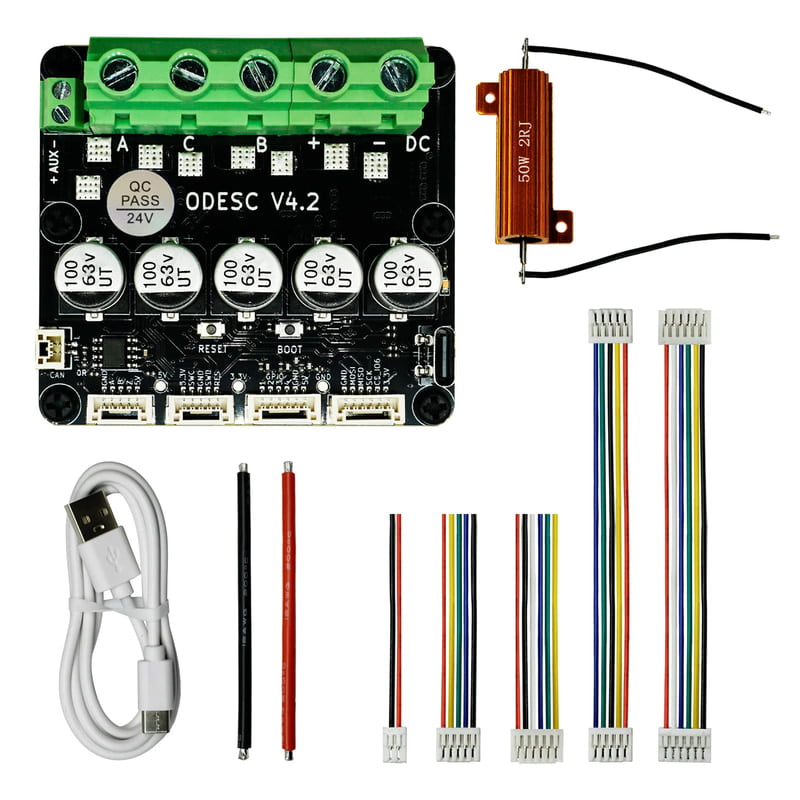

Package includes:
1 x USB Cable
1 x Red Power Input Wire
1 x Black Power Input Wire
1 x ODESC_4.2 Motor Controller Board
1 x High Power Resistor
1 x Connector Cable Set
1 x User Manual Page
