Flipsky ODESC3.6 Optimizes High Performance Brushless Motor High-Power Dual-Drive Controller FOC BLDC based on ODrive
₹10,999.00
Out of stock
Features:
- ODrive Compatibility: Enhanced stability and performance on the ODrive platform.
- USB Connectivity: Enables motor debugging and multi-axis control via USB.
- FOC Support: Smooth motor operation through Field-Oriented Control.
- Encoder Compatibility: Precise control with various encoder support.
Price Info
Price including GST Product Details
The ODESC3.6 Brushless ESC, firstly, designed for optimal performance and versatility in various applications. This hardware marvel, boasting a 4-layer PCB, furthermore, is engineered for seamless integration with the ODrive platform, ensuring exceptional control and reliability.
With an impressive voltage range of 8 to 56 volts, additionally, the ODESC3.6 accommodates diverse power requirements, making it suitable for a wide array of projects. Its robust current handling capabilities allow for continuous operation at 50A, with peak bursts up to 120A, thus ensuring consistent performance under demanding conditions.
Versatility is at the core of the ODESC3.6, meanwhile, as it supports multiple encoder types including Incremental, Absolute, Houle Sensor, AMT102, AMT103, TLB5012, and AS5047. This adaptability enables precise motion control and feedback, which is essential for achieving desired outcomes in various applications.
Safety is paramount, moreover, and the ODESC3.6 incorporates programmable voltage protection mechanisms to safeguard against excessive battery discharge, prolonging battery life and preventing potential damage.
Furthermore, the ODESC3.6 offers a plethora of movement patterns to suit diverse control requirements. Whether it's Speed Mode, Torque Mode, Current Mode, Position Mode, or Trajectory Mode, this ESC delivers unparalleled flexibility, thereby empowering users to tailor control strategies to specific needs.
In essence, to sum up, the ODESC3.6 Brushless ESC represents the pinnacle of performance, versatility, and safety, setting a new standard for motion control solutions in the realm of robotics, automation, and beyond.
Specs:
- Hardware Version: ODESC3.6 Dual Drive
- PCB layer Number: 4 layer
- Applicable Voltage: 8-56V
- Current Parameter: 50A continuous/120A peak
- Support Encoder: Incremental Encoder, Absolute Encoder, Houle Sensor, AMT102, AMT103, TLB5012, AS5047
- Voltage Protection: Programmable Voltage Protection to Prevent Excessive Battery Discharge
- Movement Pattern: Speed Mode, Torque Mode, Current Mode, Position Mode, Trajectory Mode, etc.
- Communication Interface:
- USB: Open-source protocol compatible with PC, Raspberry Pi, and ROS.
- UART: Suitable for embedded devices.
- PWM: Compatible with RC remote control systems.
- STEP/DIRECTION: Interfaces with PLC systems.
- GPIO: Offers general-purpose input/output capabilities.
- CAN: Supports Controller Area Network communication.
- ANALOG INPUT: Accepts analog input signals for versatile control options.

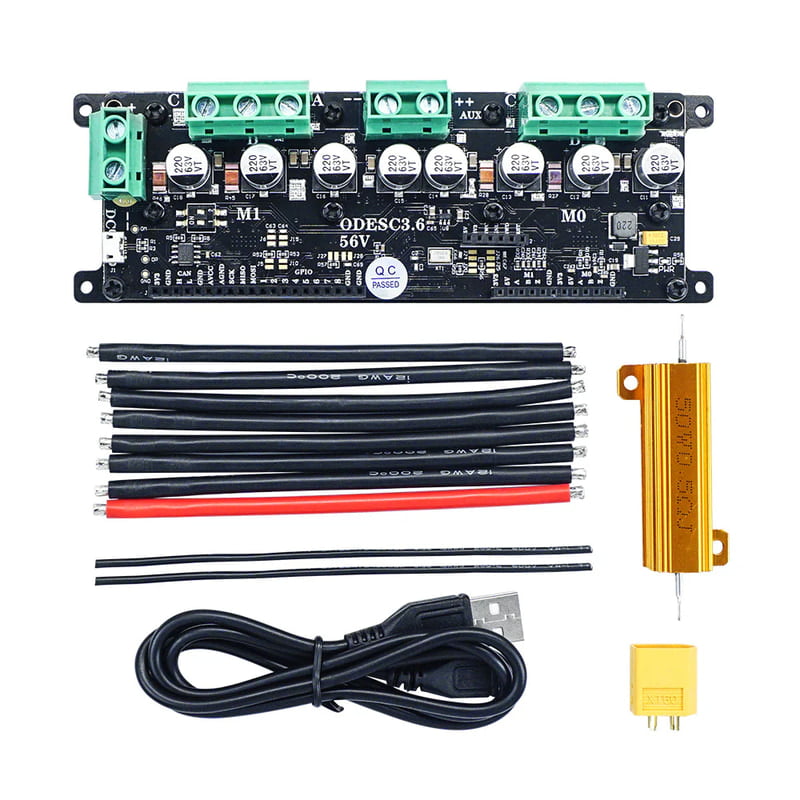

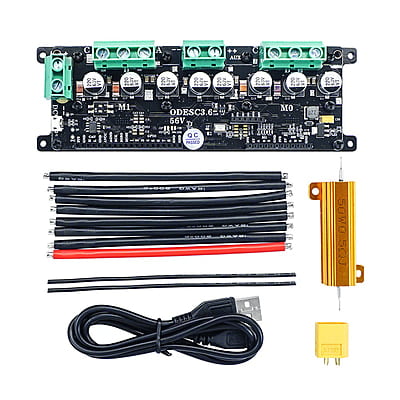

Package Includes:
1 x ODESC 3.6 Motor Controller Board
7 x Black power Wires
1 x Red Power Wire
1 x High- Power Resistor
2 x Black Signal Wires
1 x USB Cable
1 x XT60 Connector
